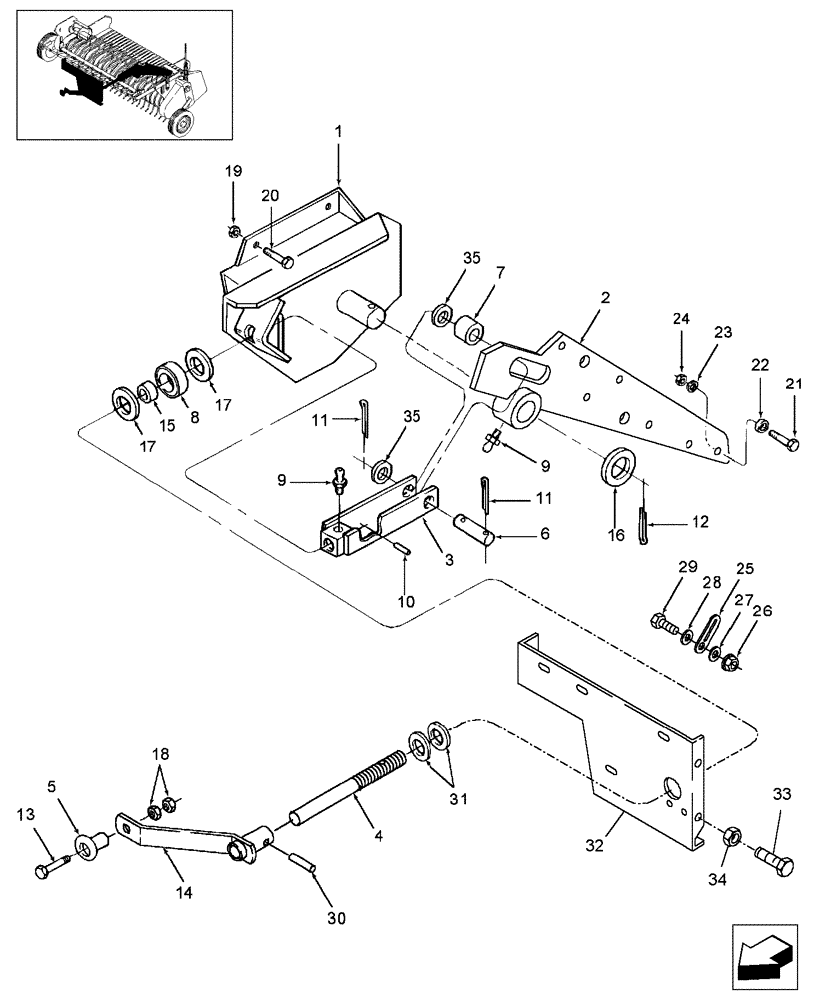

Запчасти Case IH RBX461 (076) - WIDE PICKUP, LIFT CRANK (60) - PRODUCT FEEDING

1

NSS

NOT SOLD SEPARAT

Support, Welded to Main Frame

1шт.

86565389

1шт.

2

86637259

ARM

1шт.

3

86637268

LINK

1шт.

4

86543355

THREADED ROD

1шт.

5

33781

KNOB

1шт.

6

86634564

PIN

1шт.

7

86636631

HUB

1шт.

8

90999

SPACER,25.65mm ID x 50.8mm OD x 15.88mm L

1шт.

9

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

2шт.

10

280315

GROOVED PIN,4.76mm OD x 25.4mm L

1шт.

11

432-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

12

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

13

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

14

86636653

CRANKED HANDLE

1шт.

15

86636652

SPACER

1шт.

16

101406

SPACER

1шт.

17

56867

WASHER

1-7/8" OD

2шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.

19

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

20

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

21

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

22

748303

SPACER

1шт.

23

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

Special, 1-1/4" OD

1шт.

24

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

25

9804832

BAR

1шт.

26

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

27

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

2шт.

28

287129

SPECIAL WASHER

Spacer, 3/8" ID, .294" Thk, Hardened

2шт.

29

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

30

435-5624

GROOVED PIN,3/16" x 1 1/2", Type E

1шт.

31

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

32

86620940

SHIELD

LH

1шт.

33

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

6шт.

34

825-5148

SERRATED NUT,M8, Flg Ser

6шт.

35

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

1шт.
