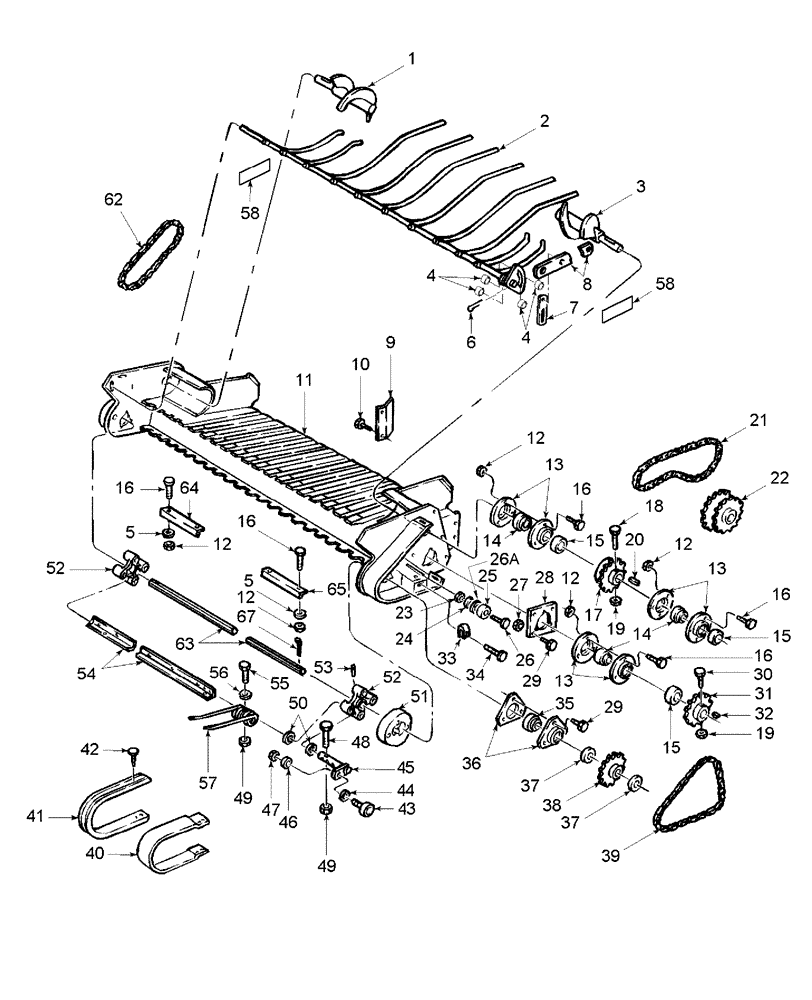

Запчасти Case IH RBX461 (071) - WIDE PICKUP, REEL, REEL DRIVE & WINDGUARD (60) - PRODUCT FEEDING

1

86637289

AUGER

RH

1шт.

2

86634560

ROD ASSY.

1шт.

3

86636663

AUGER

LH

1шт.

4

44612

SPACER

4шт.

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

4шт.

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

5

495-11034

WASHER,5/16", SAE

5шт.

6

86000109

COTTER PIN

1/8" Thick x 3-1/4" Lg

2шт.

7

86634562

CONNECTING LINK

2шт.

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

6шт.

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

4шт.

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

4шт.

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

8

86634563

STRAP

2шт.

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

2шт.

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

1шт.

495-21044

WASHER,3/8"

2шт.

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

9

86634548

DEFLECTOR

2шт.

10

381014

SCREW,Flng, M8 x 16mm

HWH, M8 x 1.25 x 16

8шт.

11

86636656

GUARD ASSY.

1шт.

12

825-5148

SERRATED NUT,M8, Flg Ser

19шт.

13

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

Bearing

10шт.

14

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

3шт.

15

455102R21

COLLAR

1шт.

16

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

13шт.

17

86636650

DRIVEN SPROCKET

17T

2шт.

18

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

Cup Pt

2шт.

19

86509499

JAM NUT,3/8"-16, G2

2шт.

20

86628576

KEY

1/4" Sq., x 1-1/4"

2шт.

21

86518073

CHAIN,60H, 82 Links x 19.05mm = 1562.1mm

Roller, #50, 5/8"-pitch, 76 Pitches

1шт.

22

86637270

DRIVEN SPROCKET

1шт.

23

829-1412

NUT,M12, Cl 10.9

3шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

25

86514717

IDLER WHEEL

Nylon

2шт.

26

811-12060

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

3шт.

495-21069

WASHER,5/8"

1шт.

26a

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

2шт.

27

825-51410

FLANGE NUT,M10, Flg Ser

20шт.

28

86636899

MOUNTING PLATE

1шт.

29

905-10020

BOLT,Hex Flg, M10 x 20mm

18шт.

30

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

2шт.

31

86637156

DRIVEN SPROCKET

22T

1шт.

86509499

JAM NUT,3/8"-16, G2

2шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

Cup Pt

2шт.

32

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

33

Spring

2шт.

34

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

35

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

2шт.

36

86620026

FLANGED BEARING

4шт.

37

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

6шт.

38

86637251

DRIVEN SPROCKET

44T

2шт.

39

309046

CHAIN,#50, 96 Links x 15.88mm = 1524mm

Roller, #50, 96 Pitches, Includes: (1) Roller Link

1шт.

25816

OFFSET LINK

Cotter Pin Type

2шт.

25194

CONNECTING LINK

2шт.

40

86634554

SUPPORT

End Guard

2шт.

41

86618417

GUARD

Pickup

23шт.

42

412093

SELF-TAP SCREW

M6 x 1 x 12

105шт.

43

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

4шт.

44

703960

WASHER

1-1/4" OD, Hardened

4шт.

45

86634547

SHAFT

4шт.

46

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

47

88130

NUT,1/2"-20, GC

4шт.

48

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

16шт.

49

832-46410

NUT,M10 x 1.5, Cl 8

59шт.

50

86634532

WASHER,31.96mm ID x 44.5mm OD x 1.9mm Thk

8шт.

51

86634545

CAM

1шт.

52

86634546

COUPLING

2шт.

53

326210

GROOVED PIN

M8 x 45

2шт.

54

86628669

ANGLE BAR

4шт.

55

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

44шт.

56

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

Heat Treated

48шт.

57

87394242

TORSION SPRING,Coiled, 2 Prong, 186.5mm L

Pickup, Curved, Premium, Standard

48шт.

57

87607074

TINE

Pickup, Curved, Economy, Optional

48шт.

58

86619595

DECAL

Stripe, White & Black

2шт.

62

121202

CHAIN

Roller, #50, 5/8"-pitch, ASA Standard, Riveted Type, 79 Pitches, Includes: (1) Offset Link

1шт.

25194

CONNECTING LINK

Spring Clip Type

1шт.

63

86543385

SHAFT

Hex

1шт.

64

86633239

ANGLE

RH

1шт.

65

86633238

ANGLE

LH

1шт.

66

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

1шт.

67

733-5040

COTTER PIN,M5 x 40

2шт.

68

905-10035

BOLT,Hex Flg, M10 x 35mm

2шт.
