(036[2]) - WIRE HARNESS, ELECTRIC TWINE WRAP, OPERATOR PANEL

Запчасти Case IH RBX461 (036[2]) - WIRE HARNESS, ELECTRIC TWINE WRAP, OPERATOR PANEL (55) - ELECTRICAL SYSTEMS

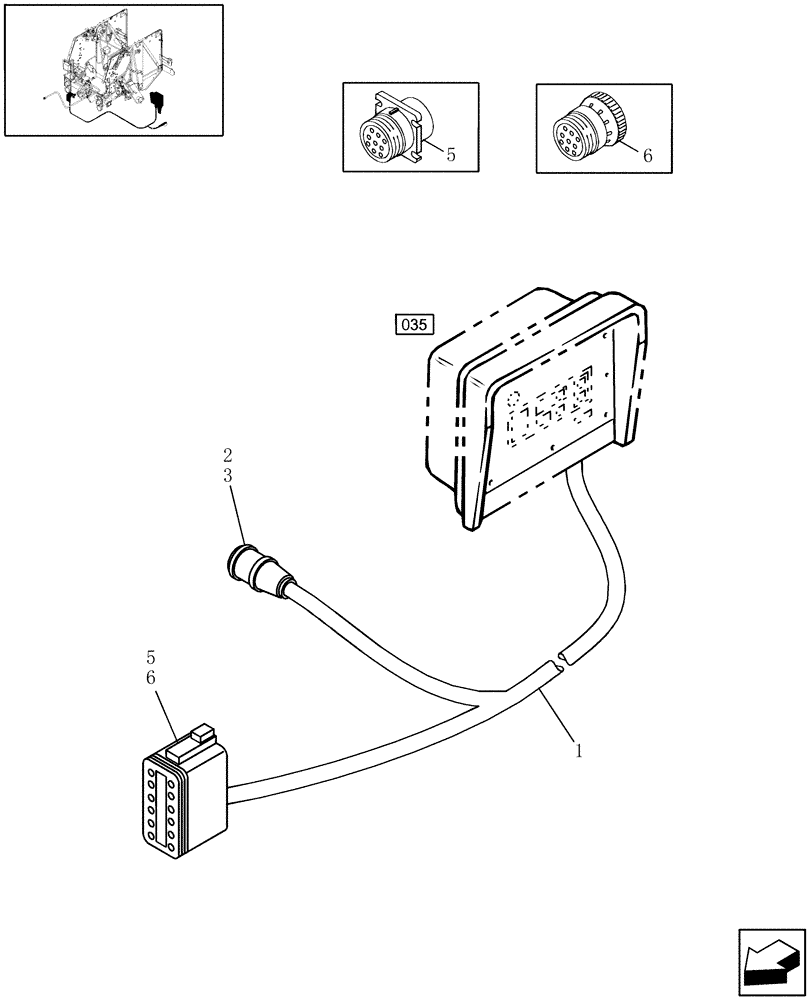

Схема запчастей Case IH RBX461 - (036[2]) - WIRE HARNESS, ELECTRIC TWINE WRAP, OPERATOR PANEL (55) - ELECTRICAL SYSTEMS
5
2
1
6
5
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86622164

HARNESS

Wire, Operator Panel, Electric Twine Wrap

1шт.

Refer to Repair Manual for Service Instructions

1шт.

2

86624245

CONNECTOR, ELEC

CONNECTOR Power

1шт.

3

86624246

CONNECTOR, ELEC

CONNECTOR Clamp

1шт.

4

900401

TERMINAL

2шт.

5

NSS

NOT SOLD SEPARAT

Connector, Tractor, DEU DT06-12SA-P012

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Secondary Lock, DEU W12S-P012

1шт.
