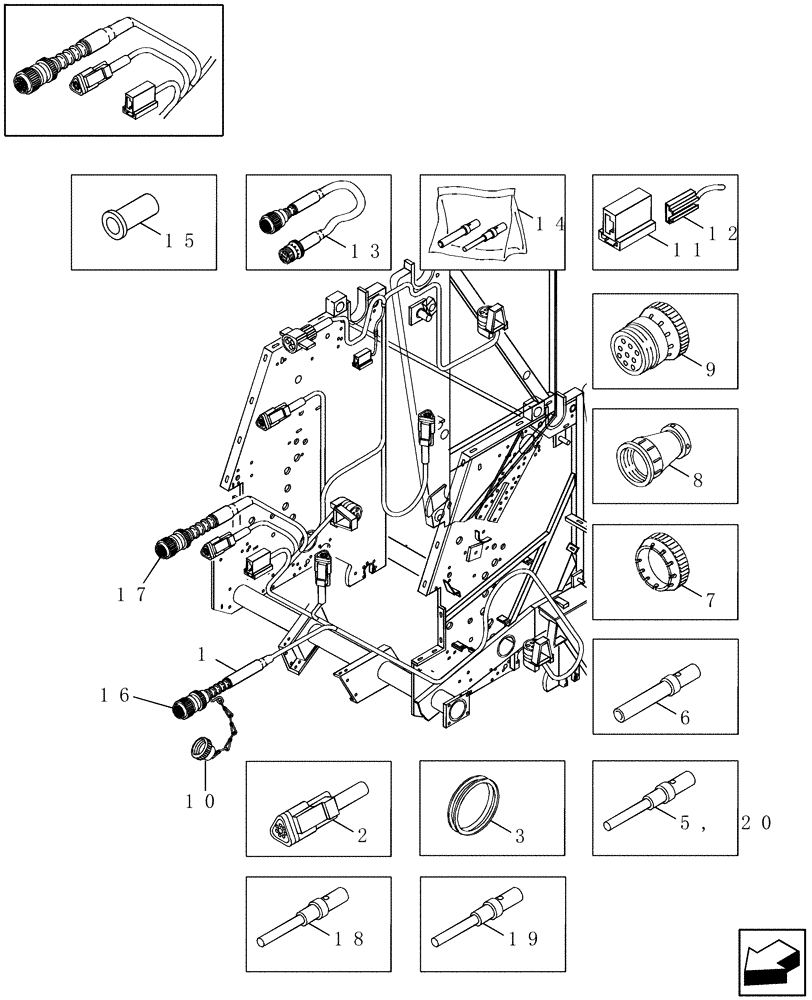

Запчасти Case IH RBX461 (034) - ELECTRICAL, NET-TWINE (55) - ELECTRICAL SYSTEMS

1

86592582

WIRE HARNESS

Net-Twine, Includes: Refs. 2, 3, 5, 11, 15, 12 & 15 - 20

1шт.

2

9842514

KIT

3DT, Includes: Parts listed below

3шт.

9842513

PLUG

Wedge Lock

1шт.

9842512

ELEC CONNECTOR,Female, 16

3S Plug

1шт.

9611173

PLUG

Wedge Lock, For 9611172

1шт.

9611172

WIRE CONNECTOR,16 SAE

3P Recpetacle

1шт.

3

792026

LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk

Split, Int, 1.00"

1шт.

5

900363

TERMINAL

E18, Mates W/ Pin 900364

1шт.

6

900364

TERMINAL CONNECTOR

E18

1шт.

7

9622758

COUPLING RING

9

1шт.

8

850072

COLLAR CLAMP

1шт.

9

9609191

MULTIPOLE CONNECTOR,Female, 9 Pole

9-pin Plug

1шт.

10

788614

PROTECTING COVER,2" OD x 1.7" Long

1шт.

11

248712

BODY

1шт.

12

900613

TERMINAL

E18, Mates W/Pin 900302

1шт.

13

86517891

WIRE HARNESS

Extension

1шт.

Extension for Bale Command (Item 1)

1шт.

14

851769

KIT

Pin

1шт.

Kit contains tools, Terminal Pins & soldering instructions.

1шт.

15

9619682

BUSHING

MS 3420-12

1шт.

16

86564210

MULTIPOLE CONNECTOR,Female, 19 Pole

19SN

1шт.

17

86520117

ELEC CONNECTOR,Male, 16 - 8 SAE

18-cav Pin

1шт.

18

900786

ELEC. TERMINAL PIN,Male, 5 - 8 mm2

1шт.

19

900316

ELEC. TERMINAL PIN,Male, 2 -3.5 mm2

E18, Mates W/ Pin 900302

8шт.

20

900363

TERMINAL

E18, Mates W/ Pin 900364

17шт.
