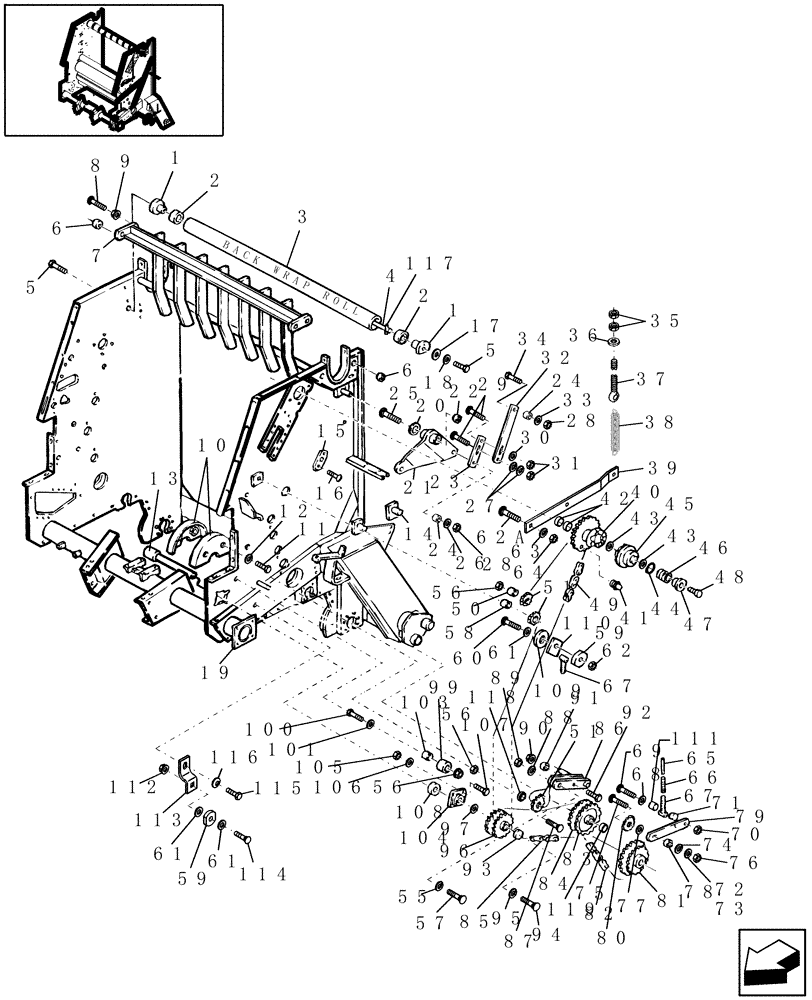

Запчасти Case IH RBX461 (011) - MAIN FRAME, DRIVE & BACK WRAP ROLLER (39) - FRAMES AND BALLASTING

1

86521602

SUPPORT

2шт.

2

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

4шт.

3

9842286

ROLLER

3-1/2", Non-Silage Units

1шт.

3

86517669

ROLLER,101.6mm OD x 1176mm L

3-1/2", Silage Units

1шт.

4

9823371

SHAFT

Includes: Ref. 117

1шт.

5

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

6

86514470

BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L

2шт.

(1) Used In Each Corner of Main Frame

1шт.

7

86637506

GUIDE

Belt

1шт.

8

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

4шт.

9

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

10

86637198

HALF-DISC

Infeed

2шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

12

492-11038

LOCK WASHER,3/8"

4шт.

13

86636672

DRIVE SHAFT

Output, 21.33" Long

1шт.

14

86636753

PIN

Tailgate Latch Pivot

1шт.

Welding Required

1шт.

15

86636891

PLATE

Support

1шт.

16

412093

SELF-TAP SCREW

M6 x 1 x 12

2шт.

17

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

2шт.

18

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

19

NSS

NOT SOLD SEPARAT

FRAME, Main

1шт.

86637093

1шт.

20

134463

WASHER,.030" Thk

1шт.

21

86637016

LINK CONROD

1шт.

86636763

HUB

Spacer, Chain Connector, 4mm ID x 12.7mm O

1шт.

22

9822495

BUSHING,25.5mm ID x 31.82mm OD x 19.5mm L

2шт.

23

86636886

BAR

1шт.

24

768703

BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L

4шт.

25

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

26

495-21044

WASHER,3/8"

1шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

28

825-1410

NUT,M10, Cl 8

1шт.

29

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

1шт.

30

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

31

829-1412

NUT,M12, Cl 10.9

1шт.

32

86636884

BAR

1шт.

33

495-21044

WASHER,3/8"

3шт.

34

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.

36

495-21044

WASHER,3/8"

1шт.

37

183356

EYEBOLT,3/8" - 16 x 10" L

G2, 3/8"-16 x 10-1/8"

1шт.

38

86512547

SPRING,Extension, 1.94" OD x 13 - 1/8" L

Extension

1шт.

39

86624825

ARM

1шт.

40

87032323

SPROCKET

Half & Sprocket, 22T

1шт.

41

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

1шт.

42

86601368

BUSHING

2шт.

43

9808110

WASHER,46mm ID x 60mm OD x 1.64mm Thk

Hardened, M45

2шт.

44

100-11162

SNAP RING,#162, Ext

1шт.

45

87028608

CLUTCH

Half

1шт.

46

86640119

SPRING,Compression, 2.438" OD x 4.5" L

1шт.

47

9829364

CAP COVER

End

1шт.

48

9849862

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

HH, Drilled, G5, 1/2"-13 x 1-1/2"

1шт.

49

9804060

CHAIN,80, 158 Links x 25.4mm = 4013.2mm

RC80, 1"-pitch, 158 Pitches

1шт.

49

9620569

CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L

80K

1шт.

50

86634530

HUB

1шт.

51

NS

NOT SERVICED

SPROCKET 13T, Plastic, Production Only {87050058}

1шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

51

66614

SPROCKET,RC80, 13T

13T,Steel, Service Only, Includes: Bearing 144819C91

1шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

53

280656

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 3 1/4", Gr 5

1шт.

54

434-1044

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

1шт.

55

492-11062

BEARING WASHER,5/8"

2шт.

56

425-1010

NUT,5/8"-11, G5

1шт.

57

280637

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 3", Gr 5

1шт.

58

681659

SPACER

1шт.

59

86584050

IDLER

Chain

2шт.

60

86508756

CARRIAGE BOLT

Carriage, Short Neck, G5, 1/2"-13 x 4"

1шт.

61

495-21056

WASHER,1/2"

1шт.

62

231-4148

NUT,1/2"-13, GB

1шт.

62a

434-1044

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

2шт.

63

492-11062

BEARING WASHER,5/8"

2шт.

64

425-1010

NUT,5/8"-11, G5

2шт.

65

86637258

TUBE,19.05 mm OD x 228.60 mm L

3шт.

66

86618710

SPRING,1-3/8" OD x 8-5/8" L

Compression

2шт.

67

86637254

ROD

2шт.

68

495-21056

WASHER,1/2"

1шт.

69

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

70

232-4148

NUT,1/2"-13, GC

2шт.

71

76615

SPACER

1шт.

72

27318

WASHER,26mm ID x 51mm OD x 1.5mm Thk

.060" Thick

1шт.

73

33298

WASHER,16.7mm ID x 41.3mm OD x 4.78mm Thk

1-5/8"

1шт.

74

492-11062

BEARING WASHER,5/8"

1шт.

75

280667

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

1шт.

76

425-1010

NUT,5/8"-11, G5

1шт.

77

495-11066

WASHER,5/8", SAE

1шт.

78

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

1шт.

79

86637277

ARM

1шт.

80

66614

SPROCKET,RC80, 13T

13T, Includes: Bearing 144819C91

1шт.

81

86637270

DRIVEN SPROCKET

39T, Wide Pickup

1шт.

82

86518073

CHAIN,60H, 82 Links x 19.05mm = 1562.1mm

RC60H, 3/4"-pitch, 82 Pitches

1шт.

83

86637392

DRIVEN SPROCKET

20T, Includes Ref. 119

1шт.

84

86637256

DRIVING SPROCKET

25T

1шт.

85

9804061

CHAIN,80, 84 Links x 25.4mm = 2133.6mm

RC 80, 1"-pitch, 84 Pitches

1шт.

9620569

CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L

80K

1шт.

86

86636671

PLATE

Mounting

1шт.

87

280667

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

1шт.

88

492-11062

BEARING WASHER,5/8"

1шт.

89

425-1010

NUT,5/8"-11, G5

1шт.

90

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

91

86637291

SPACER

1шт.

92

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

93

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

Hardened, 1/2"

4шт.

94

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

95

492-11044

LOCK WASHER,7/16"

1шт.

96

86637248

DRIVEN SPROCKET

18T

1шт.

97

86636633

WASHER,42.86mm ID x 57.15mm OD x 1.52mm Thk

2-1/4" OD

1шт.

99

86514717

IDLER WHEEL

Nylon

1шт.

100

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

1шт.

101

495-21056

WASHER,1/2"

1шт.

102

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

103

86636635

SPACER

1шт.

104

9807783

BEARING ASSY,3.238" ID x 3.73" OD x 1"

Includes: Bearings

1шт.

To Service Bearings, Order Ref. 104 Bearing Housing Assembly

1шт.

105

829-1412

NUT,M12, Cl 10.9

4шт.

106

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

107

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

108

131377

COLLAR

1шт.

109

39856

WASHER,13.49mm ID x 38.1mm OD x 6.35mm Thk

1/2"

1шт.

110

9845608

BLOCK

1шт.

111

86637291

SPACER

2шт.

112

9636698

NUT,1/2"-13, GB

1шт.

113

86637304

BRACKET

1шт.

114

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

1шт.

115

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

116

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

117

838-5526

LOCK PIN,M5 x 26, Slotted

1шт.

118

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

1шт.

119

46962

BUSHING,2" ID x 2.13" OD x 1.25" L

1шт.
