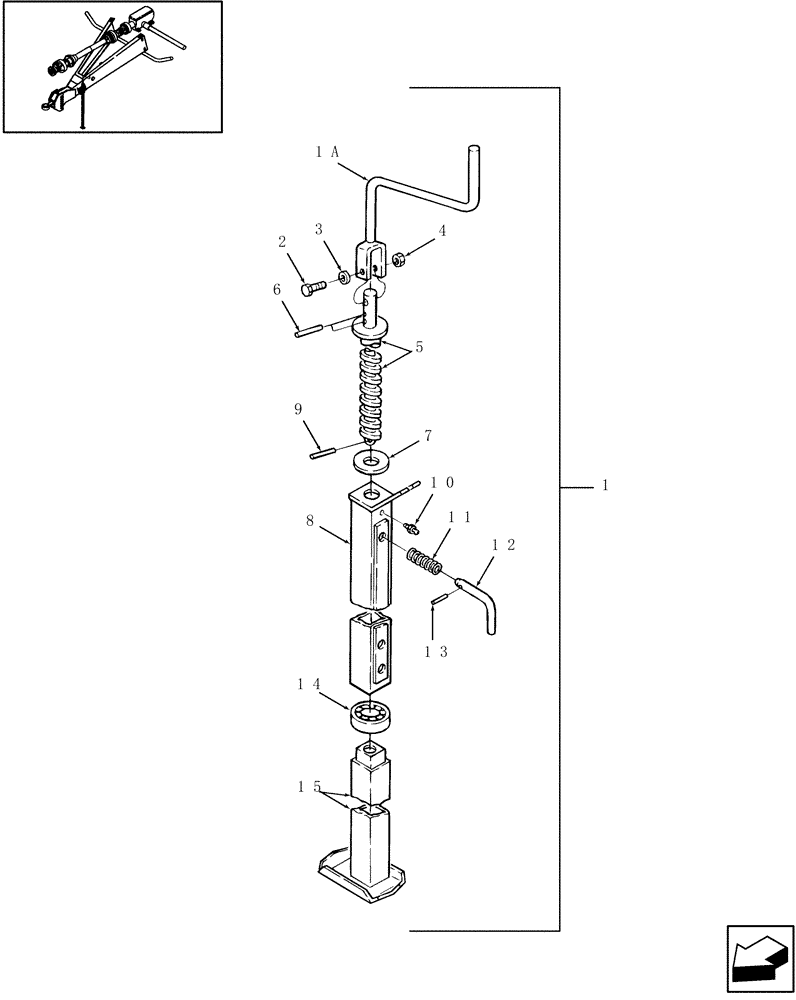

Запчасти Case IH RBX461 (005) - JACK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

86625983

JACK ASSY.

1шт.

1a

86609845

CRANKED HANDLE

1шт.

2

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

3

495-21044

WASHER,3/8"

2шт.

4

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

5

604231

JACK SCREW

1шт.

6

435-5824

GROOVED PIN,1/4" x 1 1/2", Type E

2шт.

7

495-21081

WASHER,3/4"

1шт.

8

86635208

TUBE

1шт.

9

435-5616

GROOVED PIN,3/16" x 1", Type E

1шт.

10

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

11

26538

SPRING

1шт.

12

86611330

PIN,16.56mm OD

Jack, 9/16" x 2-7/8"

1шт.

13

38-1820

LOCK PIN,1/8" x 1 1/4", Slotted

1шт.

14

9801922

THRUST BEARING,19.25mm ID x 35.97mm OD x 11.76mm W

1шт.

15

86629877

JACK

Jack

1шт.
