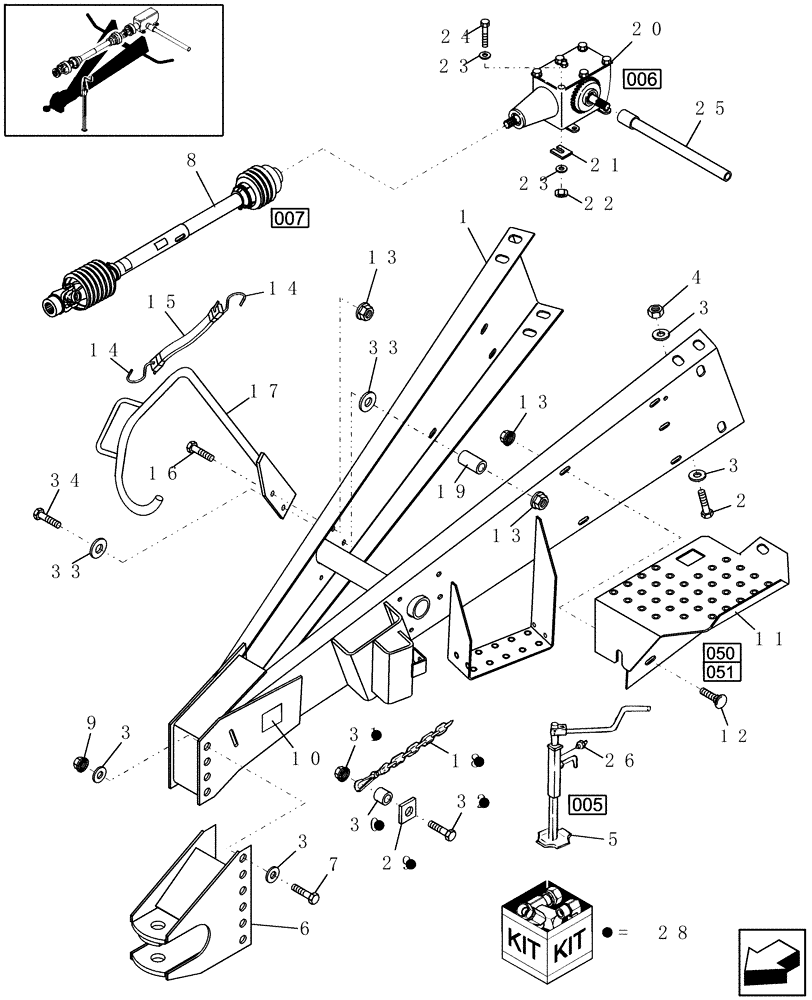

Запчасти Case IH RBX461 (001) - HITCH & DRIVELINE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

86500991

HITCH

Tongue

1шт.

2

414-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

12шт.

3

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

1-1/2" OD

28шт.

4

9602227

LOCK NUT,5/8"-18, GC

12шт.

5

86625983

JACK ASSY.

Refer to Fig. 002

1шт.

6

86635209

HITCH

1шт.

7

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

8

NSS

NOT SOLD SEPARAT

Power Take Off, Refer to Fig. 004

1шт.

Order Components

1шт.

9

85700693

NUT,5/8" - 11, Gr C

2шт.

10

28296

DECAL

Hitch/PTO

1шт.

11

86510166

STEP

1шт.

12

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

2шт.

13

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

14

115680

HOOK

Anchor

2шт.

15

273672

FASTENER

Rubber

1шт.

16

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

17

86529838

SUPPORT

Hose

1шт.

18

850116

CHAIN

Safety Tow

1шт.

19

86500987

SPACER

1шт.

20

86636907

GEARBOX

540 RPM, Refer to Fig. 003

1шт.

21

163962

SHIM,.015" Thk

1шт.

22

825-1416

NUT,M16, Cl 8

4шт.

23

781316

WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk

8шт.

24

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

4шт.

25

86636672

DRIVE SHAFT

& Coupler

1шт.

26

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

27

85700693

NUT,5/8" - 11, Gr C

2шт.

28

86621157

KIT

Safety Tow Chain, Includes Ref.18, 29 - 32, & Instuctions

1шт.

29

BER714680

PLATE

1шт.

30

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

31

9602227

LOCK NUT,5/8"-18, GC

1шт.

32

414-10104

BOLT,Hex, 5/8" - 18 x 6-1/2", Gr 5

1шт.

33

495-21044

WASHER,3/8"

2шт.

34

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.
