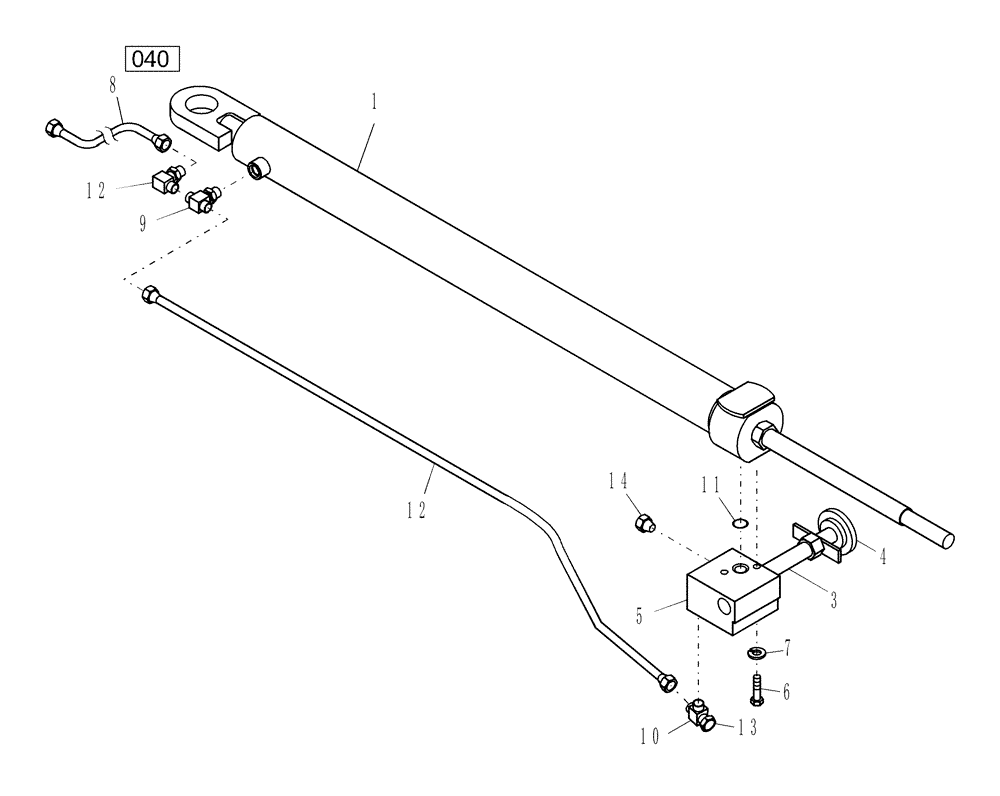

Запчасти Case IH RBX461 (041) - HYDRAULICS, BALE TENSION (35) - HYDRAULIC SYSTEMS

1

86637315

CYLINDER

Hydraulic, Bale Tension, Serial Range: Refer-Fig.042

1шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

2

86605282

TUBE,0.375" OD x 28.83", 4.18" L

1шт.

3

86520937

VALVE PRESSURE RELIE

1шт.

4

86505699

KNOB

1шт.

5

86601286

EXCHANGE VALVE PLATE

1шт.

6

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

7

492-11031

LOCK WASHER,5/16"

2шт.

8

9847200

HOSE,6.35mm ID x 2184.4mm L, SAE 100R1

1шт.

9

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

-6, 37-Or Br

1шт.

10

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

-6, 37-Or Br

1шт.

11

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

13

218-754

CAP,37 Degree, 9/16"-18

6, Hex

1шт.

14

76349

PLUG,9/16" - 18 ORB

1шт.
