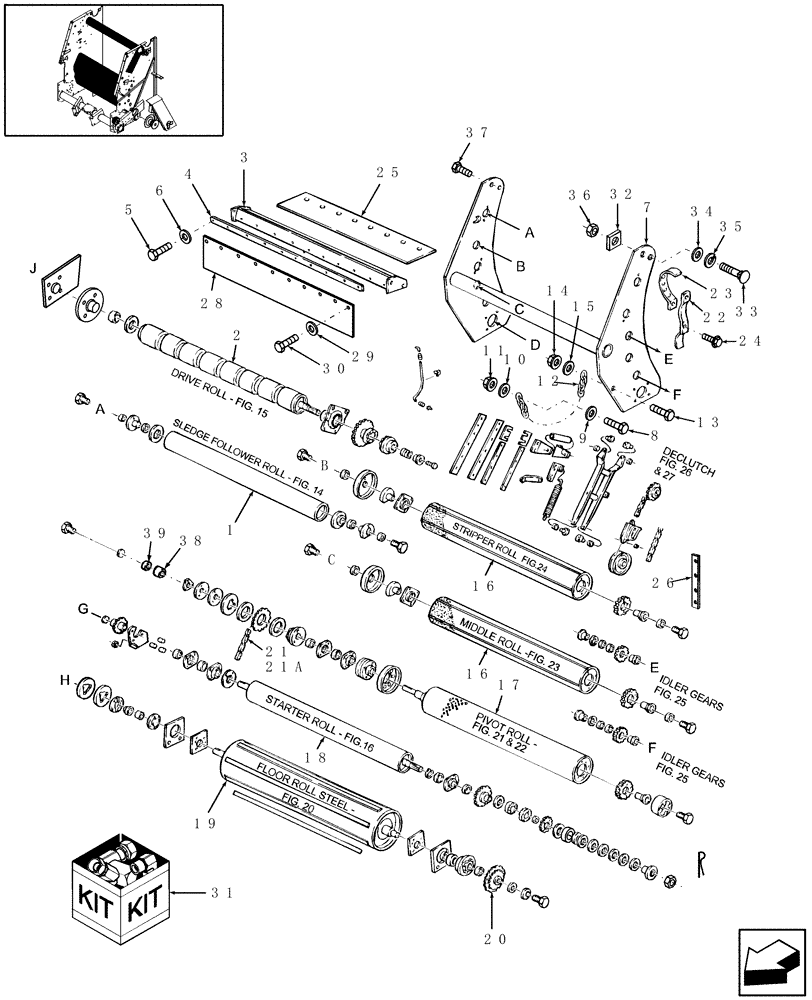

Запчасти Case IH RBX461 (013) - DRIVE (14) - MAIN GEARBOX & DRIVE

1

86565877

ROLLER

5.56" Sledge Follower

1шт.

2

86574943

ROLLER

Drive

1шт.

3

86636982

CHANNEL

Scraper Mount

1шт.

4

9845575

SCRAPER BLADE

1шт.

This Scraper is used for silage and in any other condition when sticky material may tend to wrap on the rollers.

1шт.

Component of Expeller Roller Kit, Refer to Fig. 089

1шт.

5

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

8шт.

6

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

8шт.

7

86637311

FRAME

Sledge

1шт.

8

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

9

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

2шт.

10

495-21050

WASHER,7/16"

3шт.

11

280980

NUT,7/16"-14, GC

3шт.

12

86527218

CHAIN,378mm L

1шт.

13

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

14

492-11044

LOCK WASHER,7/16"

1шт.

15

495-21044

WASHER,3/8"

2шт.

16

86637309

ROLLER

Stripper, Except Silage Special

1шт.

Top Roller has 8 Rods, Middle has none.

1шт.

17

86637005

ROLLER

1шт.

18

86637278

ROLLER

Starter

1шт.

19

86637240

ROLLER

Floor

1шт.

20

86637270

DRIVEN SPROCKET

Wide Pickup

1шт.

21

66494

CHAIN,60, 50 Links x 19.05mm = 952.5mm

RC60, 3/4"-Pitch, 50 Pitches, Includes: (1) Connector Link

1шт.

21a

86595275

OFFSET LINK

- 60

1шт.

22

86637189

SHIELD

1шт.

23

86637188

SHIELD

Upper

1шт.

24

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

3шт.

25

9848760

BELT,127.00 mm W x 1140.00 mm L

1шт.

28

86548820

BELT,178.00 mm W x 1520.00 mm L

Kit, Trash Baffle, Includes: Hardware & Instructions

1шт.

29

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

10шт.

30

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

10шт.

31

86618701

KIT

Trash Baffle, Refer to Ref. 094

1шт.

32

86636768

PLATE

2шт.

33

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

On Net Wrap units the RH bolt must be installed from the outside in.

1шт.

34

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

.50"

2шт.

35

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

36

829-1412

NUT,M12, Cl 10.9

2шт.

37

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

38

86636900

SPACER

1шт.

39

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

1шт.
