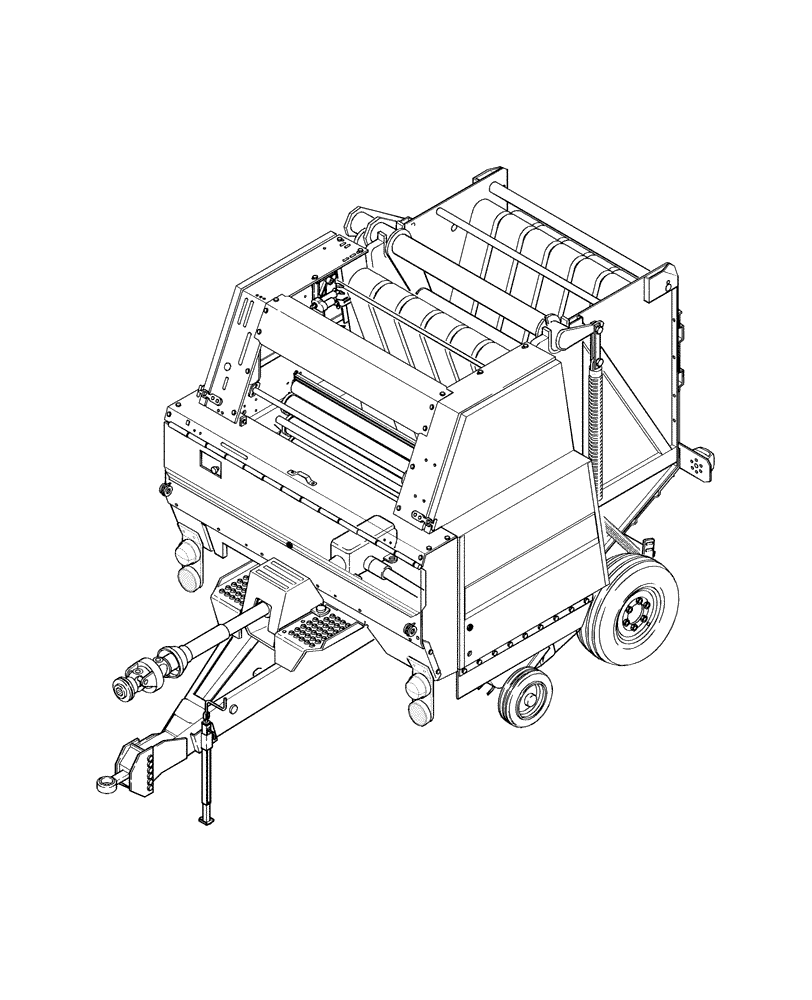

Запчасти Case IH RBX461 (PARTS) - DEALER PARTS STOCKING LIST FOR 5 MACHINES (05) - SERVICE & MAINTENANCE

12595

CAM FOLLOWER

1шт.

664175R92

BALL BEARING,1.5005" ID x 80 mm OD x 1.1875"

Cam Follower, Net Wrap Units

2шт.

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Friction

2шт.

133186

CAM FOLLOWER

1шт.

694181

MAGNET

Bearing

1шт.

714379

CLUTCH

Jaw

2шт.

857072

GAUGE

3,000 PSI

1шт.

87028608

CLUTCH

Half

1шт.

9803325

SUPPORT

1шт.

87030468

HUB

2шт.

9806864

KNIFE,382mm L x 38.1mm W x 3.4mm Thk

4шт.

9806931

IDLER GEAR,17T

17T, Sledge Roll Drive

1шт.

9807783

BEARING ASSY,3.238" ID x 3.73" OD x 1"

1шт.

9808112

BALL BEARING,34.99mm ID x 71.88mm OD x 25mm W

1шт.

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

10шт.

9847138

REPAIR KIT

Lacing, Includes: Box of 18 Cards, 45 Hooks per Card

1шт.

9848489

BEARING ASSY,73 mm ID x 132.1976 mm OD x 38.10 mm, Round Bore

5шт.

9849862

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

5шт.

86504967

DRIVE BUSHING,19.16mm ID x 25.48mm OD x 12.7mm L

10шт.

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

6шт.

86553396

BEARING ASSY,30.23mm ID x 90mm OD x 30.2mm W, SQUARE BORE

5шт.

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

Extension

1шт.

86614686

GEAR

Roll, 24T

1шт.

86618461

BELT,177.80 mm W x 1828.00 mm L

Chevron, Laced, Repair Section

2шт.

86625980

DIA KIT, HARVESTER

Lacing Cable, Includes: (18) Cable Tubes, (8) Lacing Cables & Instructions

1шт.

86632007

FINGER

Pickup

72шт.

86637392

DRIVEN SPROCKET

20T

1шт.
