(056) - TAILGATE SHIELDS

Запчасти Case IH RBX461 (056) - TAILGATE SHIELDS (90) - PLATFORM, CAB, BODYWORK AND DECALS

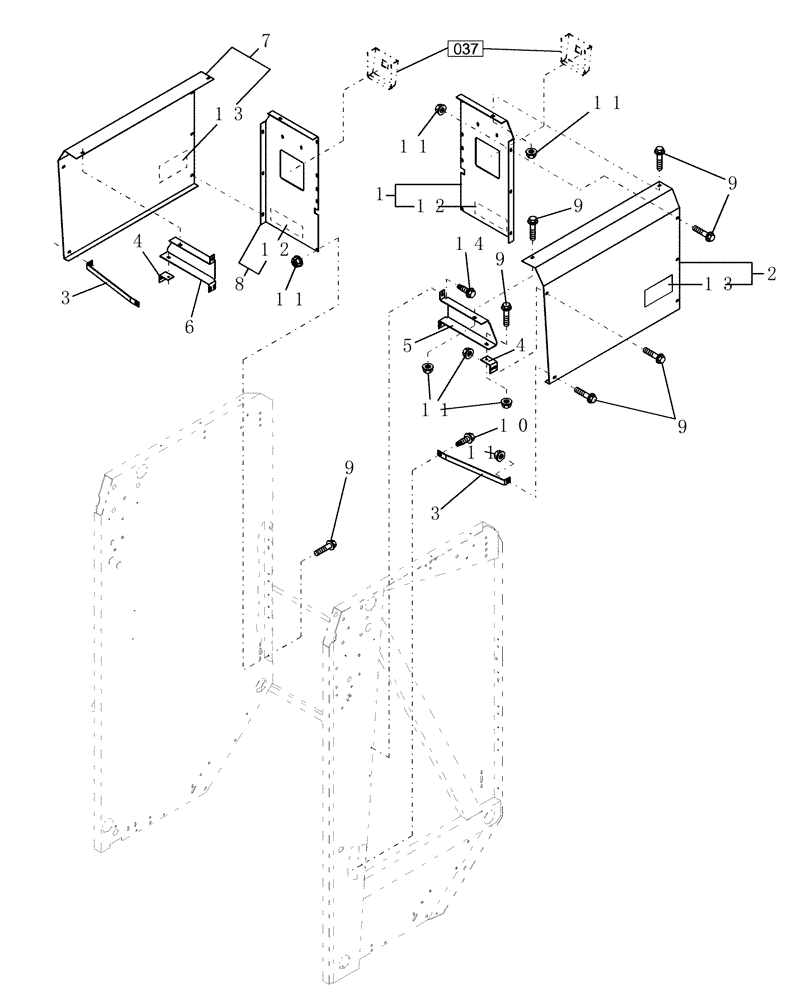

Схема запчастей Case IH RBX461 - (056) - TAILGATE SHIELDS (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
11
10
11
9
9
9
4
13
11
1
2
11
4
6
7
14
5
9
12
12
13
3
11
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86627281

SHIELD

Rear, LH

1шт.

2

86630119

SHIELD

LH

1шт.

3

86621152

SUPPORT ASSY.

2шт.

4

86629916

PLATE

2шт.

5

86620250

SUPPORT ASSY.

LH

1шт.

6

86620251

SUPPORT ASSY.

RH

1шт.

7

86630120

SHIELD

RH

1шт.

8

86627282

SHIELD

Rear, RH

1шт.

9

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

20шт.

10

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

Flg, USR, 5/16"-18 x 5/8"

6шт.

11

825-5148

SERRATED NUT,M8, Flg Ser

20шт.

12

86547781

REFLECTOR,RED

Red Retroreflective

2шт.

13

86631519

DANGER DECAL

English

2шт.

13

86632802

DECAL

DANGER, French

2шт.
