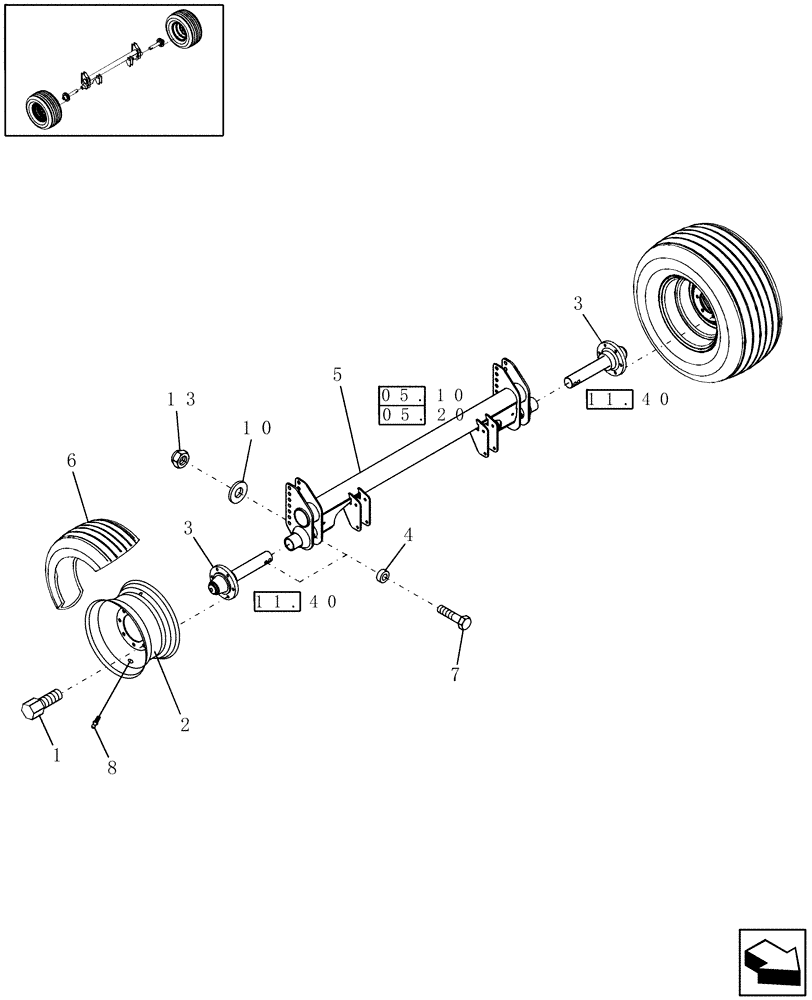

Запчасти Case IH RBX453 (11.04) - WHEELS, 8 PLY 15", NORTH AMERICA (11) - WHEELS

1

198056

WHEEL BOLT,1/2" - 20 x 1.031"

G5

12шт.

2

86616346

WHEEL

2шт.

3

0C

ORDER COMPONENTS

Spindle

2шт.

4

86641937

SPACER,16.6mm ID x 31.75mm OD x 12.7mm Thk

2шт.

5

0C

ORDER COMPONENTS

Axle

2шт.

6

86564435

TYRE/TIRE

31 x 13.5, 8 Ply

2шт.

7

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

8

196033

VALVE STEM

Tire, Tubeless

2шт.

10

122432

WASHER,17mm ID x 41mm OD x 6mm Thk

Hardened, 5/8"

2шт.

13

832-46416

NUT,M16 x 2, Cl 8

2шт.
