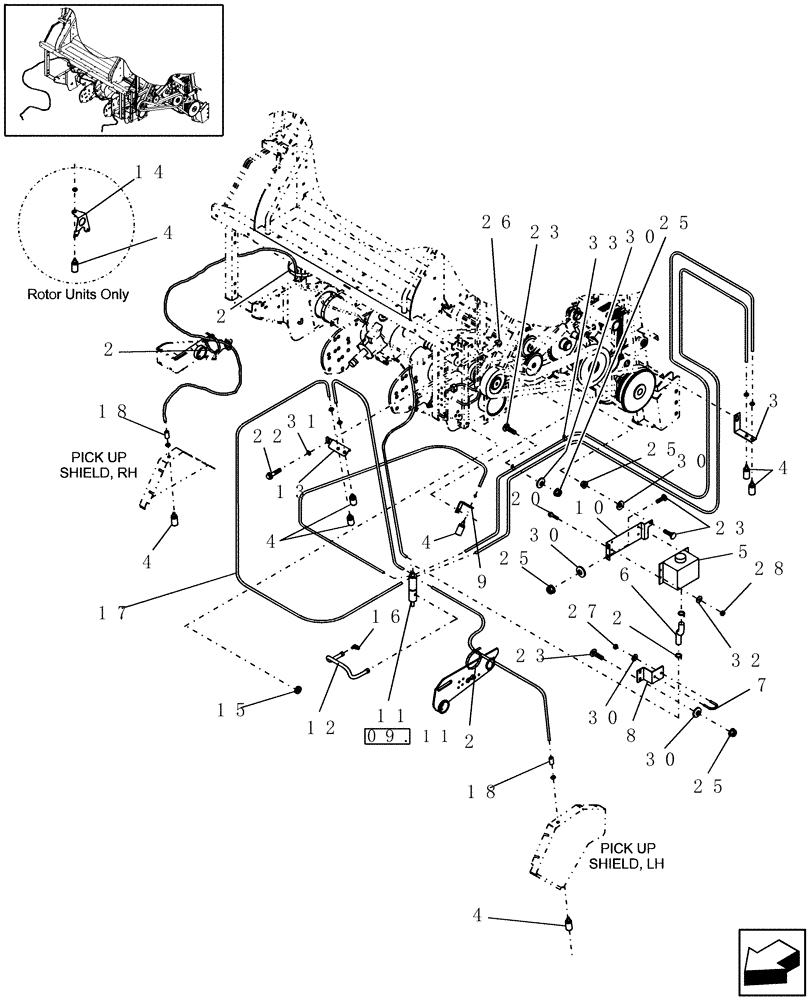

Запчасти Case IH RBX453 (09.10) - LUBRICATION OILER, EUROPE & R.O.W. (09) - LUBRICATION

2

249730

SECURING STRAP,8" L

1/8" x 8"

15шт.

3

86631455

ANGLE

1шт.

Use Existing Hardware & Coupler

1шт.

4

9822519

COMMUTATOR BRUSH

7шт.

5

9822520

RESERVOIR, HYDRAULIC

1шт.

6

9847000

HOSE,15.88mm ID x 374.65mm L

1шт.

7

86977434

U-BOLT,5/16" - 20 x 1.94" W x 2.50" L

5/16"-18, 1-15/16" W x 2-1/2" L

1шт.

8

86618630

ANGLE

1шт.

9

86618552

ANGLE

1шт.

Use Existing Hardware & Coupler

1шт.

10

87023511

MOUNTING PARTS

Tank

1шт.

11

87040807

PUMP

Oiler

1шт.

12

850420

FLEXIBLE HOSE

1шт.

13

86618553

ANGLE

1шт.

14

86643948

BRACKET

1шт.

Rotor Units Only

1шт.

15

625670

GROMMET

1шт.

16

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Includes: O-Ring, 1/4" Tube

1шт.

17

9848970

PLASTIC-RUBBER TUBE,3.96mm OD x 10973mm L

Lube, .156" OD x 10'

1шт.

18

86521981

REDUCER,5/32" Hose Barb x 5/32" Hose Barb

2шт.

20

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

4шт.

22

844-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 8.8

1шт.

23

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

6шт.

25

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

6шт.

26

9804279

FLANGE NUT,Hex, M12, Cl 8

1шт.

27

425-105

NUT,5/16"-18, G5

2шт.

28

832-46406

NUT,M6 x 1, Cl 8

4шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

31

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

32

495-21031

WASHER,1/4"

4шт.

33

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

2шт.
