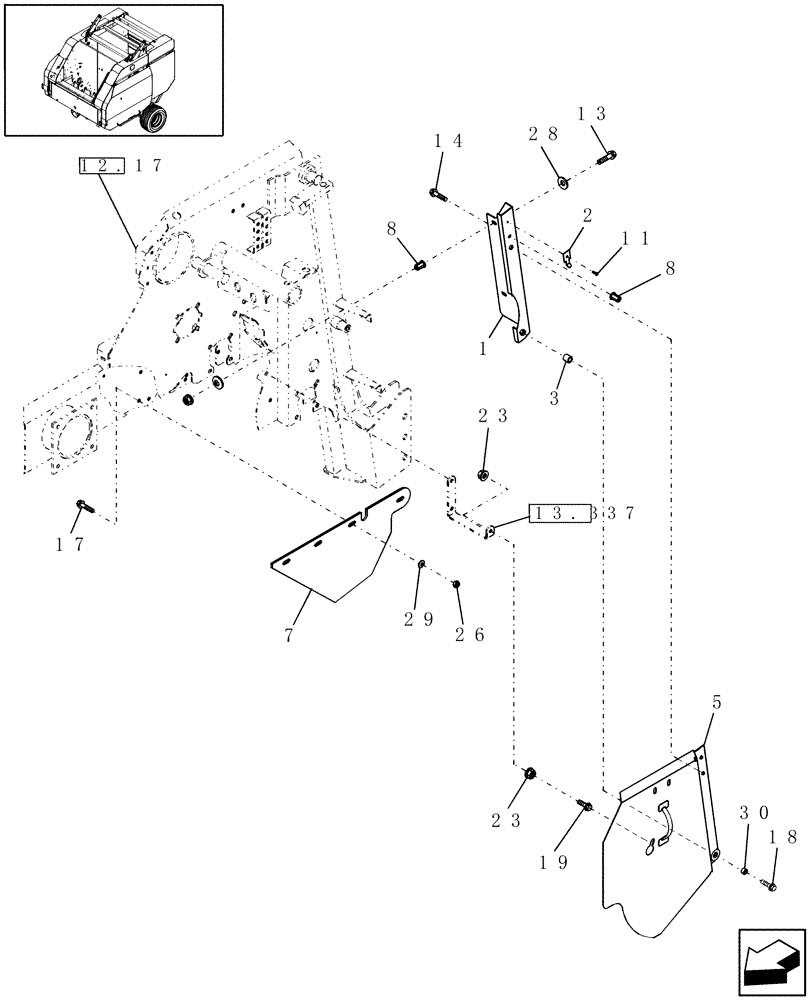

Запчасти Case IH RBX453 (08.95) - SHIELDS, STUFFER FEEDER (08) - SHEET METAL/DECALS

1

86630077

SHIELD

1шт.

3

698748

BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L

1шт.

5

86836589

SHIELD

LH

1шт.

7

86628547

SHIELD

Europe & R.O.W.

2шт.

8

86610200

THREADED INSERT,M8 x 1.25

M8

6шт.

13

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

14

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

17

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

5шт.

19

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

23

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

26

832-46410

NUT,M10 x 1.5, Cl 8

8шт.

28

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

29

235126

WASHER,10.3mm ID x 38mm OD x 1.7mm Thk

Special

8шт.

30

495-21044

WASHER,3/8"

1шт.
