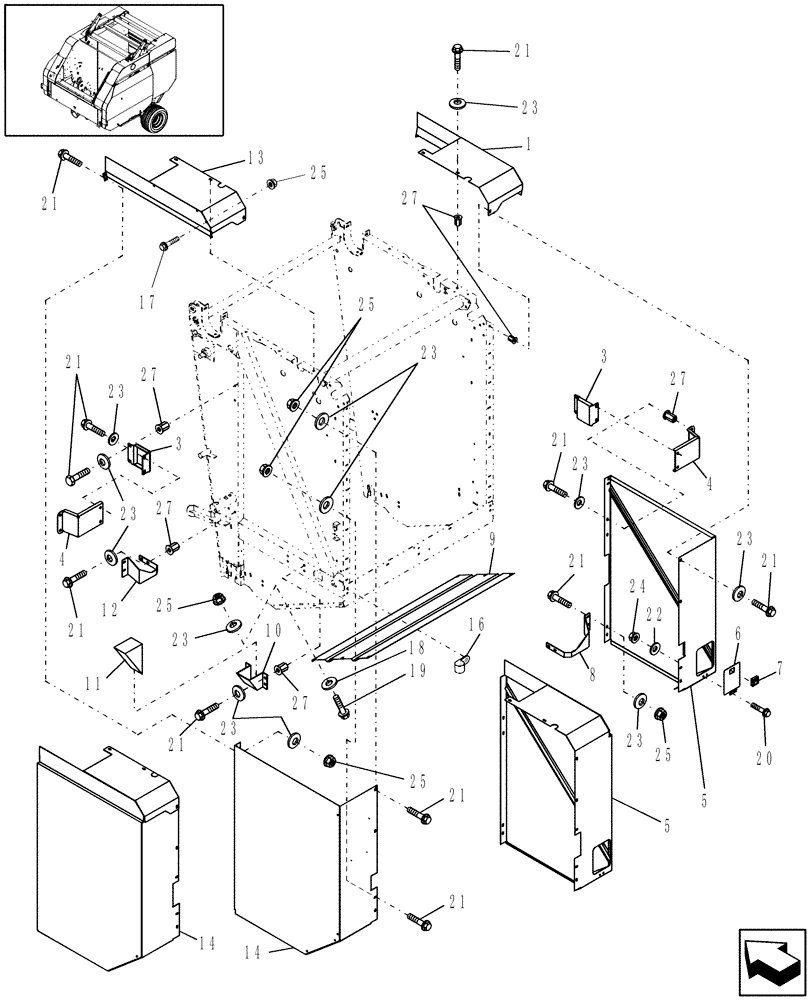

Запчасти Case IH RBX453 (08.50) - SHIELDS, REAR, EUROPE & R.O.W. (08) - SHEET METAL/DECALS

1

87040794

SHIELD

RH, Upper

1шт.

Prior to P.I.N. Y6N016413

1шт.

3

86977964

SUPPORT

1шт.

4

86643515

SUPPORT

2шт.

5

87028320

SHIELD

RH, Two-Piece

1шт.

Prior to P.I.N. Y6N016413

1шт.

5

87051676

SHIELD

RH, One-Piece

1шт.

P.I.N. Y6N016414 & After

1шт.

6

86643221

DOOR ASSY.

2шт.

7

632732

LATCH

2шт.

8

86643486

SUPPORT

RH

1шт.

9

86980311

SHIELD

1шт.

10

86630876

WHEEL CHOCK

2шт.

11

86630877

SUPPORT

Wheel Chock

2шт.

12

86643485

SUPPORT

LH

1шт.

13

87037391

SHIELD

LH, Upper

1шт.

Prior to P.I.N. Y6N016413

1шт.

14

87028319

SHIELD

LH, Two-Piece

1шт.

Prior to P.I.N. Y6N016413

1шт.

14

87053779

SHIELD

RH, One-Piece

1шт.

P.I.N. Y6N016414 & After

1шт.

16

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

2шт.

Use top bolts from light brackets

1шт.

17

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

Prior to P.I.N. Y6N016413

1шт.

18

495-21038

WASHER,5/16"

6шт.

19

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

6шт.

20

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

21

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

44шт.

Prior to P.I.N. Y6N016413

1шт.

21

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

40шт.

P.I.N. Y6N016414 & After

1шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

50шт.

Prior to P.I.N. Y6N016413

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

46шт.

P.I.N. Y6N016414 & After

1шт.

24

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

25

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

26шт.

Prior to P.I.N. Y6N016413

1шт.

25

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

18шт.

P.I.N. Y6N016414 & After

1шт.

27

86610200

THREADED INSERT,M8 x 1.25

M8

32шт.
