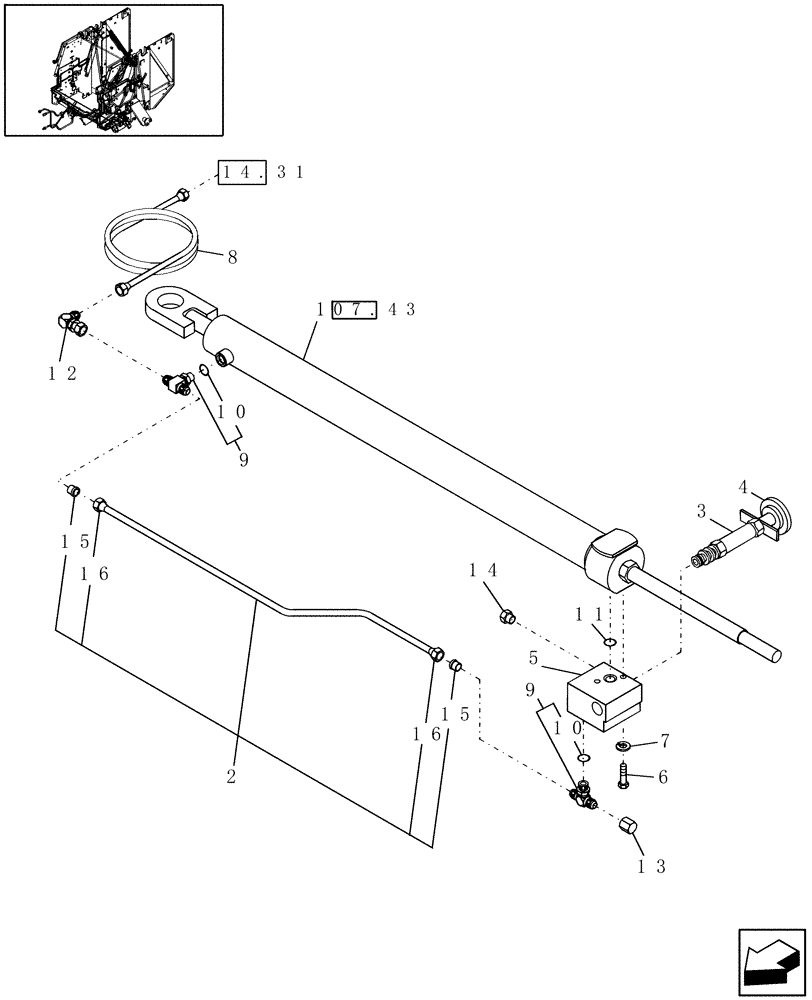

Запчасти Case IH RBX453 (07.45) - HYDRAULICS, BALE TENSION, SINGLE CYLINDER (07) - HYDRAULIC SYSTEM

1

87027902

CYLINDER ASSY.

Hydraulic, Bale Tension

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

2

86605282

TUBE,0.375" OD x 28.83", 4.18" L

Includes: Ref. 15 & 16

1шт.

3

86520937

VALVE PRESSURE RELIE

1шт.

4

86505699

KNOB

1шт.

5

86601286

EXCHANGE VALVE PLATE

1шт.

6

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

7

492-11031

LOCK WASHER,5/16"

2шт.

8

86621388

FLEXIBLE HOSE,6.35mm ID x 3251.2mm L, SAE 100R17

1шт.

9

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

13

218-754

CAP,37 Degree, 9/16"-18

1шт.

14

76349

PLUG,9/16" - 18 ORB

1шт.

15

218-363

SLEEVE,37 Degree, 3/8" Tube

2шт.

16

218-343

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.
