(06.30) - POWER RELAY CONVERSION KIT

Запчасти Case IH RBX453 (06.30) - POWER RELAY CONVERSION KIT (06) - ELECTRICAL SYSTEMS

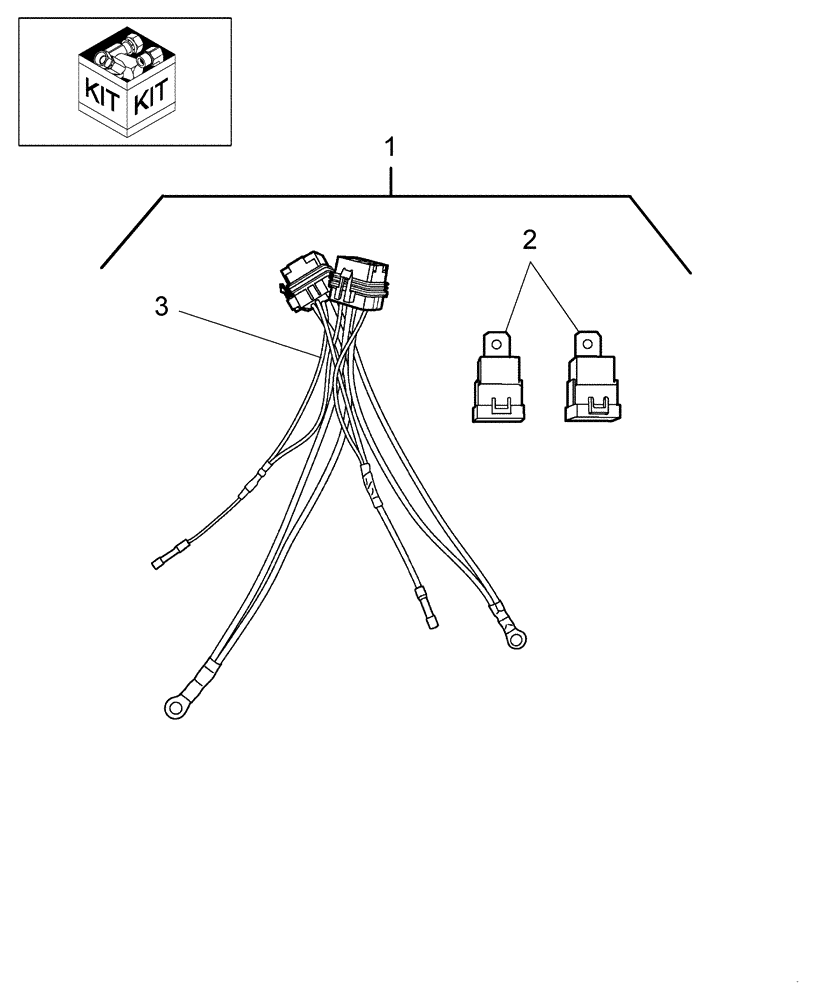

Схема запчастей Case IH RBX453 - (06.30) - POWER RELAY CONVERSION KIT (06) - ELECTRICAL SYSTEMS
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84226853

KIT

Power Relay Conversion, Includes: Ref. 2 - 7 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

82017871

RELAY,12V, 20A

2шт.

3

84214839

WIRE HARNESS

Jumper, Power Relay

1шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

Not Illustrated

1шт.

5

9706755

NUT,M6, Cl 8

2шт.

Not Illustrated

1шт.

6

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

Not Illustrated

1шт.

7

249730

SECURING STRAP,8" L

1шт.

Not Illustrated

1шт.
