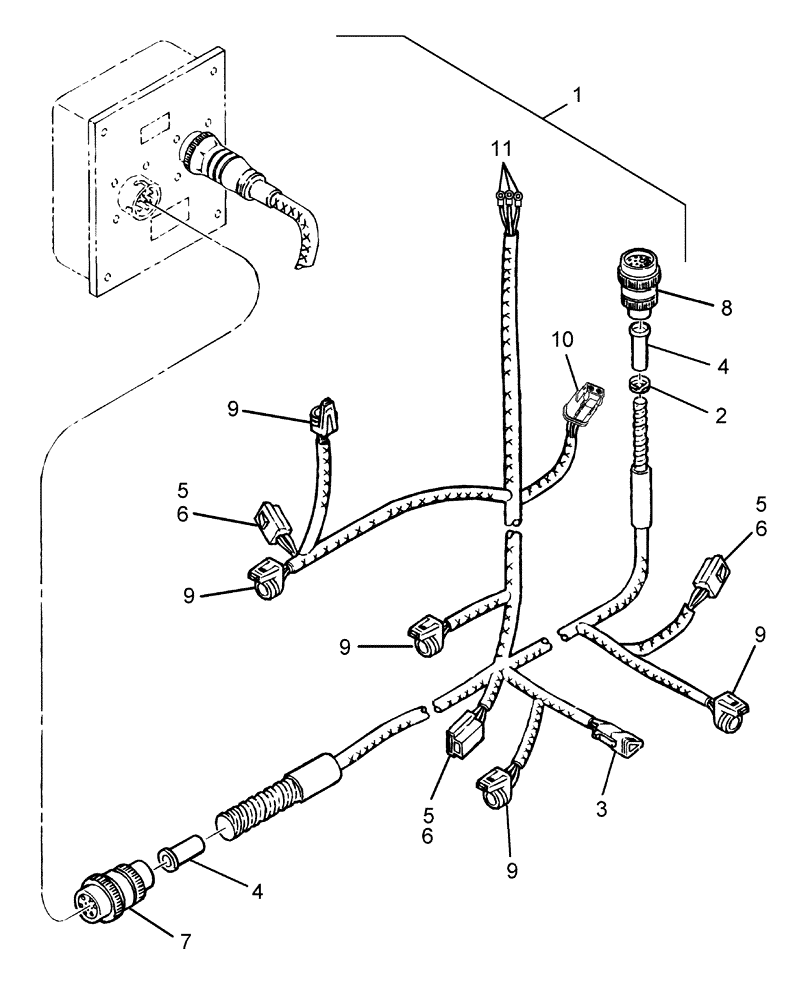

Запчасти Case IH RBX453 (06.05) - ELECTRONICS, NET-TWINE, WIRE HARNESS (06) - ELECTRICAL SYSTEMS

1

86622152

WIRE HARNESS

Net

1шт.

2

792026

LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk

Split, Int, 1.00"

1шт.

3

84074635

CONTACT HOUSING,Female, 3 Pole

Net Counter, 3-Pin

1шт.

4

9619682

BUSHING

MS3420-12

2шт.

5

248712

BODY

3шт.

6

900613

TERMINAL

E18

3шт.

7

86564210

MULTIPOLE CONNECTOR,Female, 19 Pole

DEU Plug, 19-Pin

1шт.

86575791

SOCKET

16 Ga.

1шт.

900302

TERMINAL

E18

6шт.

8

86520117

ELEC CONNECTOR,Male, 16 - 8 SAE

DEU Plug, 18-Cav Pin

1шт.

900786

ELEC. TERMINAL PIN,Male, 5 - 8 mm2

E18

1шт.

900316

ELEC. TERMINAL PIN,Male, 2 -3.5 mm2

E18

2шт.

900363

TERMINAL

E18

8шт.

9

86624601

MULTIPOLE CONNECTOR,Female, 3 Pole

Potentiometer, 3-Pin

5шт.

10

84074631

CONTACT HOUSING,Female, 2 Pole

Tailgate Latch, 2-Pin

1шт.

86575791

SOCKET

16 Ga.

2шт.

11

PL

PROCURE LOCALLY

Ring Terminal

1шт.

12

86624602

ELEC. TERMINAL PIN,Tin, 0.80 - 1.00mm

Point

1шт.

Not Illustrated

1шт.
