Запчасти Case IH RBX453 (03.10) - GEARBOX, MOUNTING, 540 RPM (03) - MAIN GEARBOX

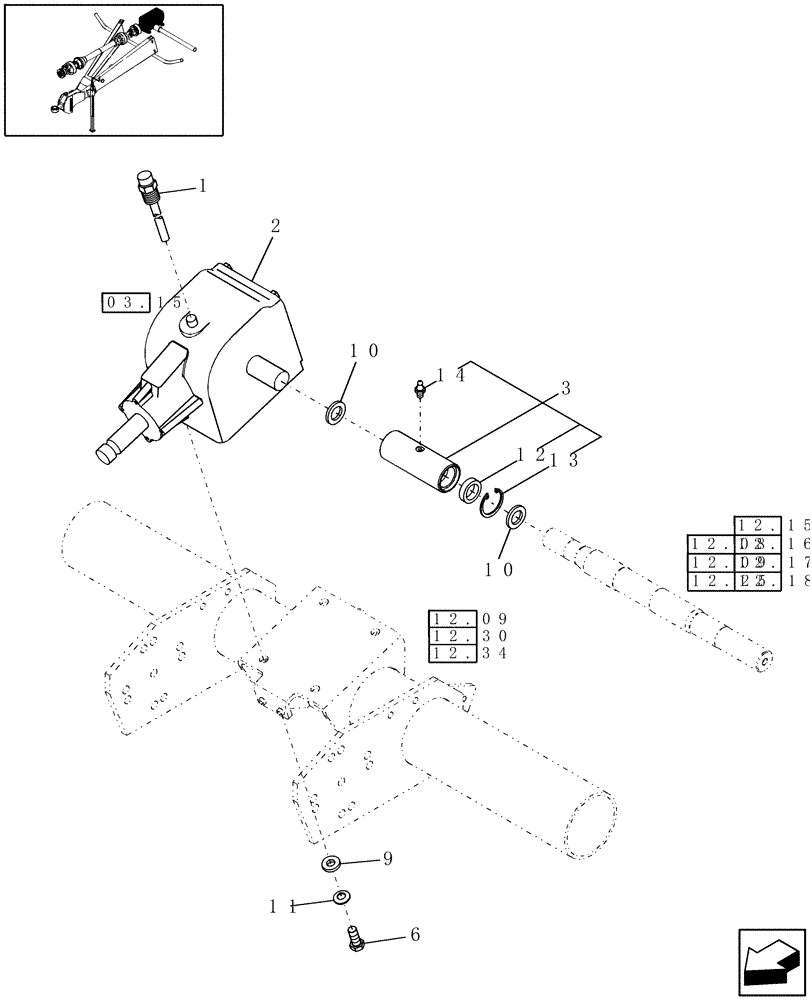

Схема запчастей Case IH RBX453 - (03.10) - GEARBOX, MOUNTING, 540 RPM (03) - MAIN GEARBOX
10
6
1
10
2
9
03.15
12.15
12.16
12.18
12.17
12.08
12.34
12.30
12.09
12.25
12.09
12
13
11
3
14

Артикул

Название

Примечание

Количество

1

86626270

DIPSTICK,129mm L

1шт.

2

87025454

GEARBOX

Main Drive, 540 RPM

1шт.

87391830R

REMAN-GEARBOX

RBX563, Reman For New P/N's 87025454 & 87391830,

1шт.

87391830C

CORE-GEARBOX

Return Number

1шт.

87391830R

REMAN-GEARBOX

RBX553, Reman For New P/N's 87025454 & 87391830,

1шт.

87391830C

CORE-GEARBOX

Return Number

1шт.

87391830R

REMAN-GEARBOX

RBX463, Reman For New P/N's 87025454 & 87391830,

1шт.

87391830C

CORE-GEARBOX

Return Number

1шт.

87391830R

REMAN-GEARBOX

RBX453, Reman For New P/N's 87025454 & 87391830,

1шт.

87391830C

CORE-GEARBOX

Return Number

1шт.

87391830R

REMAN-GEARBOX

RBX443, Reman For New P/N's 87025454 & 87391830,

1шт.

87391830C

CORE-GEARBOX

Return Number

1шт.

3

86634418

COUPLING

1шт.

6

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

4шт.

9

86979179

WASHER,16.67mm ID x 34.93mm OD x 6.35mm Thk

Special

4шт.

10

86637396

WASHER,25.6mm ID x 35.3mm OD x 1mm Thk

Special

2шт.

11

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

12

86637370

SEAL,40mm ID x 52mm OD x 7mm Thk

Oil

2шт.

13

300643

SNAP RING,M38, Int

2шт.

14

62161

LUBE NIPPLE,M8 x 1.25, Str

Self-Tapping

2шт.

Выбрано товаров: 20
