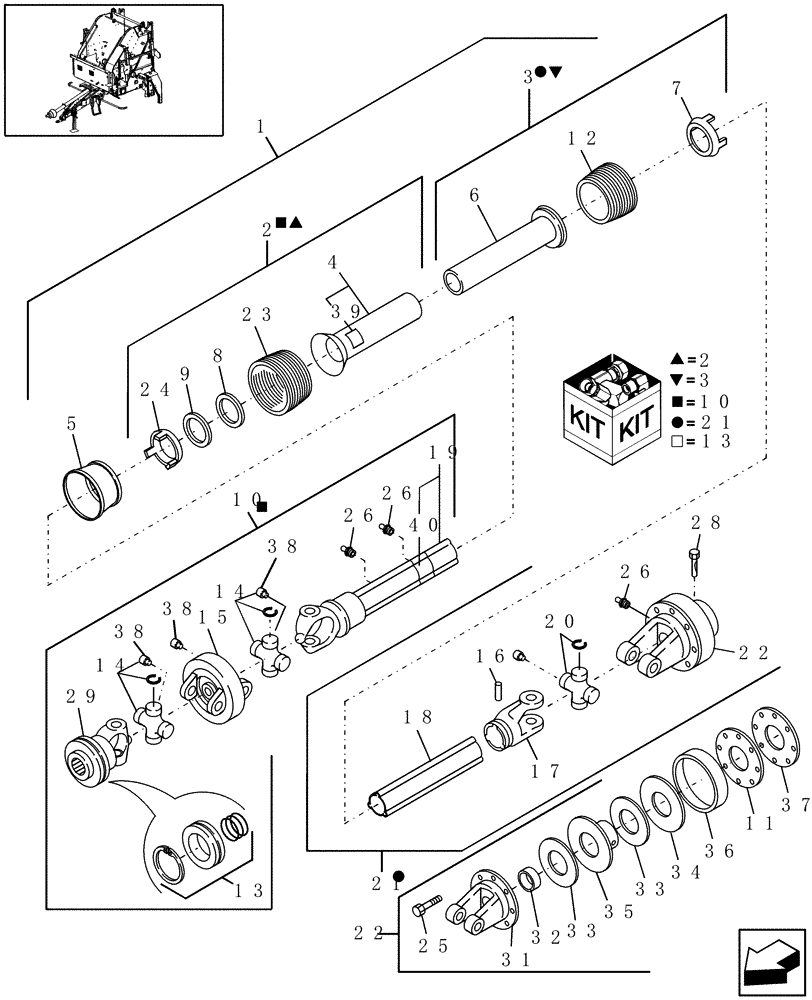

Запчасти Case IH RBX453 (01.90) - POWER TAKE OFF, SLIP CLUTCH, 540 RPM, NORTH AMERICA, PRIOR TO P.I.N. Y6N016413 (01) - POWER TAKE OFF
№
Артикул
Название
Примечание
Количество
1
86604846
PTO
540 RPM, Slip Clutch
1шт.
1
87643128R
PTO
RBX453, RBX463, RBX553, All CASE IH ROUND BALER, 540 RPM, Slip Clutch, PRIOR TO P.I.N. Y6N016413 (9/05-), Reman for New PN 86604846
1шт.
1
87643128C
PTO
Return Number
1шт.
2
87012756
KIT
Front
1шт.
3
87012757
KIT
Rear
1шт.
4
NSS
NOT SOLD SEPARAT
Cone, Outer
1шт.
5
NSS
NOT SOLD SEPARAT
Shield
1шт.
6
NSS
NOT SOLD SEPARAT
Cone, Inner
1шт.
7
86625852
RING NUT
1шт.
8
86625851
RING NUT
1шт.
9
NSS
NOT SOLD SEPARAT
Cone
1шт.
10
87012745
PTO SHAFT
Includes: Shield
1шт.
11
86625867
SPRING
Belleville
1шт.
12
NSS
NOT SOLD SEPARAT
Cover Band
1шт.
13
86625855
KIT
Ball Collar
1шт.
14
86625850
U-JOINT SPIDER
2шт.
15
86625844
BODY
1шт.
16
86625846
PIN
Spring
1шт.
17
86625848
YOKE
1шт.
18
87012729
TUBE,1175 mm L
Drive
1шт.
19
87012730
TUBE,1217.50 mm L
1шт.
20
86625842
BEARING ASSY
1шт.
21
87012747
PTO SHAFT
Rear, Includes: Shield & Clutch
1шт.
22
86625849
PTO CLUTCH
Slip
1шт.
23
NSS
NOT SOLD SEPARAT
Cover
1шт.
24
86625854
RING NUT
1шт.
25
87012736
BOLT AND NUT
Includes: Nut
8шт.
26
87012758
LUBE NIPPLE
LUBRICATOR
2шт.
27
PL
PROCURE LOCALLY
Screw
17шт.
Not Illustrated
1шт.
28
86625865
KIT
Tapered
1шт.
29
86625841
YOKE
1шт.
31
86625860
CLUTCH PLATE
1шт.
32
86984909
BUSHING
1шт.
33
86625862
DISC
2шт.
34
86625863
THRUST PLATE
1шт.
35
86625864
HUB
1шт.
36
86625869
SPACER
1шт.
37
86625868
SPRING
Belleville
1шт.
39
849471
DANGER DECAL
English
1шт.
39
849482
DANGER DECAL
French
1шт.
Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.
1шт.
40
849472
DANGER DECAL
English
1шт.
40
849483
DANGER DECAL
French
1шт.
Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.
1шт.
Выбрано товаров: 46
