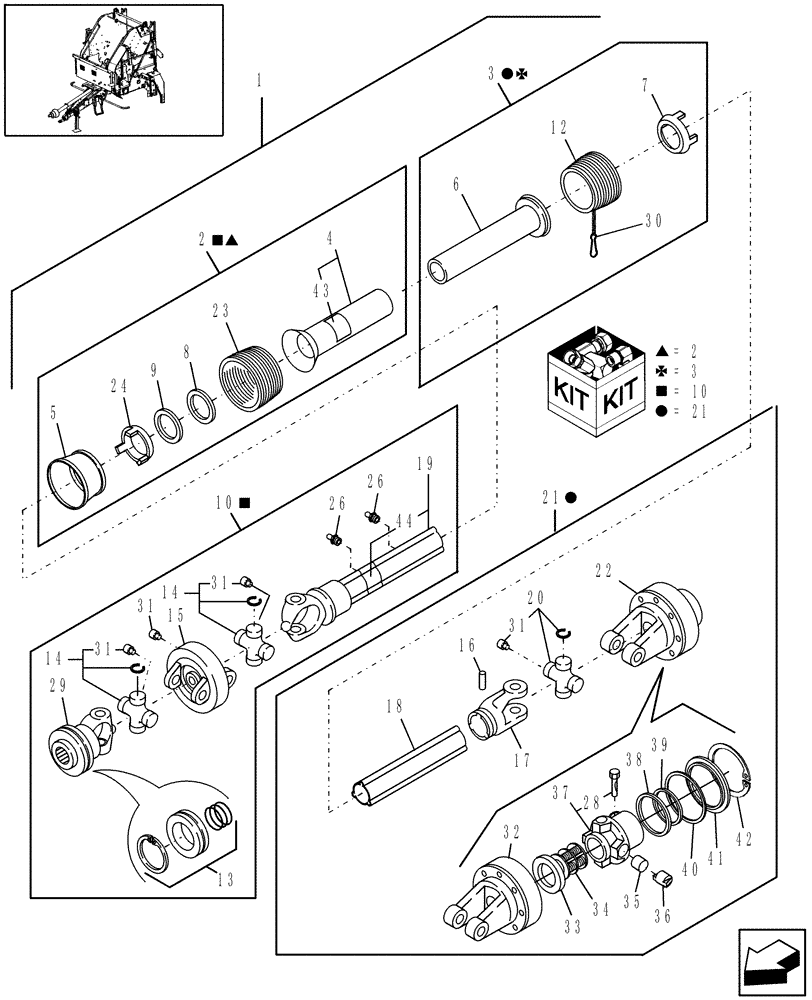

Запчасти Case IH RBX453 (01.50) - POWER TAKE OFF, 540 RPM, CUT-OUT CLUTCH, NORTH AMERICA, PRIOR TO P.I.N. Y6N016413 (01) - POWER TAKE OFF

1

86617546

PTO

540 RPM, Cut-Out Clutch

1шт.

2

86979217

KIT

Front

1шт.

3

86979218

KIT

Rear

1шт.

4

NSS

NOT SOLD SEPARAT

Cone, Outer

1шт.

5

NSS

NOT SOLD SEPARAT

Shield

1шт.

6

NSS

NOT SOLD SEPARAT

Cone, Inner

1шт.

7

86979196

BEARING,86mm ID x 132mm OD x 12mm H

1шт.

8

86979199

BEARING,95.5 mm ID x 115.5 mm OD x 33 mm

1шт.

9

NSS

NOT SOLD SEPARAT

Cone

1шт.

10

86979215

PTO SHAFT

Front, 1-3/8", 6 Tooth Spline, 540 RPM

1шт.

11

849471

DANGER DECAL

English

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

11

849482

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

12

NSS

NOT SOLD SEPARAT

Cover Band

1шт.

13

87018800

KIT

Ball Collar

1шт.

14

86979188

SPIDER,30.2mm Cap Dia, 92mm L, Grease-able

2шт.

15

86979189

BODY

1шт.

16

86979202

PIN

Spring

1шт.

17

86979192

YOKE

1шт.

18

86979190

TUBE,1070 mm L

Drive

1шт.

19

86979191

YOKE,1110.50 mm L

1шт.

20

86979193

SPIDER

1шт.

21

86979210

PTO SHAFT

Rear

1шт.

22

86979195

CLUTCH

Slip

1шт.

23

NSS

NOT SOLD SEPARAT

Cover

1шт.

24

86979197

SHIELD

1шт.

25

849472

DANGER DECAL

English

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

25

849483

DANGER DECAL

French

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

26

87012758

LUBE NIPPLE

LUBRICATOR

1шт.

27

NSS

NOT SOLD SEPARAT

Screw

1шт.

28

86625865

KIT

Tapered

1шт.

29

86979187

YOKE

Universal Joint, 1-3/8", 6 Tooth Spline, 540 RPM

1шт.

30

86979198

CHAIN,229mm L

1шт.

31

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.

32

NSS

NOT SOLD SEPARAT

Flange Yoke

1шт.

33

NSS

NOT SOLD SEPARAT

Bushing

1шт.

34

87039013

SPRING

Pack, 1100 Nm

1шт.

34

87051166

SPRING KIT

Pack, 1700 Nm

1шт.

35

87039015

SLEEVE

3шт.

36

87039014

PLUG

3шт.

37

NSS

NOT SOLD SEPARAT

Flange Hub

1шт.

38

NSS

NOT SOLD SEPARAT

Ring

1шт.

39

NSS

NOT SOLD SEPARAT

Oil Seal

1шт.

40

NSS

NOT SOLD SEPARAT

Oil Seal

1шт.

41

NSS

NOT SOLD SEPARAT

Cover

1шт.

42

87039016

SNAP RING,M138

1шт.

43

849471

DANGER DECAL

English

1шт.

43

849482

DANGER DECAL

French

1шт.

44

849472

DANGER DECAL

English

1шт.

44

849483

DANGER DECAL

French

1шт.
