Запчасти Case IH RBX453 (01.41) - POWER TAKE OFF, 540 RPM, CUT-OUT CLUTCH, EUROPE & R.O.W., P.I.N. Y6N016414 & AFTER (01) - POWER TAKE OFF

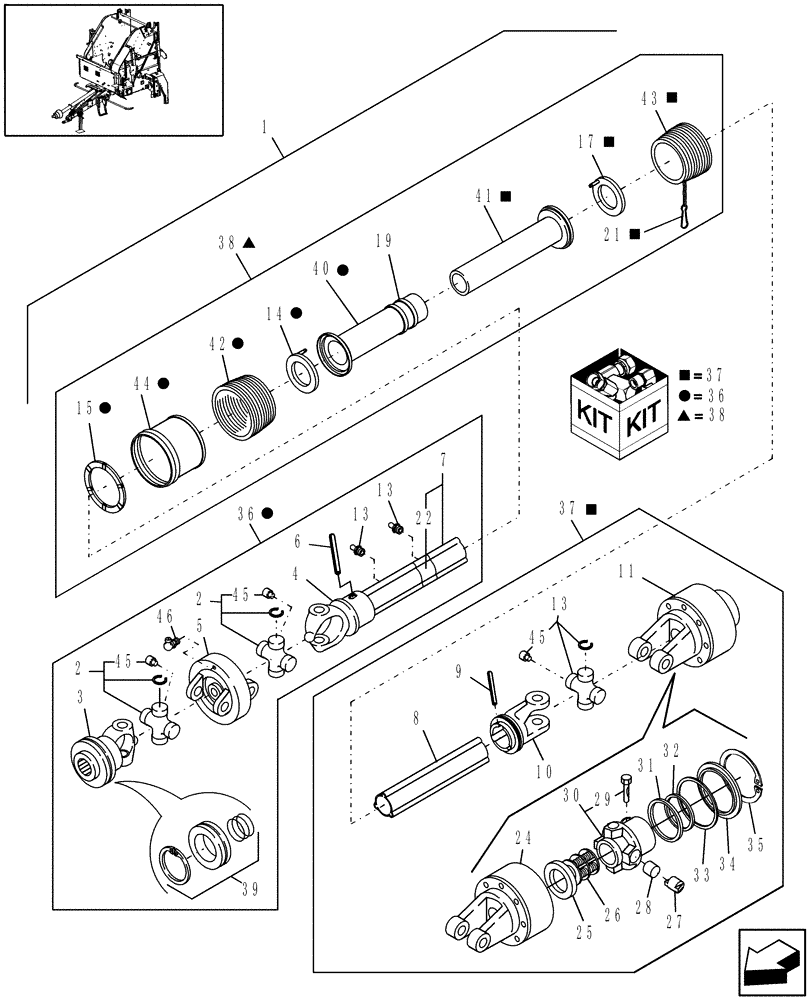

Схема запчастей Case IH RBX453 - (01.41) - POWER TAKE OFF, 540 RPM, CUT-OUT CLUTCH, EUROPE & R.O.W., P.I.N. Y6N016414 & AFTER (01) - POWER TAKE OFF
45
10
43
30
38
33
31
27
37
45
14
13
15
28
5
6
25
3
38
36
7
41
9
22
19
45
40
42
1
32
13
8
36
17
26
34
46
2
44
4
35
37
29
24
13
21
39
2
11

Артикул

Название

Примечание

Количество

1

87516690

PTO

540 RPM, Cut-Out Clutch, 540 RPM

1шт.

2

87517823

BEARING ASSY

1шт.

3

87517822

YOKE

1шт.

4

87517824

YOKE

1шт.

5

87517825

YOKE

1шт.

6

87517826

ROLL PIN,10.5mm OD x 95mm L

1шт.

7

87517827

OUTER SHIELD

1шт.

8

87517828

INNER SHIELD

1шт.

9

84036368

ROLL PIN

1шт.

10

87517829

YOKE

1шт.

11

86979195

CLUTCH

Cutout, 1700 NM

1шт.

12

87018244

CROSS

1шт.

13

87012758

LUBE NIPPLE

LUBRICATOR

1шт.

14

87517831

BEARING COVER,89.4 mm ID x 132 mm OD x 12 mm

1шт.

15

87517832

BEARING COVER,128.4 mm ID x 187 mm OD x 11 mm

1шт.

16

PL

PROCURE LOCALLY

Screw, Used to attach Ref. 42 to Ref. 44

12шт.

Not Illustrated

1шт.

17

86979196

BEARING,86mm ID x 132mm OD x 12mm H

1шт.

18

NSS

NOT SOLD SEPARAT

6шт.

19

87517838

COLLAR ASSY.

1шт.

20

NSS

NOT SOLD SEPARAT

2шт.

21

86979198

CHAIN,229mm L

Safety

1шт.

22

849472

DANGER DECAL

English

1шт.

22

849483

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

23

86520950

DECAL

WARNING, PTO

1шт.

24

NSS

NOT SOLD SEPARAT

1шт.

25

NSS

NOT SOLD SEPARAT

1шт.

26

87051166

SPRING KIT

Pack, 1700 Nm

1шт.

27

87039014

PLUG

1шт.

28

87039015

SLEEVE

1шт.

29

86625865

KIT

Tapered

1шт.

30

NSS

NOT SOLD SEPARAT

1шт.

31

NSS

NOT SOLD SEPARAT

1шт.

32

NSS

NOT SOLD SEPARAT

1шт.

33

NSS

NOT SOLD SEPARAT

1шт.

34

NSS

NOT SOLD SEPARAT

1шт.

35

87039016

SNAP RING,M138

1шт.

36

87518984

FRONT PTO ASSY

1шт.

37

87518986

REAR PTO ASSY

1шт.

38

87518987

REPAIR KIT

1шт.

39

87018800

KIT

1шт.

40

NSS

NOT SOLD SEPARAT

Shield, Outer

1шт.

41

NSS

NOT SOLD SEPARAT

Shield, Inner

1шт.

42

NSS

NOT SOLD SEPARAT

Cover

1шт.

43

NSS

NOT SOLD SEPARAT

Cover

1шт.

44

NSS

NOT SOLD SEPARAT

Shield

1шт.

45

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.

46

933205R91

LUBE NIPPLE,90 Degree, M8 x 1.25

1шт.

Выбрано товаров: 49
