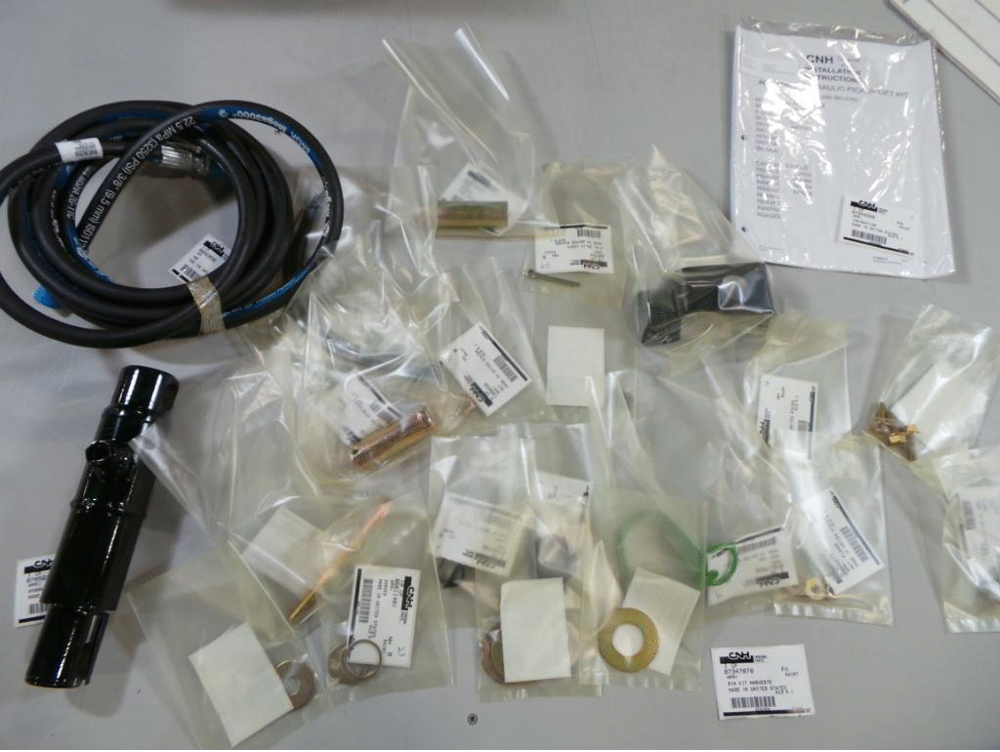

Запчасти Case IH RBX453 (19.14) - KIT CNH HYD PU LIFT (18) - ACCESSORIES

1

87347870

DIA KIT, HARVESTER

Incl 2 - 23

1шт.

2

87684215

INSTRUCTION

1шт.

3

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

4

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

1шт.

5

87017806

DUST CAP,Green

1шт.

6

263117

CABLE TIE,292.1mm L, Nylon, Black

6шт.

7

87016310

SPACER

1шт.

8

86836356

HOSE,9.53mm ID x 4673.6mm L, SAE 100R17

1шт.

9

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

10

261066

ORIFICE,9/16" - 18, 0.813" Orifice

1шт.

11

87056843

HYDRAULIC CYLINDER,38.1mm Rod, 76.2mm Stroke

1шт.

12

86705824

CHANNEL

1шт.

13

514112

PIN

1шт.

14

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

15

309308

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

1шт.

16

86611401

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

1шт.

17

86637848

WASHER,13.5mm ID x 38.1mm OD x 3.68mm Thk

1шт.

18

27318

WASHER,26mm ID x 51mm OD x 1.5mm Thk

1шт.

19

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

21

100038

NUT,M12 x 1.75, Cl 8

1шт.

22

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

23

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.
