Запчасти Case IH RBX453 (18.99) - HYDRAULIC ROTOR CUTTER REVERSE KIT (18) - ACCESSORIES

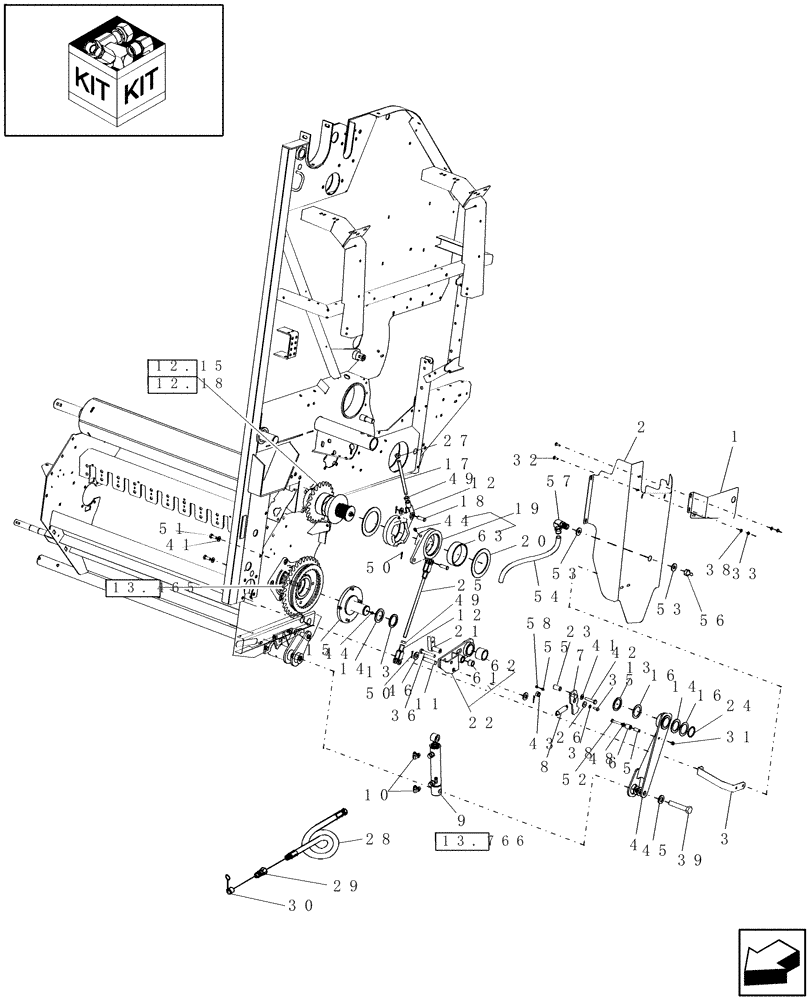

Схема запчастей Case IH RBX453 - (18.99) - HYDRAULIC ROTOR CUTTER REVERSE KIT (18) - ACCESSORIES
27
35
16
17
22
50
25
38
38
44
1
31
46
20
33
49
45
56
53
53
43
39
10
49
12
26
42
4
14
44
16
24
7
50
41
51
9
36
8
21
54
6
57
41
52
3
28
5
13
15
55
18
14
58
32
62
63
19
61
12
48
23
12.15
2
13
30
29
11
13.766
13.465
12.18

Артикул

Название

Примечание

Количество

84193515

KIT

Hydaulic Rotor Cutter Reverse, Includes: Ref. 1 - 54 & Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

1

87026972

CAP

Starter Roll, RH

1шт.

2

87055153

SHIELD

RH Rotor

1шт.

3

87010865

STRAP

1шт.

4

87039703

SUPPORT ASSY.

1шт.

5

86634543

SPACER

1шт.

6

87023405

SPACER,13.64mm ID x 19.18mm OD x 22.9mm L

1шт.

7

87014389

TRIP ARM

1шт.

8

32306

SPRING

1шт.

9

87029395

CYLINDER ASSY.,Double Acting, 19.05mm Rod, 119.89mm Stroke

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring, 3/8" Tube

2шт.

11

142823

CLEVIS PIN

1шт.

12

86627455

CLEVIS,1/2" - 20

3шт.

13

72022

WASHER

2шт.

14

762217

WASHER

2шт.

15

87013009

HUB

1шт.

16

26224

WASHER

1шт.

17

86705722

THREADED ROD

1/2"-20 x 7-7/8"

1шт.

18

76877

CLEVIS PIN,12.6mm OD x 34.52mm L

2шт.

19

86705574

HUB

Outer

2шт.

20

86630617

WASHER

2шт.

21

87013010

DOG

1шт.

22

87039706

ARM ASSY.

1шт.

23

87013172

SPACER

1шт.

24

100-11175

SNAP RING,#175, Ext

1шт.

25

86705723

THREADED ROD

1/2"-20 x 11"

1шт.

26

213137

WASHER,6.76mm ID x 25.4mm OD x 3.17mm Thk

1шт.

27

29790

NUT,1/2" - 20

1шт.

28

86635085

HOSE

2шт.

29

9801618

QUICK MALE COUPLING,1/2" - 14

Male, 1/2"-14 NPTF

2шт.

30

87017808

DUST CAP

2шт.

31

832-46408

NUT,M8 x 1.25, Cl 8

Shearbolt, Floor Roll, Rotor Units

1шт.

32

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

4шт.

33

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

35

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

36

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

38

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

39

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

41

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

42

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

43

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

44

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

45

495-11081

WASHER,3/4", SAE

4шт.

46

495-11066

WASHER,5/8", SAE

2шт.

48

495-11034

WASHER,5/16", SAE

1шт.

49

87309

JAM NUT,Jam, 1/2"-20, G2

3шт.

50

432-816

COTTER PIN,1/8" x 1"

6шт.

51

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

52

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

53

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

54

87014413

TUBE,4.80 mm OD x 1850 mm L

Plastic, 3/16" x 4.9', Lube Line

4шт.

55

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: Ref. 59 & 60

1шт.

56

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

1шт.

57

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

Male, Includes: Ref. 59 & 60

1шт.

58

86580291

ADAPTER,1/8" - 27 x 1/4" - 28

Straight

1шт.

59

13362

SLEEVE,Compression, 3/16" Tube

1шт.

Not Illustrated

1шт.

60

13367

NUT,3/8" - 24

1шт.

Not Illustrated

1шт.

61

619248

BUSHING

1шт.

62

65553

BUSHING,44.53mm ID x 47.65mm OD x 31.75mm L

1шт.

63

86577603

BUSHING,98.6mm ID x 103.18mm OD x 25.4mm L

1шт.

Выбрано товаров: 64
