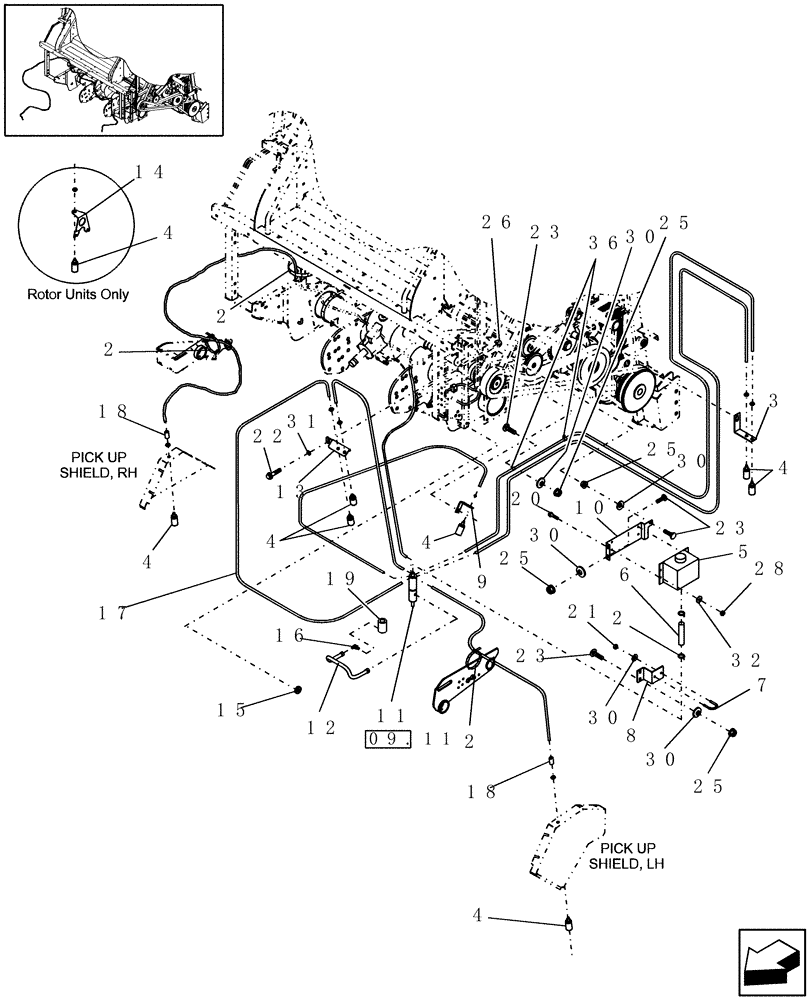

Запчасти Case IH RBX453 (18.92) - CHAIN OILER KIT (18) - ACCESSORIES

1

86643870

DIA KIT, HARVESTER

Chain Oiler, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

249730

SECURING STRAP,8" L

1/8" x 8"

15шт.

3

86631455

ANGLE

1шт.

Use Existing Hardware & Coupler

1шт.

3

87013976

ANGLE

Offset

1шт.

Offset Bracket Used Only on Balers Equipped with a Standard Pickup

1шт.

4

9822519

COMMUTATOR BRUSH

8шт.

5

9822520

RESERVOIR, HYDRAULIC

1шт.

6

87037450

HOSE

5/8" OD x 12"

1шт.

7

86977434

U-BOLT,5/16" - 20 x 1.94" W x 2.50" L

5/16"-18, 1-15/16" W x 2-1/2" L

1шт.

8

86618630

ANGLE

1шт.

9

86618552

ANGLE

1шт.

Use Existing Hardware & Coupler

1шт.

10

87023511

MOUNTING PARTS

Tank

1шт.

11

87040807

PUMP

Chain Oiler

1шт.

12

850420

FLEXIBLE HOSE

1шт.

13

86618553

ANGLE

Offset

1шт.

14

86643948

BRACKET

1шт.

Rotor Units Only

1шт.

15

625670

GROMMET

1шт.

16

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Includes: O-Ring, 1/4" Tube

1шт.

17

9848970

PLASTIC-RUBBER TUBE,3.96mm OD x 10973mm L

Lube, .156" OD x 10'

1шт.

18

86521981

REDUCER,5/32" Hose Barb x 5/32" Hose Barb

Dbl. Barbed

2шт.

20

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

4шт.

21

425-105

NUT,5/16"-18, G5

2шт.

22

844-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 8.8

1шт.

23

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

5шт.

25

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

5шт.

26

9804279

FLANGE NUT,Hex, M12, Cl 8

1шт.

27

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

1шт.

Not Illustrated

1шт.

28

832-46406

NUT,M6 x 1, Cl 8

4шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

31

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

32

495-21031

WASHER,1/4"

4шт.

33

425-108

NUT,1/2" - 13, Gr 5

1шт.

Not Illustrated

1шт.

36

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

2шт.

37

86559259

SPACER

1шт.

Not Illustrated

1шт.
