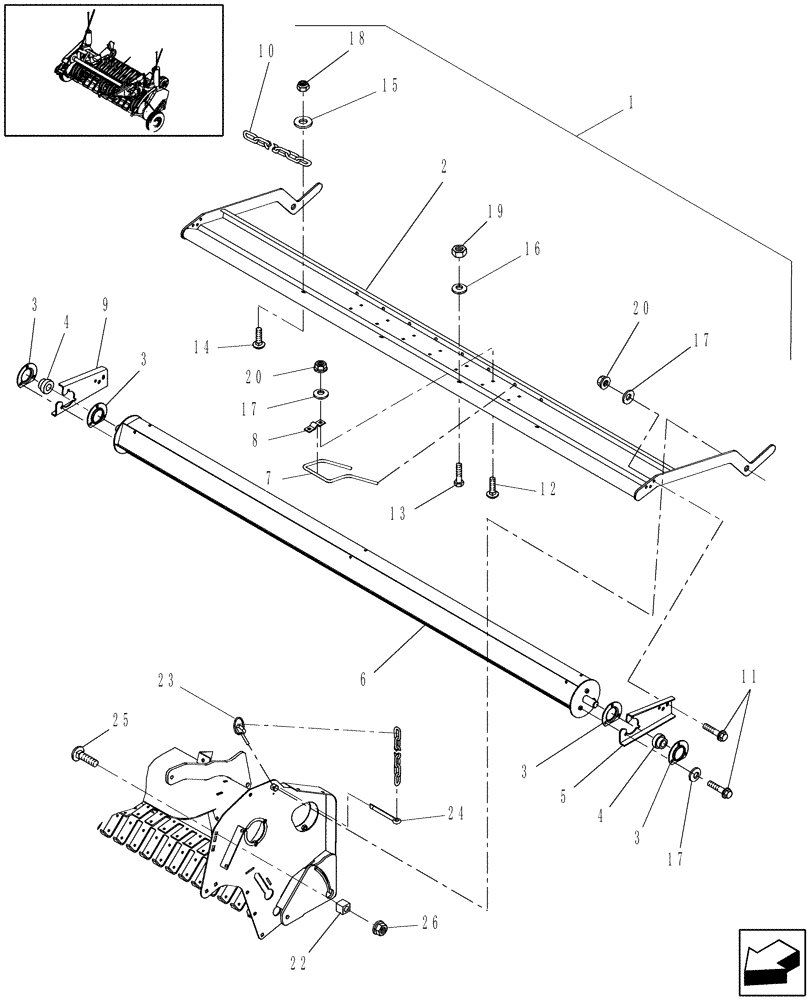

Запчасти Case IH RBX453 (18.72) - 2M WIDE PICKUP, ROLLER WINDGUARD KIT, NORTH AMERICA, (WINDGUARD PLATE & ROLLER) (18) - ACCESSORIES

1

87758489

DIA KIT, HARVESTER

2M ROTOR WINDGUARD ROLLER KIT, North America WINDGUARD PLATE & ROLLER

1шт.

2

87040291

WINDGUARD

1шт.

3

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

4шт.

4

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

5

87039203

ARM

1шт.

6

47393437

ROLLER,146mm OD x 2270mm L

1шт.

7

87040022

FINGER

3шт.

8

86637855

PLATE

3шт.

9

87039204

END PLATE

1шт.

10

87027237

CHAIN,18 Links x 37.2mm = 670mm L

2шт.

11

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

12

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6шт.

13

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

14

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

15

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

18

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

19

100016

NUT,M10 x 1.5, Cl 8

2шт.

20

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

12шт.

21

86619595

DECAL

Stripe

2шт.

22

44612

SPACER

2шт.

23

86508947

LINCH PIN,18.8mm OD

Klik

2шт.

24

80756

COTTER PIN,1/8" x 3/4"

2шт.

25

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

26

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.
