Запчасти Case IH RBX453 (18.31) - FIRE EXTINGUISHER KIT (18) - ACCESSORIES

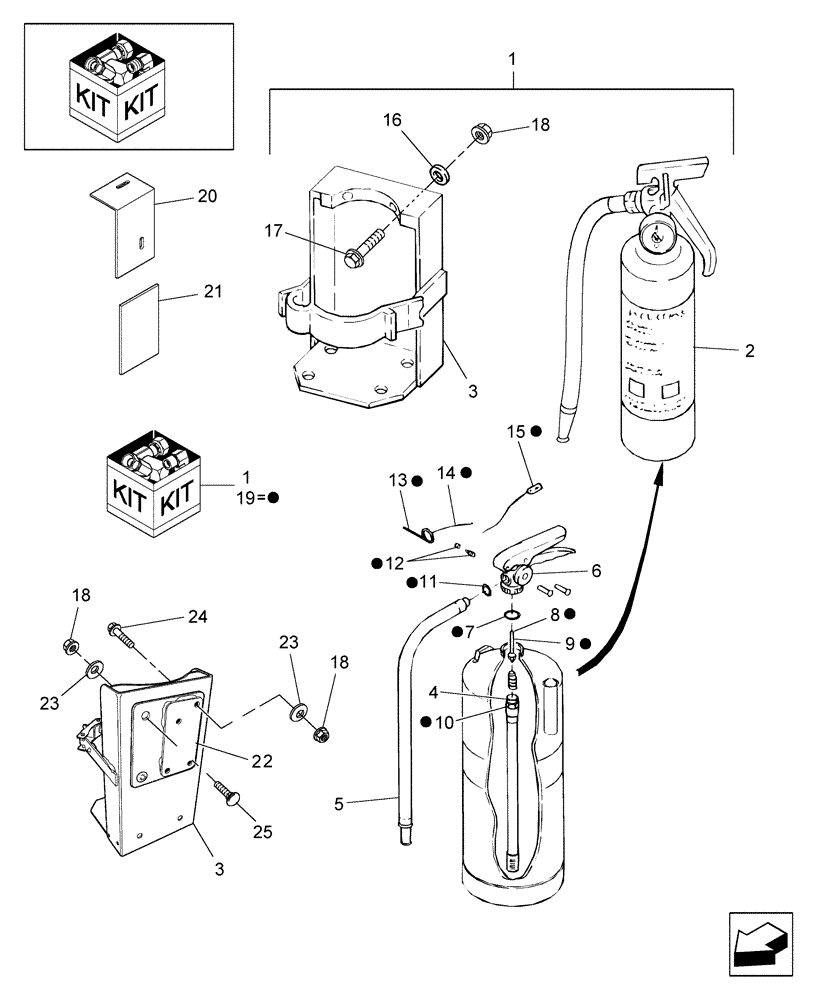

Схема запчастей Case IH RBX453 - (18.31) - FIRE EXTINGUISHER KIT (18) - ACCESSORIES
8
12
14
4
23
1
7
10
23
21
11
16
20
24
18
9
2
17
3
13
22
18
18
19
3
5
1
25
6
15

Артикул

Название

Примечание

Количество

1

86705052

DIA KIT, HARVESTER

Fire Extingusher, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

9827423

FIRE EXTINGUISHER,Classification A

1шт.

3

86642642

MOUNTING PARTS

1шт.

4

9843201

TUBE

Down

1шт.

5

9843202

FLEXIBLE HOSE

1шт.

6

9843203

GAUGE

100 PSI

1шт.

7

NSS

NOT SOLD SEPARAT

Collar, O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Valve Stem, O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Valve Stem, O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Down Tube, O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Pressure Valve & Cap

1шт.

13

NSS

NOT SOLD SEPARAT

Pin, Ring

1шт.

14

NSS

NOT SOLD SEPARAT

Chain, Nylon

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

16

495-21038

WASHER,5/16"

8шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

18

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

19

9843204

REPAIR KIT

1шт.

20

86642633

ANGLE

Stabilizing

1шт.

21

93444

SEALING STRIP

1шт.

22

87048724

SUPPORT

1шт.

Used on Models RBX453, RBX463, RBX553 & RBX563

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

Used on Models RBX453, RBX463, RBX553 & RBX563

1шт.

24

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

Used on Models RBX453, RBX463, RBX553 & RBX563

1шт.

25

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.

Used on Models RBX453, RBX463, RBX553 & RBX563

1шт.

Выбрано товаров: 30
