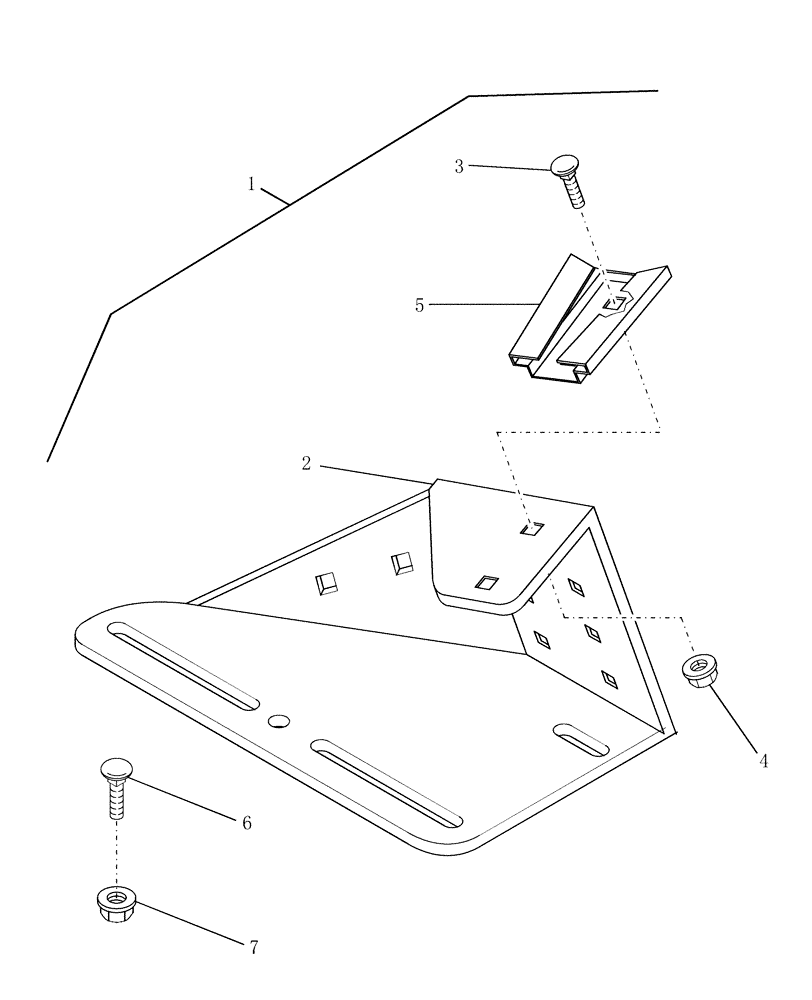

Запчасти Case IH RBX453 (18.24) - CONTROL BOX MOUNT KIT (18) - ACCESSORIES

1

86618466

DIA KIT, HARVESTER

Control Box Mount, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

86622259

BRACKET

1шт.

3

905-8020

BOLT,Hex Flg, M8 x 20mm

6шт.

4

825-5148

SERRATED NUT,M8, Flg Ser

6шт.

5

847590

BRACKET

Socket

1шт.

6

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.
