Запчасти Case IH RBX453 (18.02) - HIGH HITCH KIT (18) - ACCESSORIES

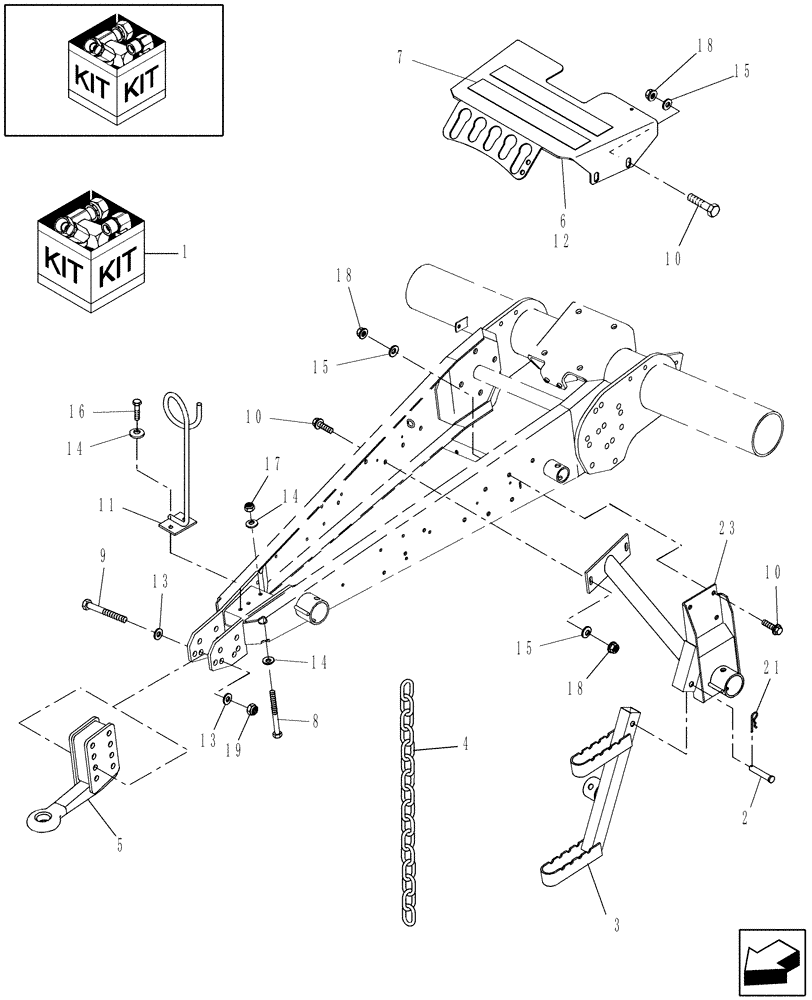

Схема запчастей Case IH RBX453 - (18.02) - HIGH HITCH KIT (18) - ACCESSORIES
9
18
qty
15
6
15
14
18
10
5
21
13
18
10
10
8
14
23
12
1
2
3
14
13
17
4
16
7
15
11
x
19

Артикул

Название

Примечание

Количество

1

87347912

DIA KIT, HARVESTER

High Hitch, Includes: Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

270135

CLEVIS PIN

1шт.

3

86979534

STEP

1шт.

4

264035

CHAIN

1шт.

5

87023114

HITCH

Ring

1шт.

6

87756951

STEP

High Hitch, BR & BR-A Series Balers Only

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

7

263636

ANTI-SKID STRIP

2шт.

8

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

2шт.

9

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

4шт.

10

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

10шт.

11

87042252

SUPPORT

1шт.

12

87556966

STEP

High Hitch, BR7000 Series Balers Only

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

13

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

8шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

16

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

18

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

19

86000441

NUT,M16 x 2.0, Cl 8

Prevailing Torque

4шт.

20

129365

COTTER PIN

.094" x 2-5/16"

1шт.

21

86625813

TUBE

1шт.

Выбрано товаров: 24
