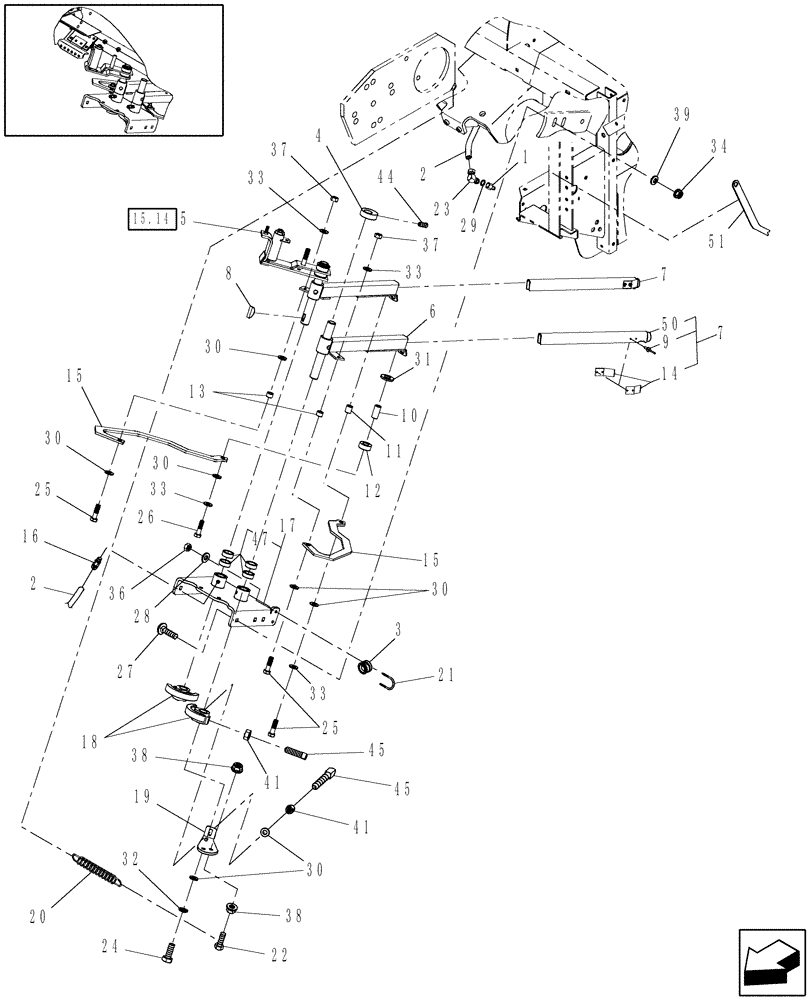

Запчасти Case IH RBX453 (15.10) - TWINE ARM (15) - KNOTTER /WRAPPER

1

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

2шт.

2

87014413

TUBE,4.80 mm OD x 1850 mm L

Plastic, 3/16" x 4.9', Lube Line

1шт.

3

86543545

GUIDE

2шт.

4

87026071

COLLAR ASSY.

Eccentric

1шт.

5

NSS

NOT SOLD SEPARAT

Bracket, Drive

1шт.

6

87010314

PIVOT

LH

1шт.

7

87049557

TUBE

Twine

2шт.

8

126-24

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

9

86637656

RIVET,Pop, 1/8" x .337"

8шт.

10

86634543

SPACER

1шт.

11

86631586

SPACER,9.8mm ID x 12.7mm OD x 16.76mm L

1шт.

12

45455

SPACER,13.5mm ID x 25.4mm OD x 9.5mm Thk

17/32" ID x 1" OD x 3/8"

1шт.

13

264513

SPACER

Bushing, 1/2" OD x 5/16"

2шт.

14

87050864

LEAF SPRING

4шт.

15

86637275

ARM

2шт.

16

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: Ref. 48 & 49

1шт.

17

86626269

CHANNEL

1шт.

18

86636677

GEAR

2шт.

19

87043388

MOUNTING PARTS

1шт.

20

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

Extension

1шт.

21

28114

U-BOLT

#10-24 x 1-15/16"

2шт.

22

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

23

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

2шт.

24

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

25

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

26

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

27

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

4шт.

28

495-31022

WASHER,#10

4шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

30

495-11034

WASHER,5/16", SAE

9шт.

31

495-11053

WASHER,1/2", SAE

1шт.

32

492-11031

LOCK WASHER,5/16"

1шт.

33

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

34

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

36

88826

LOCK NUT,#10-24, GA

4шт.

37

825-1408

NUT,M8, Cl 8

2шт.

38

84807411

THIN NUT,Thin, M10 x 1.5, Cl 04

2шт.

39

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

41

9626568

JAM NUT,Jam, 5/16"-18, G2

4шт.

44

86512758

SET SCREW,5/16" - 18 x 5/8"

Cup Pt

1шт.

45

86542821

SET SCREW,Sq Hd, 5/16"-18 x 7/8"

Cup Pt

4шт.

47

182294

DRIVE BUSHING,25.1mm ID x 28.6mm OD x 25.4mm L

4шт.

48

13362

SLEEVE,Compression, 3/16" Tube

1шт.

Not Illustrated

1шт.

49

13367

NUT,3/8" - 24

1шт.

Not Illustrated

1шт.

50

NSS

NOT SOLD SEPARAT

Twine Tube

2шт.

51

87049604

TOOL

Twine Threading

1шт.
