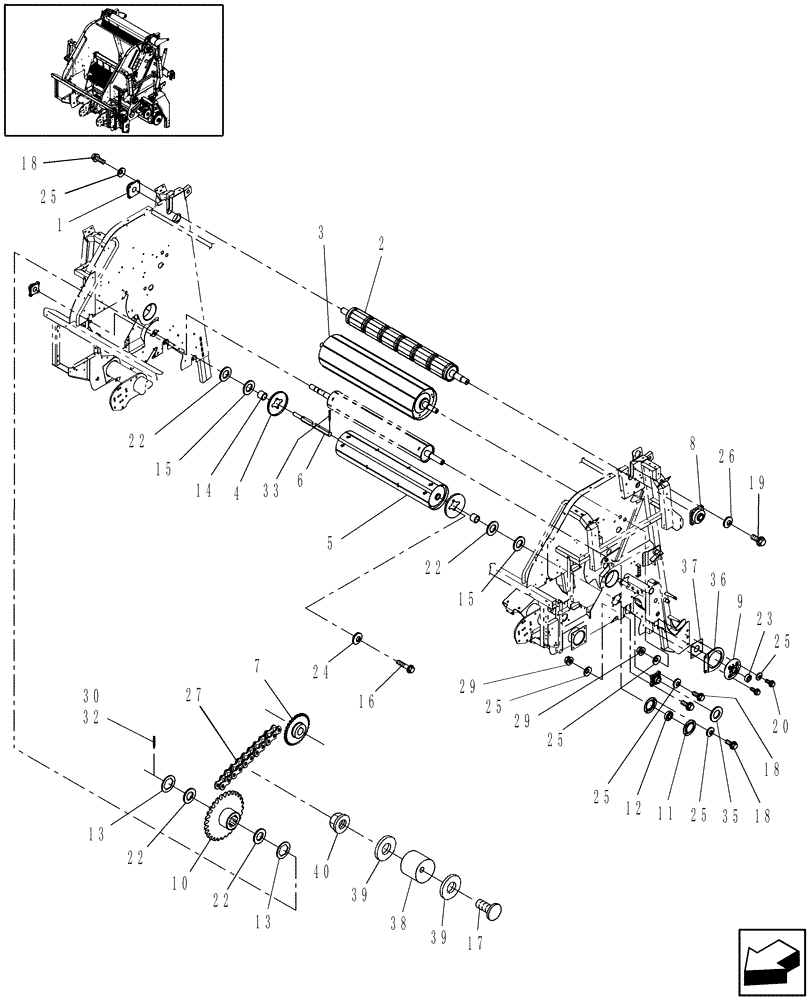

Запчасти Case IH RBX453 (14.52[2]) - MAIN FRAME & ROLLS, STUFFER FEEDER (14) - BALE CHAMBER

1

86609558

BEARING ASSY,45mm ID

1.772" ID

1шт.

2

86635441

ROLL

Drive

1шт.

3

87660299

FEED ROLLER

Floor, Includes: Round Rods

1шт.

4

87602845

SHIELD

Trash

2шт.

5

87660302

ROLL

Fixed Dimple

1шт.

6

87056540

SHAFT

1шт.

7

87660330

SPROCKET

28T

2шт.

8

86978595

BEARING ASSY

1.969" ID

1шт.

9

87027838

BEARING ASSY

40mm ID, Round

2шт.

10

87056511

SPROCKET

28T, RC60

1шт.

11

86837676

FLANGED BEARING

4шт.

12

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

1-1/2" Hex Bore

2шт.

13

87056525

WASHER

1шт.

14

86622263

HUB

2шт.

15

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

Plated

1шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

17

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

1шт.

18

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

20шт.

19

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

8шт.

20

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

22

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

4/ARшт.

23

87384472

COLLAR

2шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

28шт.

26

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

27

86621149

CHAIN,60, 57 Links x 19.05mm = 1085.85mm

1шт.

29

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

30

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

1шт.

Install Ref. 30 Inside Ref. 32

1шт.

32

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

33

87400

COTTER PIN,3/16" x 2"

1шт.

35

86976003

SPACER

1шт.

36

87660305

PIVOT PLATE

2шт.

37

87660306

WEAR PLATE

4шт.

38

86514717

IDLER WHEEL

1шт.

39

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

40

100038

NUT,M12 x 1.75, Cl 8

English

1шт.
