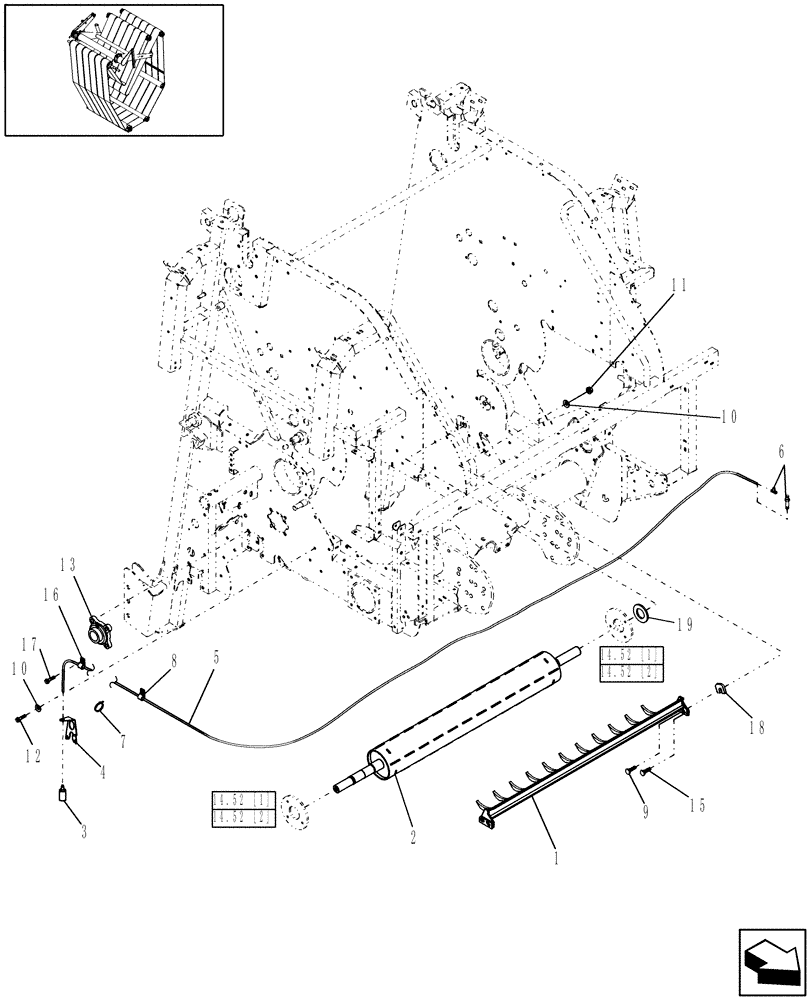

Запчасти Case IH RBX453 (14.19) - STARTER ROLL & RAKE, ROTOR, EUROPE (14) - BALE CHAMBER

1

86836619

RAKE

1шт.

2

86635405

ROLL

Starter

1шт.

3

9822519

COMMUTATOR BRUSH

1шт.

4

86643948

BRACKET

1шт.

5

PL

PROCURE LOCALLY

Tube, Nylon, 8'

1шт.

6

87042326

HOLDER

1шт.

7

249730

SECURING STRAP,8" L

1/8" x 8"

1шт.

8

675162

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

9

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

11

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

12

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

13

86610638

BEARING ASSY,45mm ID

2шт.

15

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

2шт.

16

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

1шт.

17

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1шт.

18

122889

SHIM

.015"

4шт.

19

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

1шт.

Required Only When Using Cast Starter Roll Bearings. Not Required with Flanged Starter Roll Bearings.

1шт.
