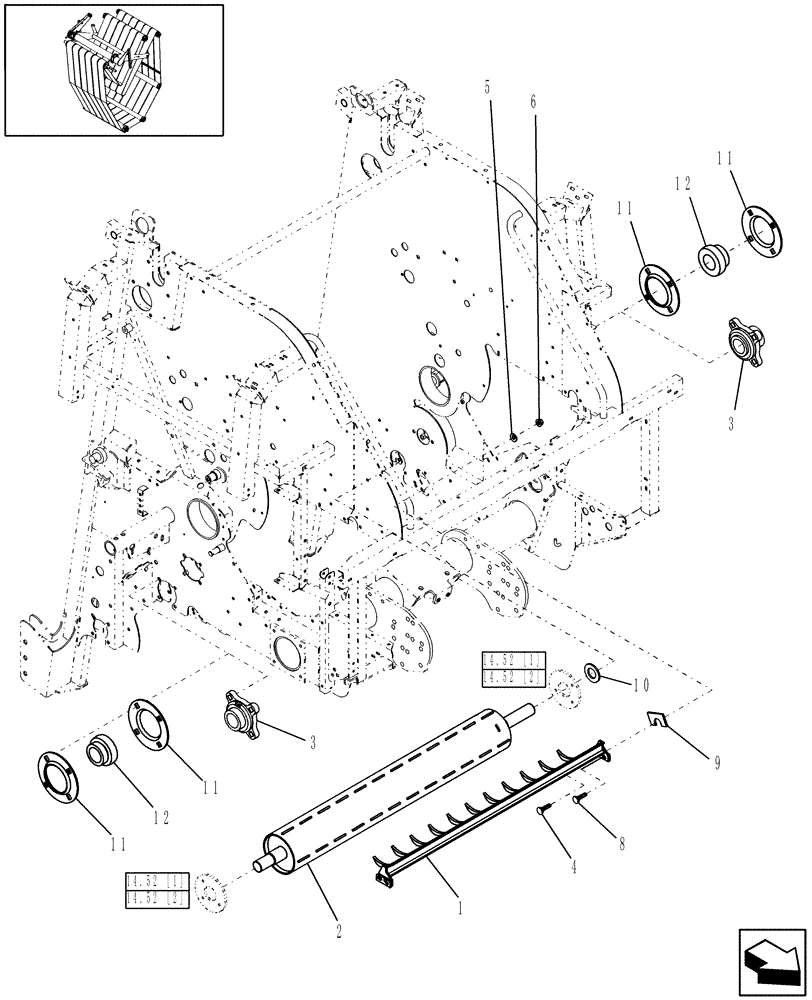

Запчасти Case IH RBX453 (14.13) - STARTER ROLL & RAKE, STUFFER FEEDER, EUROPE & R.O.W. (14) - BALE CHAMBER

1

86836619

RAKE

1шт.

2

86635406

ROLL

Starter

1шт.

3

86610638

BEARING ASSY,45mm ID

2шт.

Prior to P.I.N. Y6N016413

1шт.

4

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

6

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

8

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

2шт.

9

122889

SHIM

.015"

1шт.

10

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

1шт.

Required Only When Using Cast Starter Roll Bearings. Not Required with Flanged Starter Roll Bearings.

1шт.

Prior to P.I.N. Y6N016413

1шт.

11

86837676

FLANGED BEARING

4шт.

P.I.N. Y6N016414 & After

1шт.

12

86978603

BEARING ASSY,45mm ID x 85mm OD x 22mm W

& Collar

2шт.

P.I.N. Y6N016414 & After

1шт.
