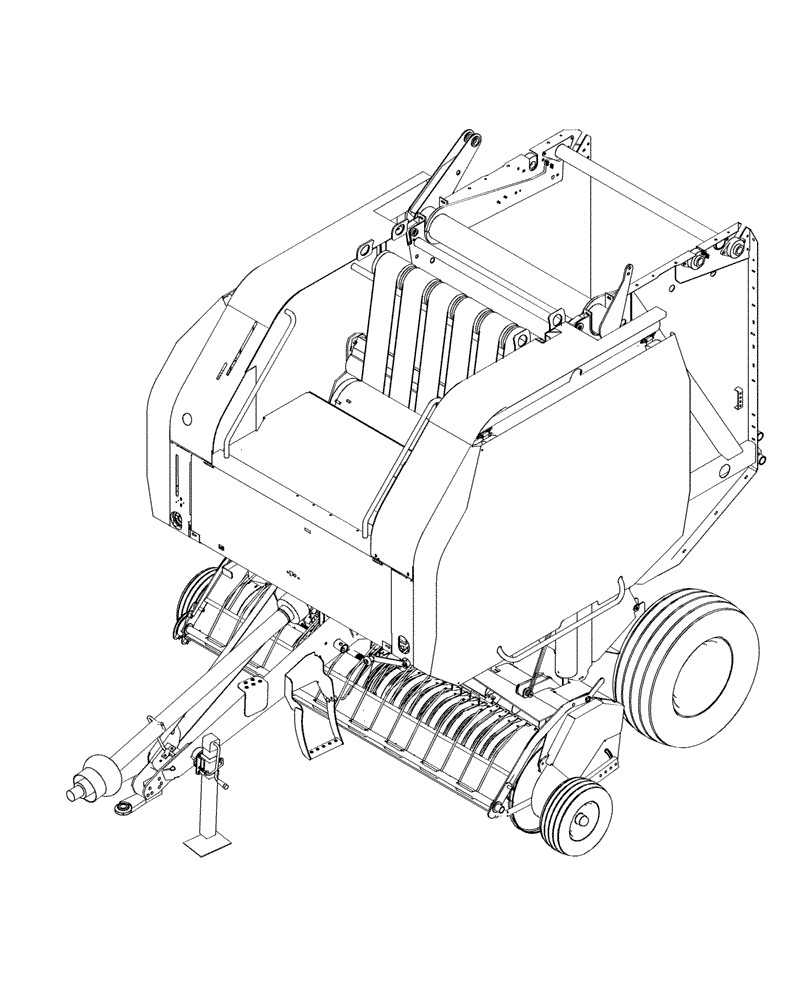

Запчасти Case IH RBX453 (PARTS[RBX453]) - DEALER PARTS STOCKING LIST FOR 5 MACHINES (00) - GENERAL

27291

BALL BEARING,20mm ID x 47mm OD x 14mm W

Net Wrap Units

6шт.

27639

BUSHING,31.83mm ID x 38.19mm OD x 25.4mm L

2шт.

54770

BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm

4шт.

66614

SPROCKET,RC80, 13T

13T, Includes: Bearing 144819C91

2шт.

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Sledge Clutch

2шт.

133941

BALL BEARING,44.45mm ID x 84.99mm OD x 22mm W

RH Dimple Rolls

2шт.

214366C91

BALL BEARING,25.40mm ID x 52mm OD

Ball

4шт.

412441

ROLLER BEARING,40mm ID x 80mm OD x 21mm W, Round Bore

1шт.

617945

KNIFE SECTION

Twine Cutting

2шт.

638025

FLANGE

4шт.

857072

GAUGE

3,000 PSI, Bale Density

1шт.

9803325

SUPPORT

Dimple Roll

1шт.

9806864

KNIFE,382mm L x 38.1mm W x 3.4mm Thk

Net Wrap

3шт.

9806931

IDLER GEAR,17T

17T, Sledge Roll Drive

1шт.

9808112

BALL BEARING,34.99mm ID x 71.88mm OD x 25mm W

Sledge Roll Drive

2шт.

9845575

SCRAPER BLADE

1шт.

9845576

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

9847138

REPAIR KIT

Lacing, Includes: Box of 18 Cards, 45 Hooks per Card

1шт.

9848970

PLASTIC-RUBBER TUBE,3.96mm OD x 10973mm L

Lube, .156" OD x 10'

1шт.

Europe & R.O.W.

1шт.

84015292

LATCH

Front & Side Door Latch

1шт.

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

4шт.

86553396

BEARING ASSY,30.23mm ID x 90mm OD x 30.2mm W, SQUARE BORE

Follower Roll

2шт.

86586336

SEAL KIT

2шт.

86590751

BEARING ASSY,40mm ID

Includes: 563733 Lock Collar

2шт.

86590753

BEARING ASSY

Endless Belt Units

2шт.

86594422

SENSOR

Tailgate & Rotor Knife

1шт.

86605351

SEAL KIT

Bale Density Cylinder

1шт.

86606298

BUSHING,30.12mm ID x 42.11mm OD x 42mm L

Wide Pickup, Two Segment Stuffer

2шт.

86606367

SEAL,30mm ID x 42mm OD x 7mm Thk

Wide Pickup, Two Segment Stuffer

2шт.

86609558

BEARING ASSY,45mm ID

Endless Belt Units

2шт.

86610638

BEARING ASSY,45mm ID

2шт.

86614686

GEAR

24T, Sledge Roll

1шт.

86617019

CAM FOLLOWER

4шт.

86621502

CLIP

1.8M & 2M Wide Pickups

1шт.

86625862

DISC

PTO Slip Clutch

2шт.

86625980

DIA KIT, HARVESTER

Lacing Cable, Includes: (18) Cable Tubes, (8) Lacing Cables & Instructions, NA & AUS Units

5шт.

86643381

GUARD

5шт.

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

1шт.

86978595

BEARING ASSY

Endless Belt

1шт.

86978603

BEARING ASSY,45mm ID x 85mm OD x 22mm W

2шт.

86984909

BUSHING

PTO Slip Clutch

1шт.

87010284

CAMSHAFT BEARING

Net Wrap

1шт.

87013989

KNIFE,445.8mm L x 38.1mm W x 3.4mm Thk

Net Wrap

4шт.

87014413

TUBE,4.80 mm OD x 1850 mm L

Plastic, 3/16" x 4.9', Lube Line

1шт.

87019854

SWITCH

Hall Effect

1шт.

87030468

HUB

2шт.

86632007

FINGER

36шт.

87041202

GUARD ASSY.

5шт.

87042211

BELT,177.80 mm W x 8712.20 mm L

Endless

1шт.

87042213

BELT,177.80 mm W x 1828.80 mm L

Endless, Chevron, Repair Section

1шт.

87055363

GUARD ASSY.

5шт.

Europe & R.O.W.

1шт.

87056534

BELT,177.80 mm W x 8712.20 mm L

Laced

1шт.

87056536

LACING, BELT

X Chevron, Repair Section, 72"

1шт.
