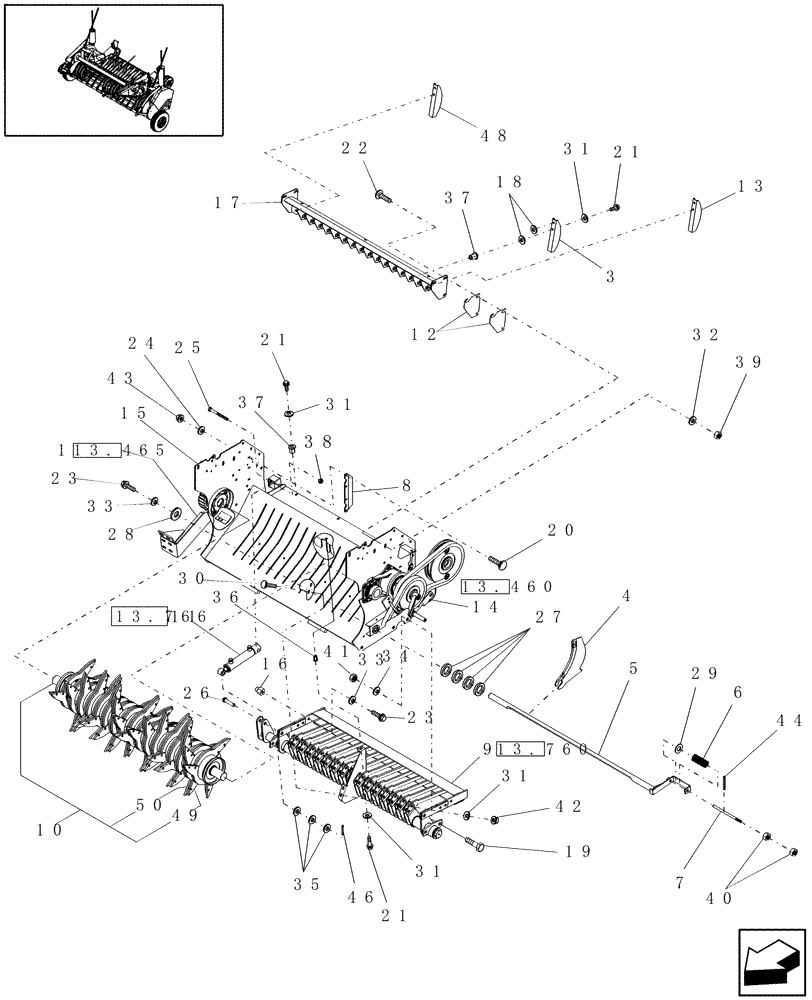

Запчасти Case IH RBX453 (13.705) - ROTOR CUTTER (13) - FEEDER

1

0C

ORDER COMPONENTS

Rotor Drive, RH

1шт.

3

87036957

PROTECTION STRIP

Center

16шт.

4

87036000

KNIFE

Heat-Treated

15шт.

Refer to Fig. 13.765, Ref. 34 for Dummy Knives

1шт.

4

87040884

KNIFE

Heat-Treated & Hard-Faced

15шт.

Refer to Fig. 13.765, Ref. 34 for Dummy Knives

1шт.

4

87040985

DIA KIT, HARVESTER

Knife, Includes: (15) 87040884 Heat-Treated & Hard-Faced

1шт.

Refer to Fig. 13.765, Ref. 34 for Dummy Knives

1шт.

5

86610126

SHAFT

1шт.

6

151990

SPRING,22.2mm OD x 127mm L

1шт.

7

84056189

PIN

1шт.

8

87037768

DEFLECTOR

2шт.

9

0C

ORDER COMPONENTS

Rotor Knife

1шт.

10

87036960

ROTOR

1шт.

11

87029395

CYLINDER ASSY.,Double Acting, 19.05mm Rod, 119.89mm Stroke

Rotor Knife

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

12

87036972

SHIM

1шт.

13

87043203

SUPPORT

Center, LH

1шт.

14

0C

ORDER COMPONENTS

Rotor Drive, LH

1шт.

15

87042510

FRAME ASSY

1шт.

16

84039310

HEX PLUG,44mm L

Int. Thread, M12 x 1.75

2шт.

17

87041390

GRILLE

1шт.

18

495-11034

WASHER,5/16", SAE

1шт.

19

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

4шт.

20

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

8шт.

21

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

45шт.

22

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

6шт.

23

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

17шт.

24

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

25

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

26

270134

CLEVIS PIN

5/8" x 2 -3/4"

1шт.

27

164995

WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk

1-1/4"

1шт.

28

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

29

495-11053

WASHER,1/2", SAE

5шт.

30

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.

31

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

47шт.

32

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

33

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

15шт.

34

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

35

273127

WASHER,16.67mm ID x 28.57mm OD x 7.37mm Thk

1-1/8" OD

3шт.

36

86610200

THREADED INSERT,M8 x 1.25

M8

1шт.

37

86610201

INSERT,M8

Threaded, M8

44шт.

38

231-41412

NUT,3/4"-10, GB

1шт.

39

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

6шт.

40

825-1412

NUT,M12, Cl 8

2шт.

41

825-1416

NUT,M16, Cl 8

4шт.

42

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

43

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

8шт.

44

838-5526

LOCK PIN,M5 x 26, Slotted

1шт.

46

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

48

87043204

SUPPORT

Center, RH

1шт.

49

87032628

FINGER

Large, 422 mm OD

17шт.

50

87032629

FINGER

Small, 399 mm OD

17шт.
