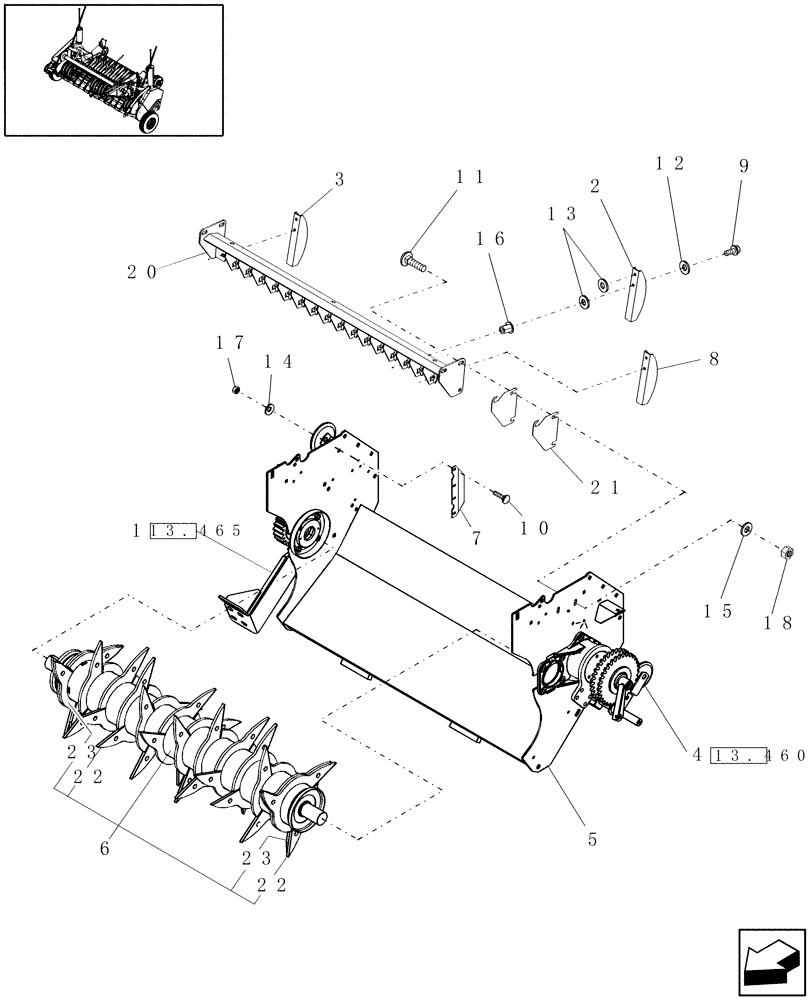

Запчасти Case IH RBX453 (13.620) - ROTOR FEEDER (13) - FEEDER

1

0C

ORDER COMPONENTS

Drive, Rotor, RH

1шт.

2

87036958

CHANNEL

11шт.

3

87043204

SUPPORT

RH

1шт.

4

0C

ORDER COMPONENTS

Rotor Drive, LH

1шт.

5

87046797

FRAME ASSY

Rotor

1шт.

6

87036974

ROTOR

Feeder, 5/16" Tk. Fingers - 1 Piece

1шт.

7

87037768

DEFLECTOR

2шт.

8

87043203

SUPPORT

LH

1шт.

9

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

26шт.

10

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

8шт.

10

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

8шт.

11

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

6шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

26шт.

13

495-11034

WASHER,5/16", SAE

1шт.

14

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

16

86610201

INSERT,M8

Threaded, M8

26шт.

17

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

8шт.

18

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

20

87046803

GRILLE

Includes: Ref. 19

1шт.

21

87036972

SHIM

4шт.

22

87032628

FINGER

Large, 422 mm OD

12шт.

23

87032629

FINGER

Small, 399 mm OD

2шт.
