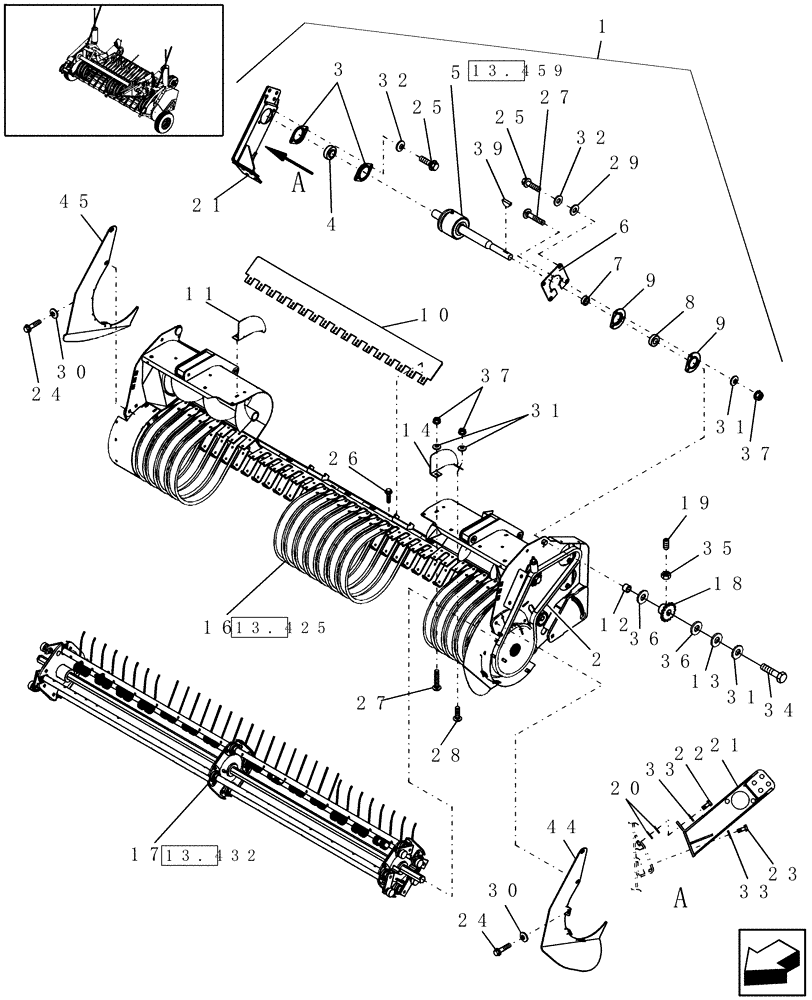

Запчасти Case IH RBX453 (13.430) - 2M WIDE PICKUP W/ ROTOR & CLUTCH, EUROPE & R.O.W. (13) - FEEDER

1

87056302

ROTOR

2M Wide Pickup, Rotor

1шт.

2

86552479

CHAIN,RC50, 100 Links x 15.88mm = 1587.5mm

1шт.

2

87741470

CHAIN,50, 100 Links x 15.88mm = 1587.5mm

Roller, Optional Heavy Duty, RC50, 100 Pitches, Includes: Connector Link 86537460

1шт.

3

165385

FLANGE,62 mm ID x 112.7 mm OD x 9.53 mm

Bearing

2шт.

4

617668R92

BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"

Ball

1шт.

5

0C

ORDER COMPONENTS

Overrun Clutch

1шт.

6

87042087

PLATE

1шт.

7

455102R21

COLLAR

Locking, Includes: Set Screw

1шт.

8

214366C91

BALL BEARING,25.40mm ID x 52mm OD

Ball

1шт.

9

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

Bearing

2шт.

10

87036776

FLOOR

Steel, Also Requires: Ref. 12, 13, 15 & 24.

1шт.

Prior to P.I.N. Y6N016706

1шт.

10

87050285

FLOOR,260mm W x 1150mm L, Polyurethane

Plastic, Also Requires: Ref. 28.

1шт.

P.I.N. Y6N016707 & After

1шт.

11

87045714

SHIELD

Upper, RH

1шт.

12

803349

HINGE

RH

2шт.

Prior to P.I.N. Y6N016706

1шт.

12

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

1шт.

P.I.N. Y6N016707 & After

1шт.

13

86610199

INSERT

Nut Threaded, M6

8шт.

Prior to P.I.N. Y6N016706

1шт.

13

36686

SPACER

1шт.

P.I.N. Y6N016707 & After

1шт.

14

87045713

SHIELD

Upper, LH

1шт.

15

803348

HINGE

LH

2шт.

Prior to P.I.N. Y6N016706

1шт.

16

0C

ORDER COMPONENTS

2M Wide Pickup

1шт.

17

0C

ORDER COMPONENTS

2M Tine Bar, Straight & Curved Pickup Tines

1шт.

18

86610143

SPROCKET

17T, RC 50, Standard

1шт.

18

87055082

SPROCKET

18T, RC 50, Optional

1шт.

Increases Pickup Reel Speed

1шт.

19

300483

SET SCREW,M10 x 25mm

2шт.

20

131405

SHIM

.025"

4шт.

21

87045521

LIFT ARM

LH

1шт.

22

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

23

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

24

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

14шт.

25

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

8шт.

27

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

3шт.

28

811-8016

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 16mm, Cl 8.8

2шт.

29

495-21044

WASHER,3/8"

4шт.

30

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

14шт.

31

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

32

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

33

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

34

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

P.I.N. Y6N016707 & After

1шт.

35

825-1410

NUT,M10, Cl 8

2шт.

36

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

3шт.

P.I.N. Y6N016707 & After

1шт.

37

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

5шт.

39

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

44

87053734

GUARD

LH

1шт.

Optional for Improved Feeding

1шт.

45

87053732

GUARD

RH

1шт.

Optional for Improved Feeding

1шт.
