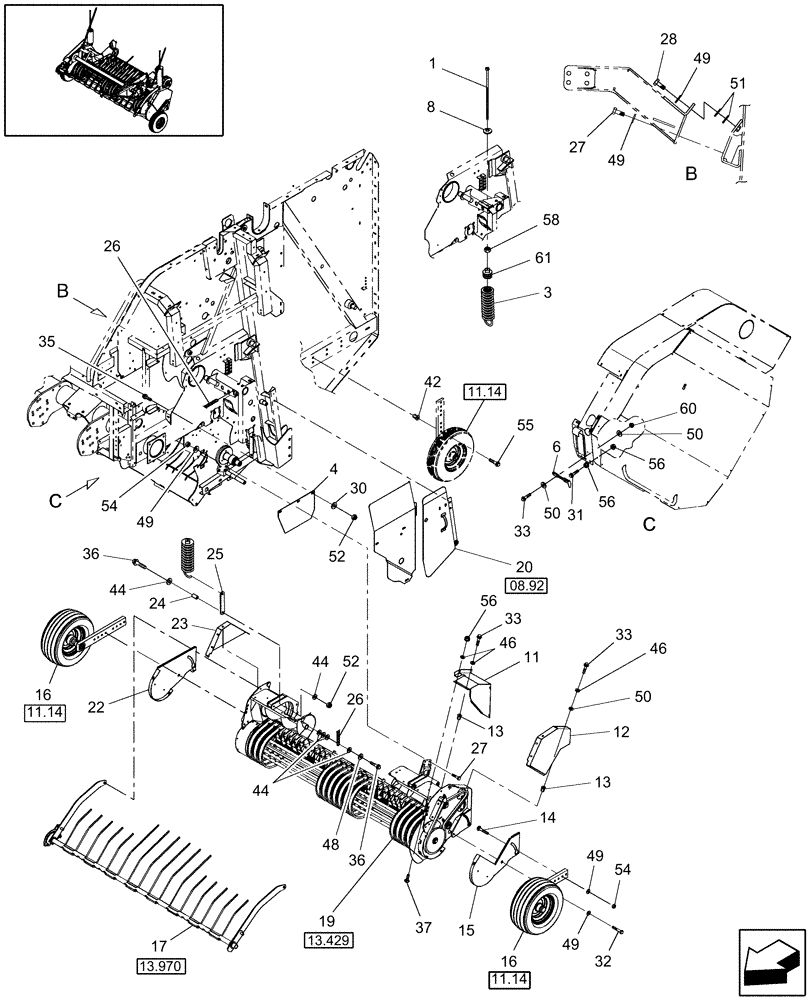

Запчасти Case IH RBX453 (13.414) - 2M WIDE PICKUP W/ ROTOR, NORTH AMERICA (13) - FEEDER

1

86632865

BOLT,444.50mm

1/2"-13 x 17-1/2" L

2шт.

3

86630851

SPRING

2шт.

4

86631989

SKIRT

Rotor

2шт.

6

86000448

LATCH

2шт.

7

165109

DECAL

Lube

1шт.

8

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

11

87045582

SHIELD

1шт.

12

86626278

SHIELD

Upper, LH

1шт.

13

86610198

INSERT,M6 x 1

Threaded, M6

13шт.

15

86626383

SHIELD

Lower, LH

1шт.

16

0C

ORDER COMPONENTS

Pickup Tire & Arm {87661830}

2шт.

Use Existing Hardware

1шт.

17

0C

ORDER COMPONENTS

Windguard

1шт.

86635750

1шт.

19

0C

ORDER COMPONENTS

2M Wide Pickup

1шт.

87056378

1шт.

20

0C

ORDER COMPONENTS

Shield, Rotor

1шт.

86642496

1шт.

22

86625649

SHIELD

Lower, RH

1шт.

23

87055752

SHIELD

Upper, RH

1шт.

24

705996

BUSHING

7/8" L

2шт.

25

86621725

STRAP

2шт.

26

86631510

CHAIN,850.9mm L

2шт.

27

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

8шт.

28

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

30

235126

WASHER,10.3mm ID x 38mm OD x 1.7mm Thk

Special

2шт.

31

844-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

35

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

6шт.

36

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

2шт.

37

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

39

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

2шт.

40

87020910

SPACER,10.4mm ID x 19mm OD x 8.9mm Thk

2шт.

44

495-21044

WASHER,3/8"

12шт.

46

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

20шт.

49

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

14шт.

50

495-21031

WASHER,1/4"

8шт.

51

131405

SHIM

.025"

1шт.

52

832-46410

NUT,M10 x 1.5, Cl 8

10шт.

54

825-1412

NUT,M12, Cl 8

8шт.

56

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

5шт.

58

425-288

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

60

832-46406

NUT,M6 x 1, Cl 8

4шт.
