Запчасти Case IH RBX453 (13.336) - 1.8M DUAL CAM WIDE PICKUP & STUFFER FEEDER, EUROPE & R.O.W. (13) - FEEDER

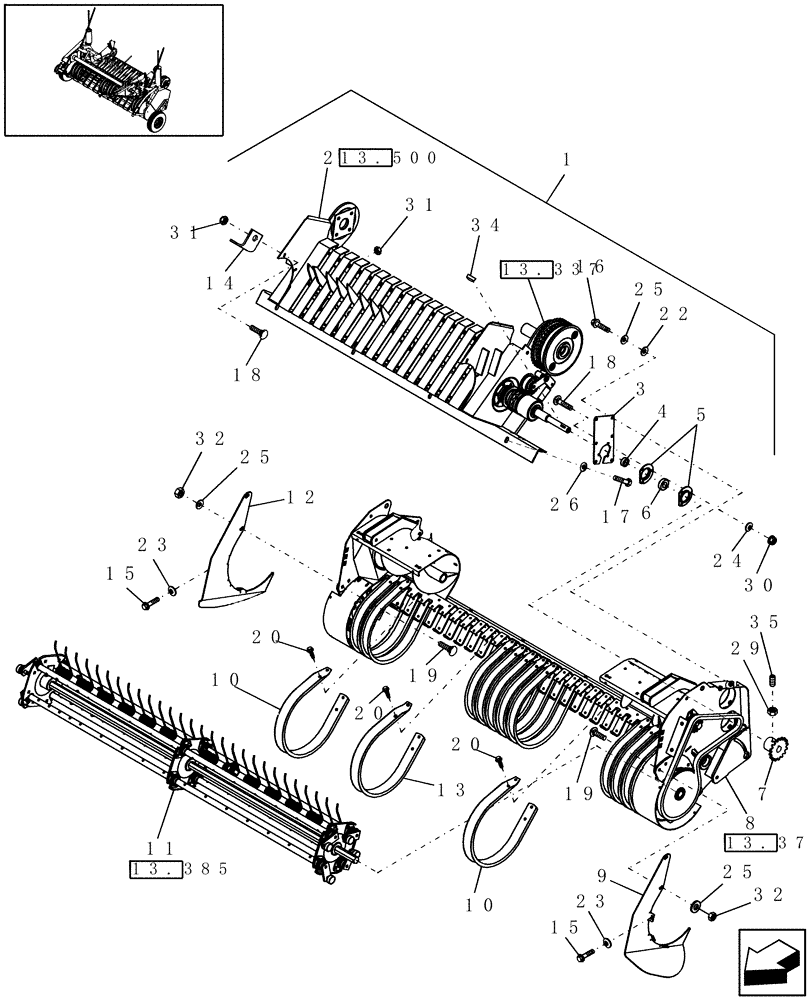

Схема запчастей Case IH RBX453 - (13.336) - 1.8M DUAL CAM WIDE PICKUP & STUFFER FEEDER, EUROPE & R.O.W. (13) - FEEDER
7
18
32
12
15
3
31
20
30
15
19
20
10
11
14
22
13.500
13.370
13.385
13.337
8
35
23
6
16
20
23
25
4
17
24
2
18
34
31
5
25
1
29
26
32
13
19
9
10
25

Артикул

Название

Примечание

Количество

1

87038216

PICK-UP

1.8M Wide Dual Cam & Stuffer Feeder

1шт.

2

0C

ORDER COMPONENTS

Stuffer Feeder, Dry Hay

1шт.

3

87042087

PLATE

1шт.

4

455102R21

COLLAR

Locking, Includes: Set Screw

1шт.

5

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

2шт.

6

214366C91

BALL BEARING,25.40mm ID x 52mm OD

Ball

1шт.

7

87041635

SPROCKET

17T, RC 50, Standard

1шт.

Prior to P.I.N. Y6N016413

1шт.

7

87055082

SPROCKET

18T, RC 50, Optional

1шт.

Increases Pickup Reel Speed

1шт.

7

87602188

SPROCKET

17T, RC 50

1шт.

P.I.N. Y6N016414 & After

1шт.

8

0C

ORDER COMPONENTS

1.8M Dual Cam Wide Pickup

1шт.

9

87053734

GUARD

Flare, LH

1шт.

Optional for Improved Feeding

1шт.

10

86643381

GUARD

10шт.

11

0C

ORDER COMPONENTS

1.8M Dual Cam Spider

1шт.

12

87053732

GUARD

Flare, RH

1шт.

Optional for Improved Feeding

1шт.

13

87055363

GUARD ASSY.

1шт.

14

66463

BRACKET

4шт.

15

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

16

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

6шт.

17

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

8шт.

18

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

11шт.

19

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

15шт.

20

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

108шт.

22

495-21044

WASHER,3/8"

6шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

26

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

29

825-1410

NUT,M10, Cl 8

2шт.

30

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

31

832-46408

NUT,M8 x 1.25, Cl 8

23шт.

34

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

35

300483

SET SCREW,M10 x 25mm

2шт.

36

36686

SPACER

1шт.

37

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

Выбрано товаров: 39
