Запчасти Case IH RBX453 (13.335) - 1.8M DUAL CAM WIDE PICKUP & STUFFER FEEDER, EUROPE & R.O.W. (13) - FEEDER

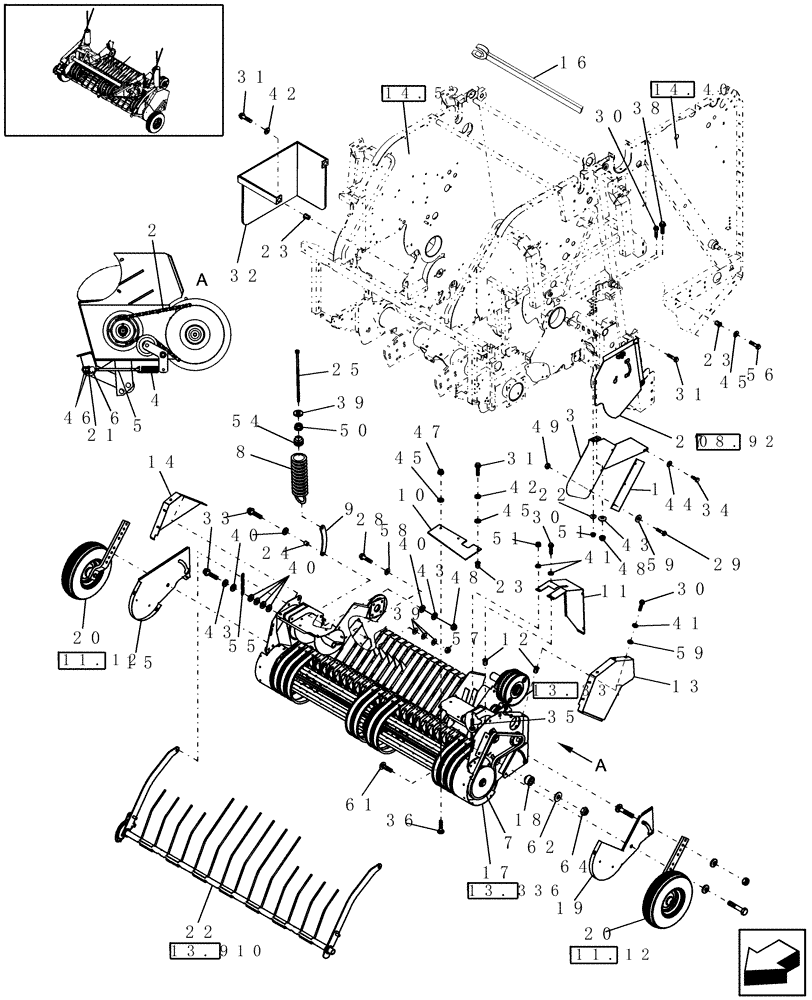

Схема запчастей Case IH RBX453 - (13.335) - 1.8M DUAL CAM WIDE PICKUP & STUFFER FEEDER, EUROPE & R.O.W. (13) - FEEDER
4
42
48
5
31
43
36
25
40
41
51
24
56
15
28
9
19
33
30
43
64
59
32
17
20
42
10
30
14.52
40
44
11.12
11
12
54
30
27
22
23
34
39
45
16
7
49
31
62
21
23
1
45
55
59
31
14
13.336
6
50
48
8
46
57
39
40
2
35
23
58
13
18
41
47
3
45
43
13.337
22
20
51
11.12
14.40
13.910
08.92
38
29
61

Артикул

Название

Примечание

Количество

1

87028357

FLAP

1шт.

2

87378769

CHAIN,60, 64 Links x 19.05mm = 1219.2mm

Roller, RC 60, 64 Pitches, Stuffer Feeder Drive, Includes: (1) Ref. 66

1шт.

3

87026826

SHIELD

Roll

1шт.

4

86566303

SPRING

1шт.

5

86628567

EYEBOLT

G2, 3/8"-16 x 8-3/4"

1шт.

6

87050048

ROCKER

1шт.

7

86552479

CHAIN,RC50, 100 Links x 15.88mm = 1587.5mm

Roller, Standard Duty, Chrome, RC50, 100 Pitches, Includes: Connector Link 86537460

1шт.

8

86630851

SPRING

2шт.

9

87040006

LINK ASSY.

2шт.

11

87055817

SHIELD

1шт.

12

86610198

INSERT,M6 x 1

Threaded, M6

13шт.

13

86626278

SHIELD

Upper, LH

1шт.

14

87055752

SHIELD

Upper, RH

1шт.

15

86625649

SHIELD

Lower, RH

1шт.

16

87041658

OPEN END WRENCH

1шт.

17

0C

ORDER COMPONENTS

1.8M Dual Cam Pickup Stuffer Feeder

1шт.

18

86613200

IDLER,89mm OD x 47.7mm W

Eccentric, Nylon

1шт.

19

86626383

SHIELD

Lower, LH

1шт.

20

0C

ORDER COMPONENTS

Pickup Wheel & Tire

2шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

22

0C

ORDER COMPONENTS

Windguard, Curved

1шт.

23

86610200

THREADED INSERT,M8 x 1.25

M8

6шт.

24

705996

BUSHING

7/8" L

2шт.

25

86632865

BOLT,444.50mm

1/2"-13 x 17-1/2" L

2шт.

27

0C

ORDER COMPONENTS

Shield, Stuffer Feeder

1шт.

28

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

29

87030539

SKIRT

1шт.

30

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

20шт.

31

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

32

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

2шт.

33

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

2шт.

34

275-5458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

1шт.

35

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

38

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

1шт.

39

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

15шт.

40

495-21044

WASHER,3/8"

14шт.

41

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

21шт.

42

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

43

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

44

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

46

425-106

NUT,3/8"-16, Cl 5

2шт.

48

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

49

832-46406

NUT,M6 x 1, Cl 8

3шт.

50

425-288

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

51

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

52

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

53

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

2шт.

54

87020910

SPACER,10.4mm ID x 19mm OD x 8.9mm Thk

2шт.

55

86631510

CHAIN,850.9mm L

Coil, 33 Links

2шт.

56

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

57

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

58

703960

WASHER

1-1/4" OD, Hardened

3шт.

59

495-21031

WASHER,1/4"

11шт.

60

165109

DECAL

Lube Fitting

2шт.

61

811-16050

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 50mm, Cl 8.8

1шт.

62

495-11066

WASHER,5/8", SAE

1шт.

64

832-46416

NUT,M16 x 2, Cl 8

1шт.

65

86631096

SPRING NUT

Spring

2шт.

66

86537477

LINK,19.05mm Pitch

1шт.

Not Illustrated

1шт.

Выбрано товаров: 60
