Запчасти Case IH RBX453 (13.334) - 1.8M DUAL CAM WIDE PICKUP & STUFFER FEEDER, NORTH AMERICA (Jan 4 2007 8:58AM) (13) - FEEDER

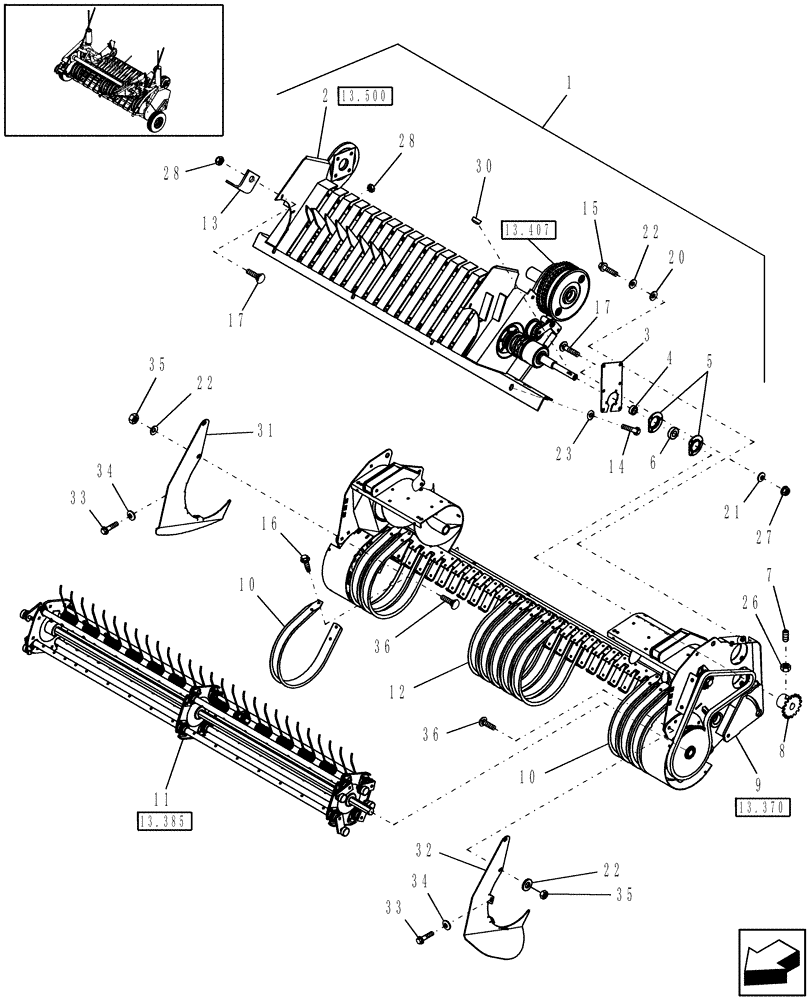

Схема запчастей Case IH RBX453 - (13.334) - 1.8M DUAL CAM WIDE PICKUP & STUFFER FEEDER, NORTH AMERICA (Jan 4 2007 8:58AM) (13) - FEEDER
36
16
26
34
28
5
33
4
1
6
10
22
13.385
13.500
13.407
13.370
32
10
21
13
7
28
17
23
31
11
3
34
15
35
35
12
14
30
22
17
9
8
20
33
2
36
27
22

Артикул

Название

Примечание

Количество

1

87056269

PICK-UP

1.8M Wide Dual Cam & Stuffer Feeder

1шт.

2

0C

ORDER COMPONENTS

Stuffer Feeder

1шт.

3

87042087

PLATE

1шт.

4

455102R21

COLLAR

Locking, Includes: Set Screw

1шт.

5

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

Bearing

2шт.

6

214366C91

BALL BEARING,25.40mm ID x 52mm OD

Ball

1шт.

7

300483

SET SCREW,M10 x 25mm

2шт.

8

86610143

SPROCKET

17T, RC 50, Standard

1шт.

Optional for Improved Feeding

1шт.

11

0C

ORDER COMPONENTS

1.8M, Dual Cam Reel

1шт.

12

87055363

GUARD ASSY.

17шт.

13

66463

BRACKET

4шт.

14

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

8шт.

15

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

16

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

108шт.

17

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

11шт.

20

495-21044

WASHER,3/8"

4шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

23

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

26

825-1410

NUT,M10, Cl 8

2шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

28

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

30

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

31

87053732

GUARD

RH

1шт.

Optional for Improved Feeding

1шт.

32

87053734

GUARD

LH

1шт.

Optional for Improved Feeding

1шт.

33

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

34

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

35

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

36

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

Выбрано товаров: 32
