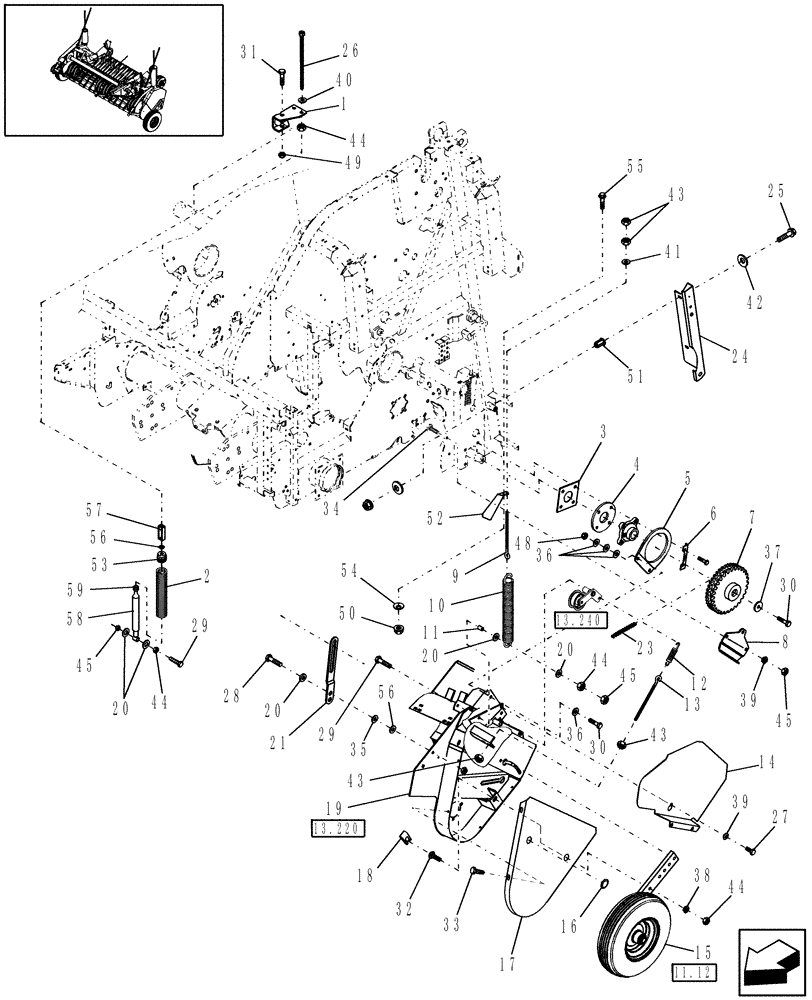

Запчасти Case IH RBX453 (13.210) - 1.5M WIDE PICKUP, FLOATATION SPRING & DRIVE (13) - FEEDER

1

86632879

CHANNEL

1шт.

2

9614538

SPRING

Extension

1шт.

3

86602143

WEAR PLATE

2шт.

4

86602046

PLATE

2шт.

5

86602047

PIVOT PLATE

2шт.

6

86602446

ANGLE

2шт.

7

86626477

SPROCKET,29T / 39T

Double, 29T & 39T

1шт.

8

86624254

STOP

2шт.

9

86628567

EYEBOLT

G2, 3/8"-16 x 8-3/4"

1шт.

10

86512547

SPRING,Extension, 1.94" OD x 13 - 1/8" L

Extension

1шт.

11

86500987

SPACER

1шт.

12

86566303

SPRING

1шт.

13

616723

EYEBOLT

G2, 3/8"-16 x 5"

1шт.

14

86566303

SPRING

1шт.

15

0C

ORDER COMPONENTS

Pickup Wheel & Arm

2шт.

16

87028747

PLUG

Plastic, for 1" Dia. Hole

2шт.

17

86619277

SHIELD

2шт.

18

854719

CLIP

Spring

2шт.

19

86837221

PICK-UP

1.53M Dual Cam, Wide Pickup

1шт.

20

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

5шт.

21

87012266

STRAP

1шт.

22

86637305

LINK

Shock Absorber

1шт.

23

164936

CHAIN

RC60, 3/4"-pitch, 62 Pitches, Includes (1) 25812 Connecting Link

1шт.

24

86630077

SHIELD

1шт.

25

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

26

87015686

BOLT

Cap, HH, G5, 1/2"-13 x 10-1/2"

1шт.

27

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

28

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

29

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

30

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

5шт.

31

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

1шт.

32

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

4шт.

33

381014

SCREW,Flng, M8 x 16mm

HWH, M8 x 1.25 x 16

8шт.

34

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

6шт.

35

287129

SPECIAL WASHER

Spacer, 3/8" ID, .294" Thk, Hardened

1шт.

36

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

16шт.

37

692300

WASHER,13.5mm ID x 50.8mm OD x 7.37mm Thk

2" OD x 3/16" Thk

1шт.

38

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

39

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

7шт.

40

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

1шт.

41

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

Hardened, 3/8"

1шт.

42

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

43

425-106

NUT,3/8"-16, Cl 5

4шт.

44

425-108

NUT,1/2" - 13, Gr 5

7шт.

45

825-1410

NUT,M10, Cl 8

8шт.

47

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

48

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

49

832-46416

NUT,M16 x 2, Cl 8

1шт.

50

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

51

86610200

THREADED INSERT,M8 x 1.25

M8

4шт.

52

87017232

SHIELD

Belleville, M10

1шт.

53

86636647

SPRING NUT

Spring

6шт.

54

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

55

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

56

495-21044

WASHER,3/8"

2шт.

57

86637305

LINK

1шт.

58

86570492

SHOCK ABSORBER

1шт.

59

86509499

JAM NUT,3/8"-16, G2

1шт.
