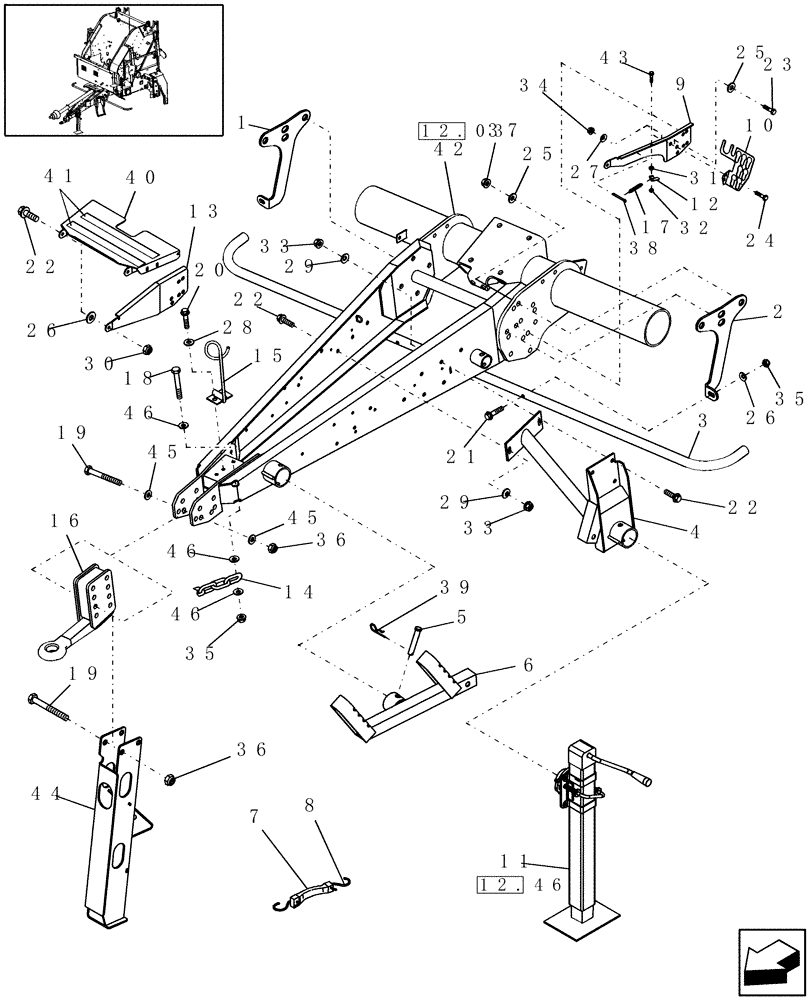

Запчасти Case IH RBX453 (12.06) - HIGH HITCH, EUROPE & R.O.W. (12) - MAIN FRAME

1

87053969

ANGLE

RH

1шт.

Use Existing Hardware & Coupler

1шт.

2

87053968

BRACKET

LH

1шт.

Use Existing Hardware & Coupler

1шт.

3

87010727

BAR

Safety, 2466 mm Lg.

1шт.

Used on Stuffer-Feeder Units in Europe & R.O.W. Only

1шт.

3

87053661

BAR

Safety, 2486 mm Lg.

1шт.

Used on Rotor Units in Europe & R.O.W. Only

1шт.

4

87032220

MOUNTING PARTS

1шт.

5

270135

CLEVIS PIN

1шт.

6

86979534

STEP

1шт.

7

273672

FASTENER

1шт.

8

115680

HOOK

2шт.

9

86640701

ANGLE

1шт.

Prior to P.I.N. Y6N016413

1шт.

10

86616759

COVER PLATE

1шт.

Prior to P.I.N. Y6N016413

1шт.

11

86643129

JACK

Heavy Duty

1шт.

Components are N.S.S.

1шт.

12

86729257

HANDLE

Special, M6 x 1 Threaded

1шт.

Prior to P.I.N. Y6N016413

1шт.

13

86643758

ANGLE

RH

1шт.

Prior to P.I.N. Y6N016413

1шт.

14

196348

CHAIN,823.91mm L

1шт.

15

87042252

SUPPORT

1шт.

16

87023114

HITCH

Ring

1шт.

17

18

SPRING

Extension

1шт.

Prior to P.I.N. Y6N016413

1шт.

18

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

2шт.

19

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

6шт.

20

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

21

844-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 8.8

2шт.

22

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

8шт.

23

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

10шт.

24

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

Prior to P.I.N. Y6N016413

1шт.

25

64053

WASHER,16.9mm ID x 38.55mm OD x 4mm Thk

Special, Hardened

18шт.

26

495-21050

WASHER,7/16"

2шт.

Prior to P.I.N. Y6N016413

1шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

Prior to P.I.N. Y6N016413

1шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

29

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

Prior to P.I.N. Y6N016413

1шт.

29

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

P.I.N. Y6N016414 & After

1шт.

30

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

Prior to P.I.N. Y6N016413

1шт.

31

86509499

JAM NUT,3/8"-16, G2

1шт.

32

832-46406

NUT,M6 x 1, Cl 8

1шт.

Prior to P.I.N. Y6N016413

1шт.

33

9804279

FLANGE NUT,Hex, M12, Cl 8

6шт.

Prior to P.I.N. Y6N016413

1шт.

33

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

P.I.N. Y6N016414 & After

1шт.

34

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

Prior to P.I.N. Y6N016413

1шт.

35

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

36

832-46416

NUT,M16 x 2, Cl 8

6шт.

37

832-41416

NUT,M16 x 2, Cl 10

8шт.

38

432-1212

COTTER PIN,3/16" x 3/4"

1шт.

Prior to P.I.N. Y6N016413

1шт.

39

129365

COTTER PIN

.094" x 2-5/16"

1шт.

40

86643741

COVER

1шт.

Prior to P.I.N. Y6N016413

1шт.

Illustrated

1шт.

40

87058501

STEP

1шт.

Prior to P.I.N. Y6N016413

1шт.

Not Illustrated

1шт.

41

263636

ANTI-SKID STRIP

Safety, 4" x 55"

2шт.

42

87016978

HITCH ASSY

1шт.

43

844-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

1шт.

Prior to P.I.N. Y6N016413

1шт.

44

NSS

NOT SOLD SEPARAT

Shipping Bracket

1шт.

45

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Plated

8шт.

46

495-21044

WASHER,3/8"

6шт.
