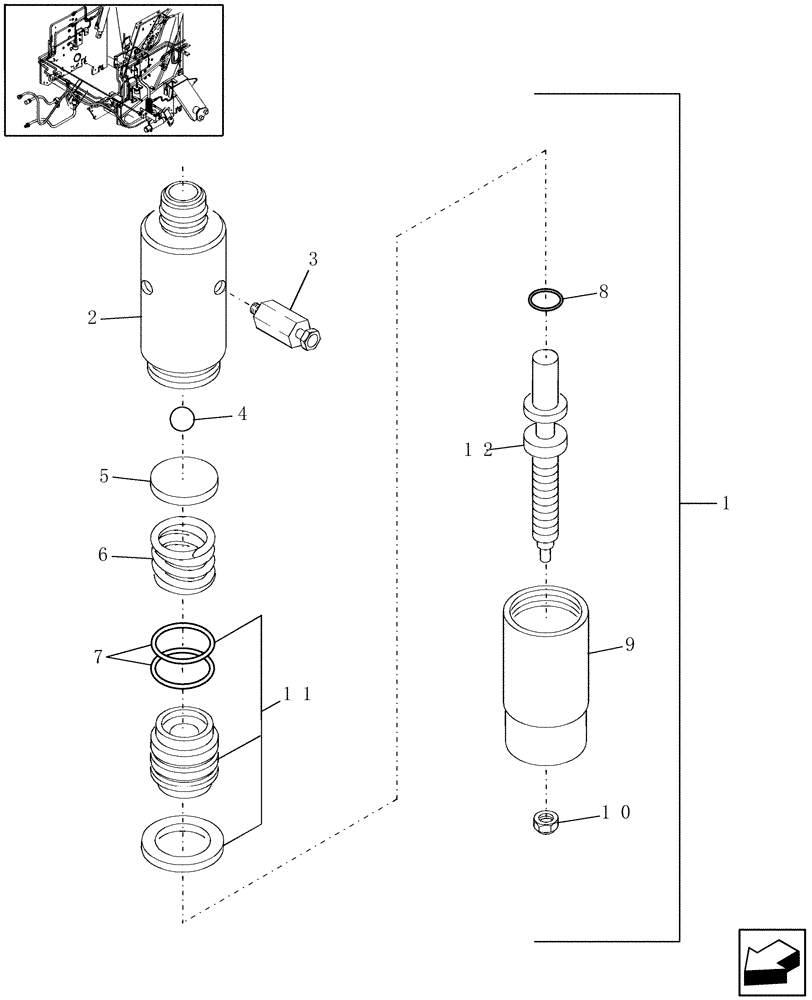

Запчасти Case IH RBX452 (09.11[1]) - LUBRICATION, OILER PUMP, PRIOR TO P.I.N. HBJ039359 (09) - LUBRICATION

1

9822517

HYDRAULIC VALVE

Lube Oiler

1шт.

2

9847026

HOUSING

Main

1шт.

3

86511267

HYD CONNECTOR

Check Valve

4шт.

4

86520978

BALL

Steel, 7/8"

1шт.

5

9847030

FILTER

Screen

1шт.

6

9847028

SPRING,Compression, 0.94" OD x 2.81" L

1шт.

7

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

2шт.

8

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

9

9847027

CAP

End Cap

1шт.

10

87309

JAM NUT,Jam, 1/2"-20, G2

1шт.

11

9847029

KIT

Piston Repair

1шт.

12

NSS

NOT SOLD SEPARAT

Plunger

1шт.
