Запчасти Case IH RBX452 (08.90) - SHIELDS, NET (08) - SHEET METAL/DECALS

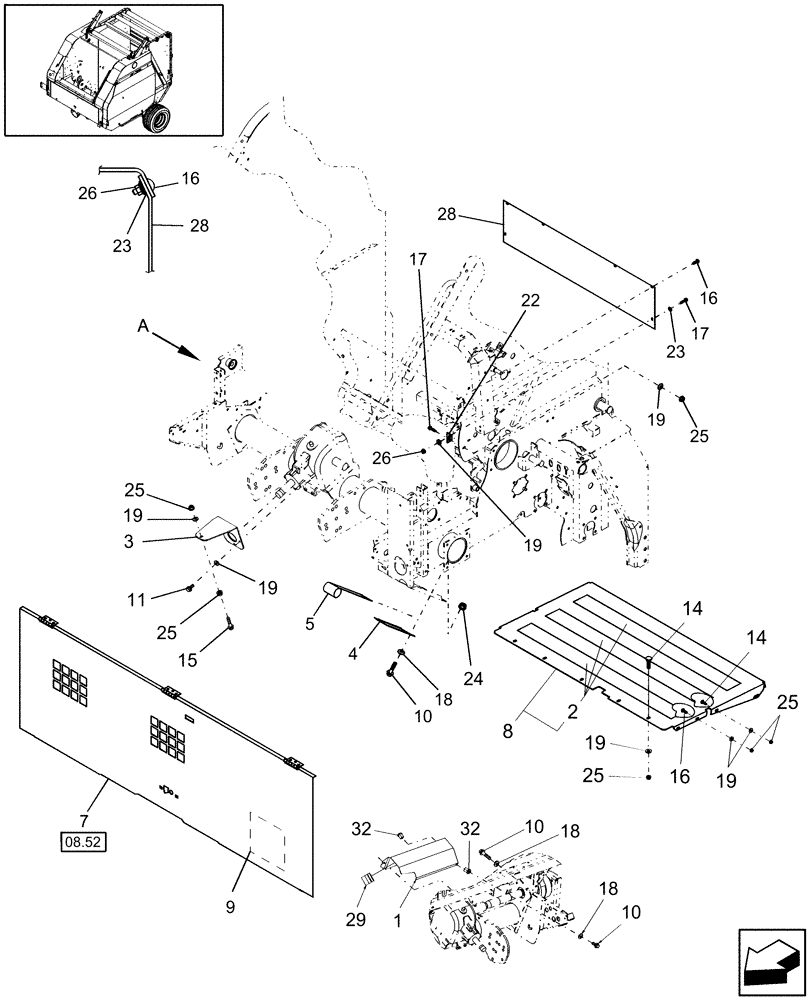

Схема запчастей Case IH RBX452 - (08.90) - SHIELDS, NET (08) - SHEET METAL/DECALS
25
3
10
16
2
25
28
23
15
26
4
19
14
19
25
10
24
16
19
18
17
17
14
32
16
9
8
1
19
25
29
22
18
11
08.52
19
19
10
23
7
5
32
26
18
28
25

Артикул

Название

Примечание

Количество

1

87038559

SHIELD

Includes: Ref. 30

1шт.

North America Only

1шт.

Prior to P.I.N. HBJ0006104

1шт.

1

86636402

SHIELD

1шт.

Europe & R.O.W.

1шт.

Prior to P.I.N. HBJ0006104

1шт.

1

87037949

SHIELD

Includes: Ref. 30

1шт.

North America Only

1шт.

P.I.N. HBJ0006104 & After

1шт.

1

87028217

SHIELD

1шт.

Europe & R.O.W.

1шт.

P.I.N. HBJ0006104 & After

1шт.

2

86643977

ANTI-SKID STRIP,4” x 40”, Black

1шт.

3

86617873

ANGLE

1шт.

4

86631554

CHANNEL

1шт.

5

87026611

SHEET METAL

Stuffer Tool

1шт.

7

87014357

DOOR ASSY.

Net, Includes: Decals

1шт.

North America Only

1шт.

7

86631676

DOOR ASSY.

Net

1шт.

Europe & R.O.W.

1шт.

9

86642356

DECAL

Net Routing

1шт.

10

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

6шт.

11

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

14

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

9шт.

15

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

16

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

9шт.

17

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

21шт.

22

86626584

BRACKET

2шт.

23

495-21038

WASHER,5/16"

7шт.

25

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

17шт.

26

832-46408

NUT,M8 x 1.25, Cl 8

7шт.

28

87018459

SHIELD,318mm W x 1176mm L x 3.175mm Thk, Rubber

1шт.

29

87019330

RUBBER SEAL

10'

1шт.

30

87037375

WARNING DECAL

Net Knife, English

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

30

87037730

DECAL

WARNING, Net Knife, French

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary

1шт.

32

86610198

INSERT,M6 x 1

Threaded, M6

2шт.
