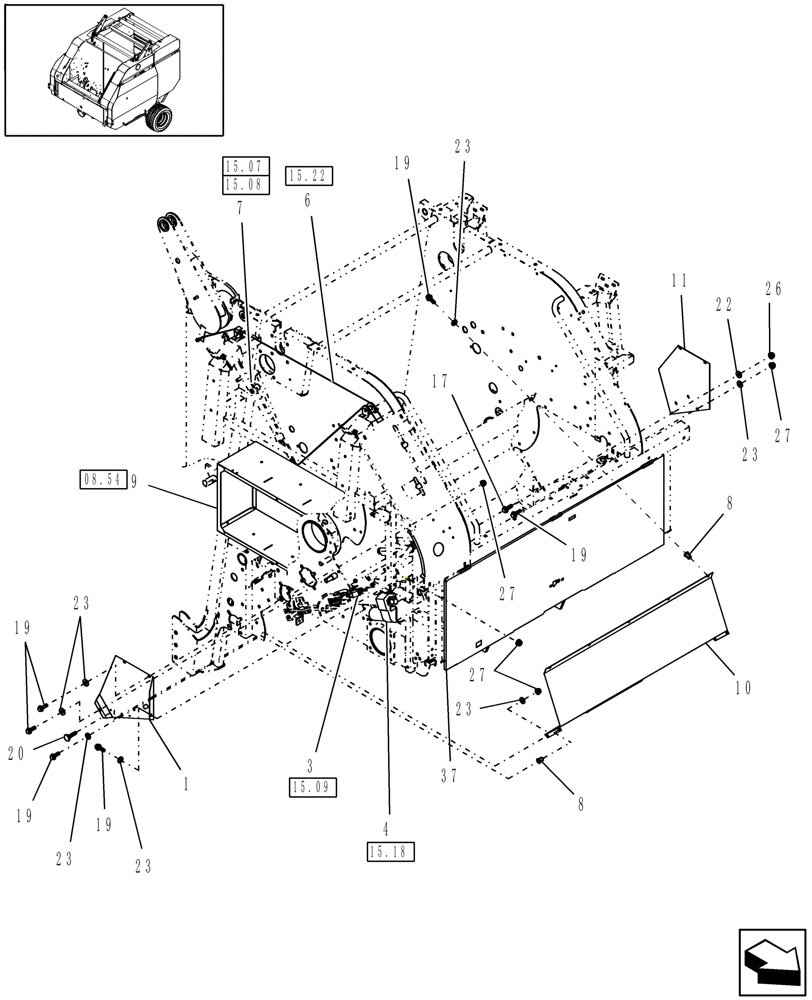

Запчасти Case IH RBX452 (08.58) - SHIELDS, ELECTRIC TWINE WRAP, FRANCE, PRIOR TO P.I.N. HBJ039346 (08) - SHEET METAL/DECALS

1

86632619

SHEET

RH

1шт.

RBX452

1шт.

1

86637364

SHEET

RH

1шт.

RBX462

1шт.

3

0C

ORDER COMPONENTS

Twine Counter

1шт.

4

0C

ORDER COMPONENTS

Electric Twine Wrap

1шт.

6

0C

ORDER COMPONENTS

Bale Size Indicator

1шт.

7

0C

ORDER COMPONENTS

Twine Wrap Trip

1шт.

8

86610200

THREADED INSERT,M8 x 1.25

M8

8шт.

9

0C

ORDER COMPONENTS

Twine Box

1шт.

10

0C

ORDER COMPONENTS

Shield

1шт.

11

86632618

SHEET

LH

1шт.

RBX452

1шт.

11

86637363

SHEET

LH

1шт.

RBX462

1шт.

13

0C

ORDER COMPONENTS

Wire Harness

1шт.

17

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

19

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

14шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

1шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

15шт.

26

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

7шт.

37

87014355

DOOR ASSY.

Includes: Decals

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.
