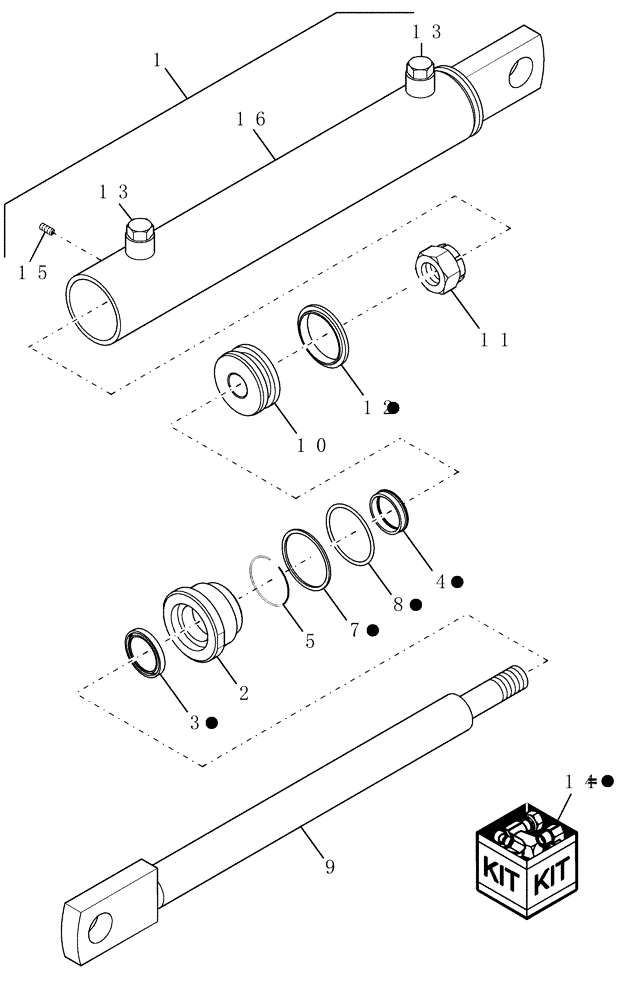

Запчасти Case IH RBX452 (07.27[1]) - HYDRAULICS CYLINDER, TAILGATE LIFT, 86628749 (07) - HYDRAULIC SYSTEM

1

86628749

HYDRAULIC CYLINDER

Tailgate Lift

1шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

2

785811

CYLINDER HEAD

1шт.

3

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

4

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1.250" ID x 1.500" OD

1шт.

5

512016

SNAP RING

Int, 2.125"

1шт.

7

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

8

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

9

86628755

PISTON ROD

1шт.

10

9827615

PISTON

1шт.

11

280724

LOCK NUT,3/4" - 16

1шт.

12

86553483

SEAL

3 Piece, Piston

1шт.

13

76349

PLUG,9/16" - 18 ORB

2шт.

14

86511584

REPAIR KIT

1шт.

15

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

16

NSS

NOT SOLD SEPARAT

Cylinder Barrel

1шт.
