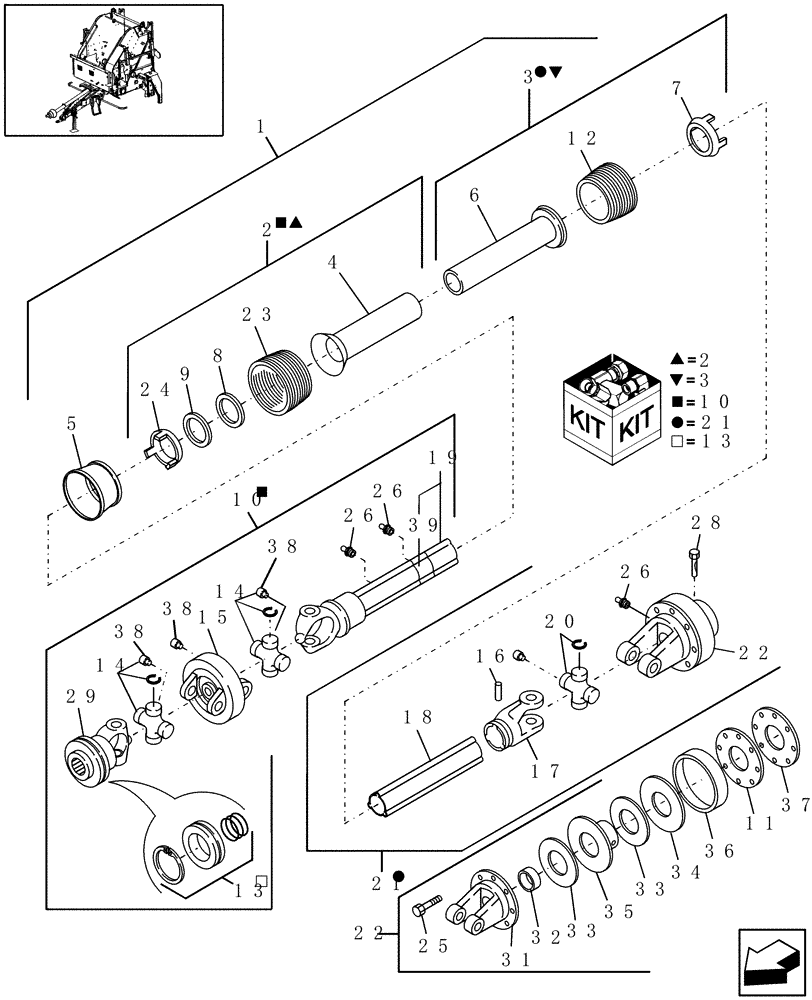

Запчасти Case IH RBX452 (01.80) - POWER TAKE OFF W/ SLIP CLUTCH, 540 RPM, EUROPE & R.O.W. (01) - POWER TAKE OFF

1

86604847

PTO

540 RPM, w/ Slip Clutch

1шт.

2

87012753

KIT

Front

1шт.

3

87012754

KIT

Rear

1шт.

4

NSS

NOT SOLD SEPARAT

Cone, Outer

1шт.

5

NSS

NOT SOLD SEPARAT

Shield

1шт.

6

NSS

NOT SOLD SEPARAT

Cone, Inner

1шт.

7

86625852

RING NUT

1шт.

8

86625851

RING NUT

1шт.

9

NSS

NOT SOLD SEPARAT

Cone

1шт.

10

87012748

PTO SHAFT

Front, W/ Shield

1шт.

11

86979205

BELLEVILLE SPRING

1шт.

12

NSS

NOT SOLD SEPARAT

Cover Band

1шт.

13

86625855

KIT

Ball Collar

1шт.

14

86625850

U-JOINT SPIDER

2шт.

15

86625844

BODY

1шт.

16

86625846

PIN

Spring

1шт.

17

86625848

YOKE

1шт.

18

87012729

TUBE,1175 mm L

Drive

1шт.

19

87012730

TUBE,1217.50 mm L

1шт.

20

86625842

BEARING ASSY

1шт.

21

87012750

PTO SHAFT

Rear, Includes: Shield & Clutch

1шт.

22

86625849

PTO CLUTCH

Slip

1шт.

23

NSS

NOT SOLD SEPARAT

Cover

1шт.

24

86625854

RING NUT

1шт.

25

87012736

BOLT AND NUT

Includes: Nut

8шт.

26

NSS

NOT SOLD SEPARAT

Grease Fitting

2шт.

27

NSS

NOT SOLD SEPARAT

Decals

1шт.

28

86625865

KIT

Tapered

1шт.

29

86625841

YOKE

1шт.

30

86979198

CHAIN,229mm L

Safety

1шт.

31

86625860

CLUTCH PLATE

1шт.

32

86984909

BUSHING

1шт.

33

86625862

DISC

2шт.

34

86625863

THRUST PLATE

1шт.

35

86625864

HUB

1шт.

36

86625869

SPACER

1шт.

37

86625868

SPRING

1шт.

39

849471

DANGER DECAL

English

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

39

849482

DANGER DECAL

French

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary

1шт.

40

849472

DANGER DECAL

English

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

40

849483

DANGER DECAL

French

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary

1шт.
