Запчасти Case IH RBX452 (88.088.01) - DIA KIT, CNH 5FT FRONT TWINE BOX KIT (18) - ACCESSORIES

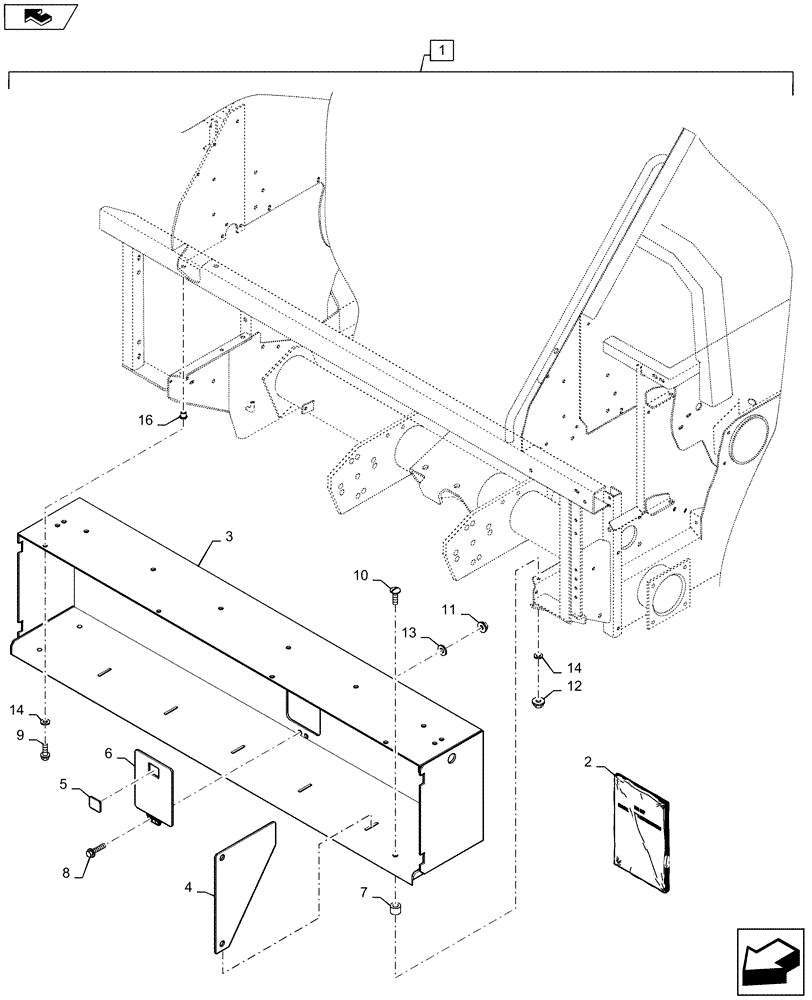

Схема запчастей Case IH RBX452 - (88.088.01) - DIA KIT, CNH 5FT FRONT TWINE BOX KIT (18) - ACCESSORIES
5
4
9
1
6
3
home
14
7
16
13
2
12
8
10
14
11

Артикул

Название

Примечание

Количество

1

87681837

DIA KIT, HARVESTER

CNH 5 Foot Front Twine Box, Incl 2 - 16

1шт.

2

87682073

INSTRUCTION

CNH Front Twine Box Kit

1шт.

3

87681836

TWINE BOX

5 Foot Weld Assembly Dark Gray

1шт.

4

86551339

DIVIDER

Black

5шт.

5

632732

LATCH

Slide

1шт.

6

87045140

DOOR ASSY.

Weld Dark Gray

1шт.

7

86977986

WASHER

4шт.

8

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

9

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

10

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

12

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

15

87016348

5 Foot Front Twine Box Ship Group

1шт.

16

86610200

THREADED INSERT,M8 x 1.25

4шт.

Выбрано товаров: 16
