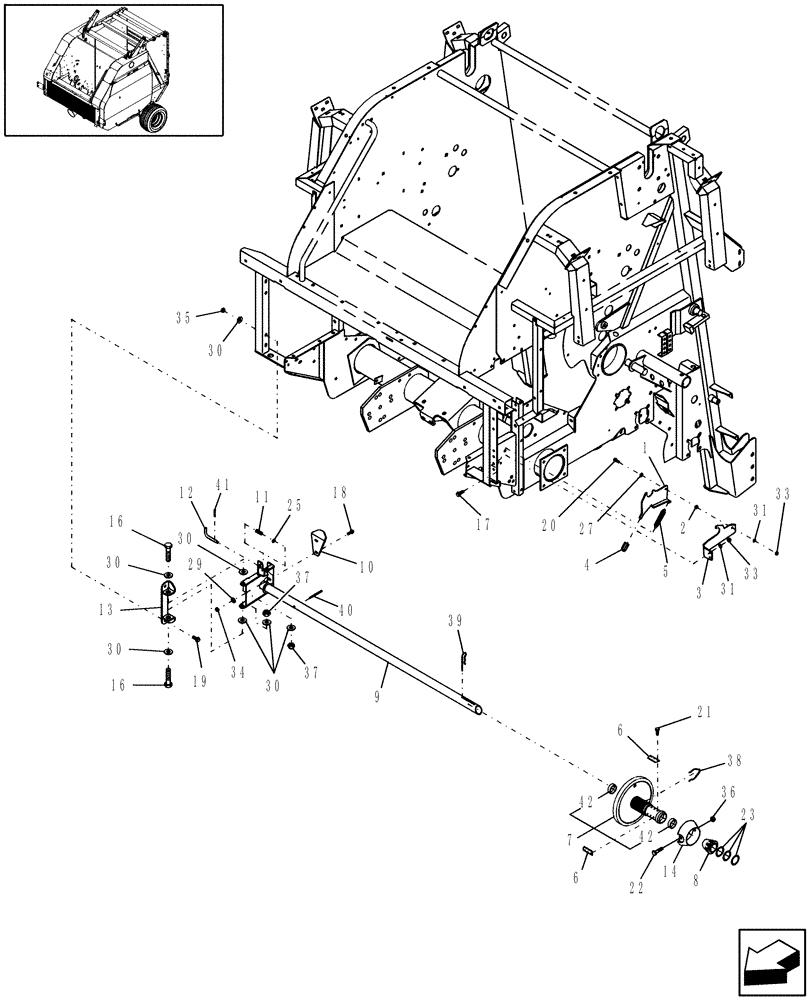

Запчасти Case IH RBX452 (15.65) - NET ROLL TUBE (15) - KNOTTER /WRAPPER

1

86622528

LATCH

1шт.

2

859896

SPACER

1шт.

3

86601736

RAMP

1шт.

4

86516827

HANDLE

1шт.

5

38668

SPRING

1шт.

6

86627923

STRIP

Net

4шт.

7

86609782

BRAKE DRUM

1шт.

8

86540330

GUIDE

1шт.

9

86613989

TUBE

1шт.

10

86621727

ANGLE

1шт.

11

226829

SPRING,Compression, 19.05mm OD x 77.72mm OD

1шт.

12

854974

HANDLE

1шт.

13

86627445

PIVOT

1шт.

14

87016039

CONE

1шт.

16

413-16136

BOLT,Hex, 1" - 8 x 8-1/2", Gr 5

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

18

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

19

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

2шт.

20

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

21

86641297

SELF-TAP SCREW,Phillips Drive, Pan HD, #8 - 18 x 3/16"

#8 x 3/16"

12шт.

23

87016189

WASHER,51.18mm ID x 63.5mm OD x 1.65mm Thk

Plated, 16 Gauge x 2.015" ID x 2-1/2" OD

3шт.

24

86611401

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

.060" Tk.

2шт.

25

86622500

WASHER,13.49mm ID x 22.2mm OD x 1.36mm Thk

Spacer

1шт.

27

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16" ID x .065" Thk

1шт.

29

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

30

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

31

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

33

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

34

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

35

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

38

86613336

COTTER PIN

1шт.

39

86601285

COTTER PIN,26mm OD x 118.5mm L

1шт.

41

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

42

86617942

BUSHING,48.96mm ID x 57.23mm OD x 19.1mm L

2шт.
